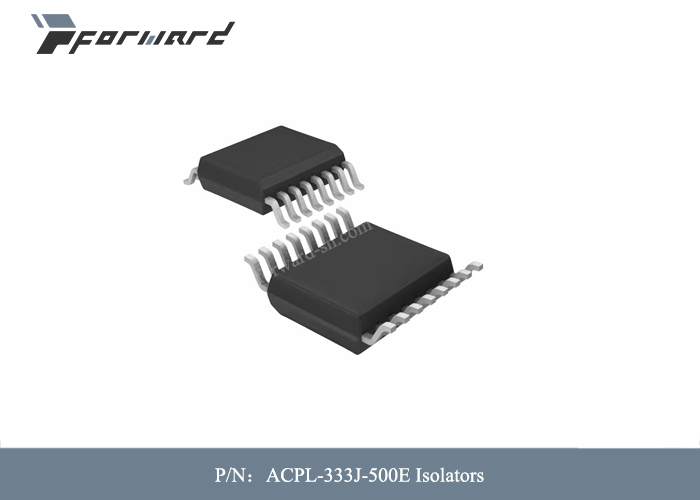

Aviation Parts ACPL-333J-500E Toggle Switches Isolators Voltage Isolation 5000Vrms

Aviation Parts ACPL-333J-500E Toggle Switches Isolators Voltage Isolation 5000Vrms

Descriptions of Aviation Parts:

The ACPL-333J is an advanced 2.5 A output current, easyto-use, intelligent gate drivers which make IGBT VCE fault protection compact, affordable, and easy-to implement. Features such as integrated VCE detection, under voltage lockout (UVLO), “soft” IGBT turn-off, isolated open collector fault feedback, active Miller clamping and Autofault reset provide maximum design flexibility and circuit protection.

The ACPL-333J contains a AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage. ACPL-333J are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The voltage and current supplied by these optocouplers make them ideally suited for directly driving IGBTs with ratings up to 1200 V and 150 A. For IGBTs with higher ratings, the ACPL-333J can be used to drive a discrete power stage which drives the IGBT gate. The ACPL-333J have an insulation voltage of VIORM = 1414 VPEAK.

Features of Aviation Parts:

• 2.0 A minimum peak output current

• 250 ns maximum propagation delay over temperature range

• 1.7A Active Miller Clamp.Clamp pin short to VEE if not used

• Desaturation Detection

• Under Voltage Lock-Out Protection (UVLO) with Hysteresis

• Open Collector Isolated fault feedback

• “Soft” IGBT Turn-off

• Automatic Fault Reset after fixed mute time , typical 26ms

• Available in SO-16 package

• 100 ns maximum pulse width distortion (PWD)

• 50 kV/µs minimum common mode rejection (CMR) at VCM = 1500 V

• ICC(max) < 5 mA maximum supply current

• Wide VCC operating range: 15 V to 30 V over temperature range

• Wide operating temperature range: –40°C to 105°C

• Safety approvals:

UL approval, 5000 VRMS for 1 minute, CSA approval,

IEC/EN/DIN-EN 60747-5-5 approval VIORM = 1414 VPEAK
