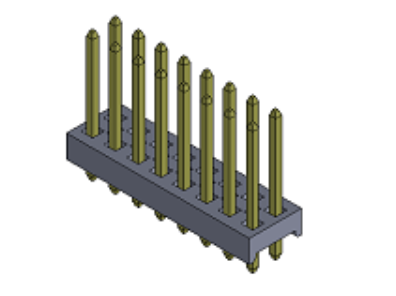

4.2mm Pitch Conn PCB Header Connectors DIP Header Tin Plated PA6T

4.2mm pitch conn header pin header DIP straight dual row tin plated PA6T automotive ECU

Specifications:
Material And Finish:
Insulator:Nylon 66 UL94V-0 Color:White
Contact:Brass
Plated:See Ordering Information


Rating:
Current Rating:9.0 Amp
Voltage Rating:500V AC/DC
Operating Temperature Range:-25°~+105°C


Electrical:
Contact resistance:10m Ohm Max
Insulator resistance:1000M ohm min.
Withstanding Voltage:1500V AC/Minute

Shenzhen Shinelinkconn Technology Co., Ltd., established in 2009, is specialized in the development, manufacturing and marketing of a variety of connectors, wire harness and cable assembly. Our products are widely applied in industrial, automation, automotive, medical, communications, battery/motor/electric control system of new energy vehicles and photovoltaic inverter system etc.

Our main products include:

· Automotive connectors, such as MQS pin panels and sockets 2.54 and 2.0mm pitch, AMPSEAL series 4.0mm pitch male headers and housings,

. Automobile or car light connectors, including 4.14mm, 2.0mm, 3.0mm, 3.96mm and 4.2mm pitch connectors;

. FAKRA and HSD connector;

. Telecom connectors, such as high speed connectors, hard metric connector, champ connectors, delander connectors,

. Industrial connectors, including SCSI, pull-push connectors, waterproof connectors;

· Cables and wiring harnesses: Wiring harness for Industrial equipment, Medical equipment, electric vehicle (EV), communication cables,

· Outdoor fiber assembly and adapters, ODVA and Fullaxs;

We are dedicated to be the ultimate one-stop supplier for the commodities of connectors and wire harness from research and development, fully automated production, intelligent production cells to test validation, being committed to providing highly flexible integrated solutions.

Shinelinkconn sticks to its core values: “Complete each matter attentively; treat everyone with sincerity” and carries out the management philosophy of “professional focus and harmony coexistence”. We are committed to sustainable growth and development of corporate brand by creating and providing excellent value to its customers, teams, partners and society.
