32-Bit MCU TMS320F28334ZAYA 256KB Flash C2000 Real-Time Microcontrollers NFBGA-179

32-Bit MCU TMS320F28334ZAYA 256KB Flash C2000 Real-Time Microcontrollers NFBGA-179

Product Description Of TMS320F28334ZAYA

TMS320F28334ZAYA C2000™ real-time microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes the Premium performance MCUs and the Entry performance MCUs.

Specification Of TMS320F28334ZAYA

Features Of TMS320F28334ZAYA

• High-performance static CMOS technology
• Up to 150MHz (6.67ns cycle time)
• 1.9V/1.8V core, 3.3V I/O design
• High-performance 32-bit CPU (TMS320C28x)
• Six-channel DMA controller (for ADC, McBSP, ePWM, XINTF, and SARAM)
• 16-bit or 32-bit External Interface (XINTF)
• On-chip memory
• F28335, F28333, F28235: 256K×16 Flash, 34K×16 SARAM
• F28334, F28234: 128K×16 Flash, 34K×16 SARAM
• F28332, F28232: 64K×16 Flash, 26K×16 SARAM
• 1K×16 OTP ROM
• Boot ROM (8K×16)
• Clock and system control
• GPIO0 to GPIO63 pins can be connected to one of the eight external core interrupts
• Peripheral Interrupt Expansion (PIE) block that supports all 58 peripheral interrupts
• Enhanced control peripherals
• Three 32-bit CPU timers
• 12-bit ADC, 16 channels
• Up to 88 individually programmable, multiplexed GPIO pins with input filtering
• JTAG boundary scan support
• Advanced emulation features
• Development support includes
• ANSI C/C++ compiler/assembler/linker
• Code composer studio IDE
• DSP/BIOS and SYS/BIOS
• Digital motor control and digital power software libraries
• Low-power modes and power savings
• Endianness: Little Endian

Applications Of TMS320F28334ZAYA

• Advanced driver assistance systems (ADAS)
• Medium/short range radar
• Building automation
• HVAC motor control
• Traction inverter motor control
• Factory automation & control
• Automated sorting equipment
• CNC control
• Grid infrastructure
• Central inverter
• String inverter
• Hybrid, electric & powertrain systems
• Inverter & motor control
• On-board (OBC) & wireless charger
• Motor drives
• AC-input BLDC motor drive
• Servo drive control module
• Power deliveryIndustrial AC-DC

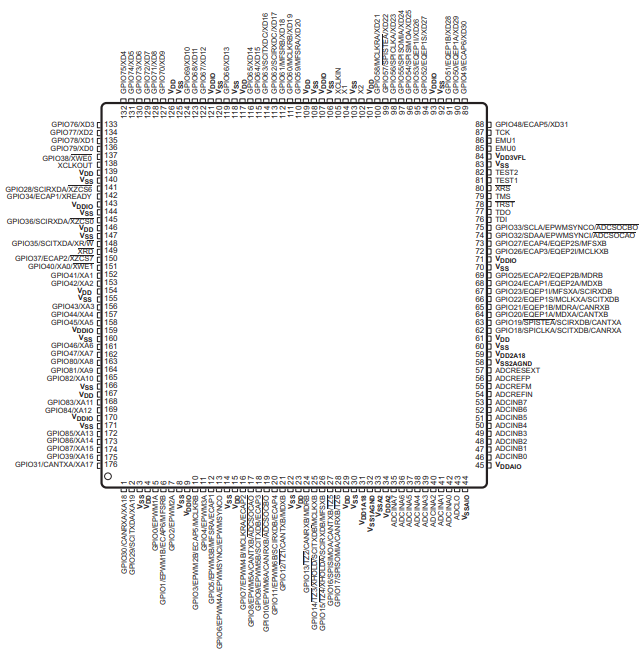

Pin Diagrams Of TMS320F28334ZAYA
