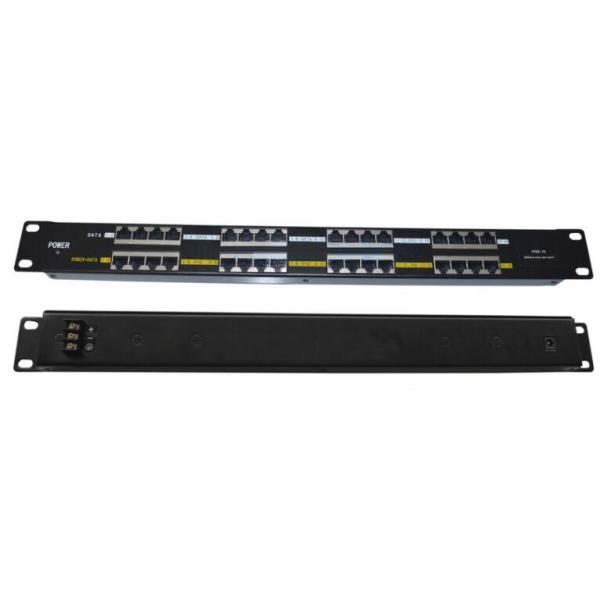

16A Max 16 Port PoE Injector Passive POE Power Supply 1U Rack Mount
16-Port 1U Rack Mount Passive PoE Injector
Advantages:
► Panel 16 integrating passive POE injector suitable for powering up to 16 devices.
► The RJ45 connectors on one side are connected Ethernet ports with no power (switch) on the opposite side of the device used to connect power for Ethernet cable.
► Are used to power the two unused pairs of the Ethernet cable
► Power couples: 4.5 (positive pole) / 7.8 (negative pole)
► 19” 1U Rack Mount
Specifications
| Type | Passive POE power supply |
| Input Voltage | 12-57Vdc |
| Input Current | 16A max |
| Input Type | Passive |
| Output Voltage / Power | 12-57Vdc, 1.5A max |
| Output type | Single output 16*RJ45 connector ---POE 16*RJ45 connector ----LAN |
| Ethernet speed | 10/100Mbps Pin 45+78-, 2 pairs |
| Internet standard | NO Compliance IEEE802.3AF/802.3AT |
| Material | Metal |
| Approval | CE/ROHS/FCC |
| Warranty | 2 year |
| Output Ripple | 1% Max |
| Efficiency | ≥80% |
| Response Time | <1ns |
| Combined Load Regulation | ±3% |
| Combined Line Regulation | ±5% |
| LED indicator | Power on, Green (With Plastic enclosure) |
| Operating Temp | 0 to 40℃ (32 to 104℉) |
| Storage Temp | (-)20 to 85 ℃ ( -22 to 158 ℉) |
| Dimension (LxWxH) | 482.6mm * 44.3mm * 25mm |
| Weight | 5kg |
| Operating Humidity | 10~ 90% Non-condensing |
This Power over Ethernet module allows you to power up to 16 devices remotely over Ethernet wiring up to 328 ft (100 meters) away. Add PoE ability to any Ethernet switch or router. Use this device to inject power into the CAT-5, CAT-6 or CAT-7 cable. Standard Ethernet uses 2 of the 4 pairs, passive POE uses unused pins 4/5 for plus power, and 7/8 for ground. Many popular devices like Cameras, IP Phones, WiFi Access Points use this method to centralize the power source.
Ordering Information
| LNK-POE-16P | 16-Port 10/100M Passive PoE Power Supply: 16*RJ45 connector (POE) + 16*RJ45 connector (LAN), Input Voltage-12~57V, Output Voltage-12-57VDC 1.5A max |
|
