| Categories | Split Core Current Transducer |
|---|---|
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | chieful |
| Model Number: | CS500EK1 |
| MOQ: | 1-499 Pieces |
| Price: | Negotiable |
| Usage: | Magnetic Sensor |
| Theory: | Hall Sensor |
| Output: | Analog Sensor |
| Color: | Black |
| Certificate: | CE RoHS ISO9001 |
| Capacity: | 10000/month |
| Warranty: | 5 years |

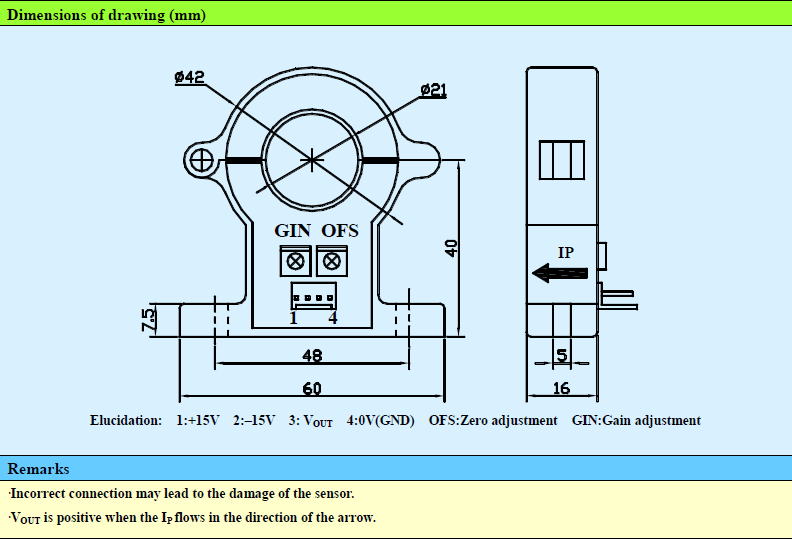

| diameter: | 21mm |
| weight: | 66g |
| Selling Units: | Single item |
| Single package size : | 23X18X7 cm |
| Single gross weight: | 0.066 kg |
| Package Type: | CARTON |
Profile:
Open loop Hall current transducer RCS09D series are for the measurement of currents: DC, AC, pulse and irregular wave currents with galvanic isolation between the primary circuit and the secondary circuit.
Hall effect sensor CS500EK1
| Electrical characteristics | ||||||||
| Type | CS050EKI | CS100EKI | CS200EKI | CS800EKI | CS400EKI | CS500EKI | ||
| IPN | Primary nominal input current | 50 | 100 | 200 | 300 | 400 | 500 | A |
| IP | Measuring range of primary current | 0~±100 | 0~±200 | 0~±400 | 0~±600 | 0~±800 | 0~±1000 | A |
| VOUT | Nominal output voltage | 4±1% | V | |||||
| VC | Supply voltage | ±15(±5%) | V | |||||
| IC | Current consumption | VC=±15V <20 | mA | |||||
| VD | Insulation voltage | AC/50Hz/1min 5 | kV | |||||
| εL | Linearity | <1 | %FS | |||||
| VO | Offset voltage | TA=25℃ <±25 | mV | |||||
| VOM | Residual voltage | IPN→0 <±20 | mV | |||||
| VOT | Thermal drift of V0 | IP=0 TA=–25~+85℃ <±1 | mV/℃ | |||||
| TR | Response time | ≤7 | μs | |||||
| f | Frequency bandwidth(-3dB) | DC~20 | kHz | |||||
| TA | Ambient operating temperature | –25~+85 | ℃ | |||||
| TS | Ambient storage temperature | –40~+100 | ℃ | |||||
| RL | Load resistance | ≥10 | KΩ | |||||
| Standard | Q/3201CHGL02-2007 | |||||||
CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.
Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more
than 10years.
Q2: When is the delivery date?
A: 7-10 working days in general.
Q3: Could you send me a quotation?
A: Sure.
Q4: How about the after service?
A: Five years warranty.
Q5: What about the shipping package?
A: Anti-static package and carton.
|
