Split Core 4V Output Open Loop Current Transducer CS5000KA 104 X 36 mm

Categories Split Core Current Transducer
Brand Name: chieful
Model Number: CS5000KA
Certification: CE,Rohs,ISO9001
Place of Origin: China
MOQ: 1PC
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10000pcs/month
Delivery Time: 7 Days
Packaging Details: Carton
color: black
weight: 960g

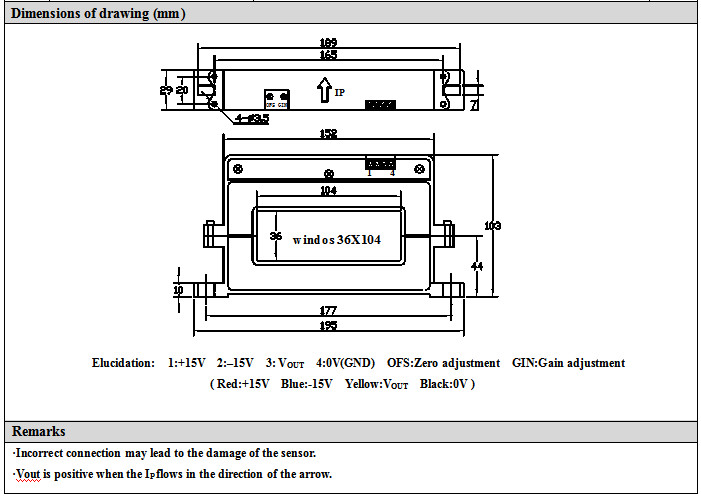

window size: 104*36mm
linearity: <1%FS
Capacity: 10000pcs/month
Power Supply: +/-12V ~+/-15V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Split Core 4V Output Open Loop Current Transducer CS5000KA 104 X 36 mm

Split Core 4V Output Open Loop Current Transducer CS5000KA 104 X 36 mm


Electrical characteristics
TypeCS600KACS1000KACS2000KACS3000KACS5000KA
IPNPrimary nominal input current6001000200030005000A
IPMeasuring range of primary current0~±12000~±20000~±40000~±60000~±7500A
VOUTNominal output voltage4±1%V
VCSupply voltage±12~±15(±5%)V
ICCurrent consumptionVC=±15V <25mA
VDInsulation voltageAC/50Hz/1min 6kV
εLLinearity<1%FS
VOOffset voltageTA=25℃ <±25mV
VOMResidual voltageIPN→0 30mV
VOTThermal drift of V0IP=0 TA=25~+85℃ <±1mV/℃
TRResponse time7μs
fFrequency bandwidth(-3dB)DC~3kHz
TAAmbient operating temperature25~+85
TSAmbient storage temperature40~+100
RLLoad resistance≥10KΩ
StandardQ/3201CHGL02-2016
