OEM / ODM : Multi Cavity Injection Mold & Transparent mini mainboard bracket (1*4) No.22685

Categories Multi Cavity Injection Mold
Brand Name: Chitwing
Model Number: Mobile Phone
Certification: ISO 9001:2015
Place of Origin: China
MOQ: 1set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 200 set/month
Delivery Time: 30 day(s)
Packaging Details: The mold is packaged with a wooden box and placed on a wood pallet.
Size: 320.000 X 350.000 X 316.000(mm)
IMM Tonnage: 80(T)
Mold Weight: 215.81(KG)
Lifters per cavity: 4
Surface Finishing: VDI 30#
Standard: LKM
Product material: PC+ABS
Design software: 3D-UG 4.0/ 2D-CAD
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

OEM / ODM : Multi Cavity Injection Mold & Transparent mini mainboard bracket (1*4) No.22685

Transparent mini mainboard bracket (1*4)

No.22685


Mold standard:
LKM
Gate:
Pin point gate

Mold type
Three-plates mold
IMM tonnage
80T
Tool life
≥ 500k shots
Surface finish
VDI 30#


Mold size
320x350x316mm
Mold net weight
215.81KG
Lifter
4


Steel of cavityHarden with 1*4/S136
Steel of core

Part size
69.34*22.45*2.69mm
Part net weight
2g
Part material
PC+ABS


Design software3DUG
2DCAD

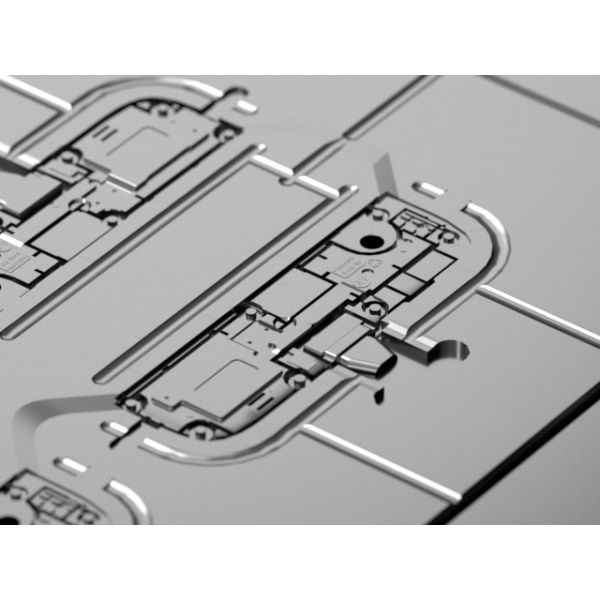

Display diagram
