| Categories | Handheld Smart Card Reader |
|---|---|
| Brand Name: | Speedata |
| Model Number: | KT45Q |
| Certification: | ISO9001/CE/CCC/CQC/IP65 |
| Place of Origin: | Beijing,China |
| MOQ: | 1 unit |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per month |
| Delivery Time: | 3-7 working days |
| Packaging Details: | Independent packing with standard carton box, accessories(battery/charger/USB data cable/protection cover/hand strap) |
| Item Name: | Smart MSR Card Reader Scanner |
| Display: | 4.5inch Capacitive Touch Screen |
| Wireless: | 3G /4G/ Wifi /Bluetooth/GPRS/GPS |
| Memory: | 1GB RAM+8GB ROM |
| Battery: | 4500mAh Rechargeable Li-ion Battery |
| Option 1: | Smart MSR Card Reader Writer |
| Option 2: | Built-in Printer |
| Option 4: | 1D 2D Barcode Scanner |
Development Environment | |
| Operating System | Android 5.1 |
| SDK | Software Development Kit |
| Language | Java |
Fundamental Characteristics | |
| CPU | Quad-core 1.3Ghz ARM® Cortex-A53 (LPDDR2 and LPDDR3) |
| Memory | 1GB DDR3 RAM + 8GB Frash ROM |
| Storage | Micro SD/TF card max.32GB expansion |
| Display | 4.5-inch IPS 480 * 854 Multi-point touch capacitive screen |
Communications | |
| 4G WWLAN | FDD B1B3B7 TDD B38B39B40 |
| WCDMA B1B2B5B8 | |
| EVDO BC0 GSM B2B3B5B8 | |
| WiFi | 2.4Ghz 802.11 b/g/n |
| G-Sensor | Yes |
| Bluetooth | V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE) |
| GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
| DGPS (please check options) | |
Physical Characteristics | |
| Dimensions | 175 * 76 * 28mm |
| Weight | More 400g (includes main battery) |
| Expansion Slots | 1*PSAM, 2*SIM |
| Battery | rechargeable li-ion battery 4500mAh 3.7V |
| Or rechargeable li-ion battery 2250mAh 7.4V (if with printer) | |
| 500hours standby time, Up to 6hours calling time, 4hours charging time | |
| Camera | 8MP Camera |
| Video | Support still image and video capture |
| Audio | 3.5mm 4way plug |
| Keypad | Front 17keys, Side 4keys |
| Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
| USB Host (Optional), RS-232 interface (Optional) | |
User Environment | |
| Operating Temp. | -10 to 50℃ |
| Humidity | 10%RH - 90%RH (Non-condensing) |
| Protection class | IP65 |
| Drop resistance level | 1.5M |
Data Modules | |
Barcode scanners (optional ) | |
| 1D Linear Scanner (Optional) | |
| 1D scanner | Symbol SE955 (Optional 1) |
| Newland EM1300 (Optional 2) | |
| Honeywell N4313 (Optional 3) | |
| 2D Imager Scanner (Optional) | |
| 1D/2D scanner | Symbol SE4500 (Optional 1) |
| Newland EM3000 (Optional 2) | |
RFID readers | |
| LF RFID reader | 134.2khz, ISO 11784/11785, FDX-B/HDX (Optional 1) |
| 125khz (Optional 2) | |
| HF RFID reader | 13.56MHz, ISO 14443A/B, ISO 15693 |
| NFC reader | Include 13.56MHz, ISO 1443A/B |
| UHF RFID reader | 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset |
| 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader | |
Biometric fingerprint (optional ) | |
| Fingerprint | Crossmatch TCSIG (meet FBI FIPS201 ) (Optional 1) |
| Fingerprint | Crossmatch TCS1B (meet STQC ) (Optional 2) |
Other Modules (optional ) | |
| DGPS | Ublox LEA-6T (with RTK) |
| PSAM | ISO7816 (SIM) |

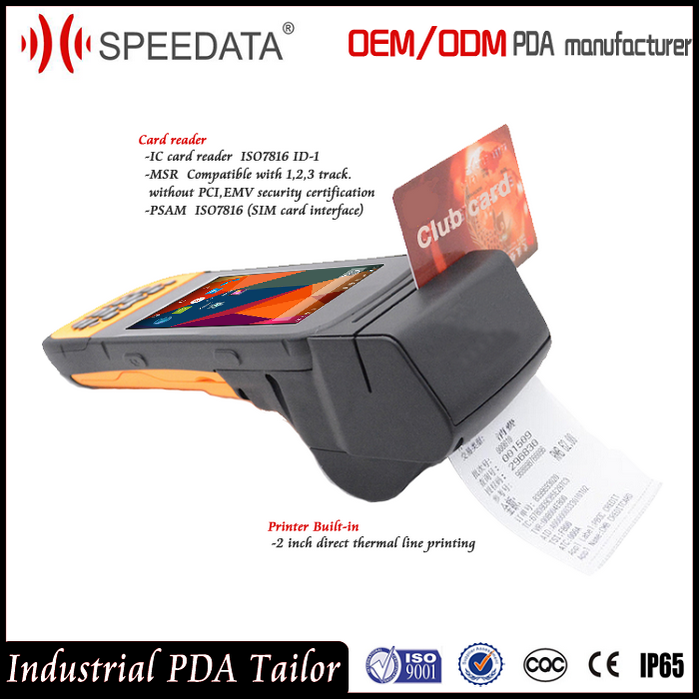

| MSR | Compatible with one, two, three track(without PCI, EMV security certification) |
| IC card reader | ISO7816 ID-1 |
| Printer | Integrete 2inch Direct thermal line printing |
| Far Infrared Meter Reading | IEC62056-21 (IEC1107) communication protocol |
| 433Mhz | Require customers to provide 433Mhz wireless modules or specifications |
| Zigbee | Require customers to provide 433Mhz wireless modules or specifications |
