Bicycle Multifunctional Impact Tester Frame Impact Tester Frame Drop Weight Impact Tester

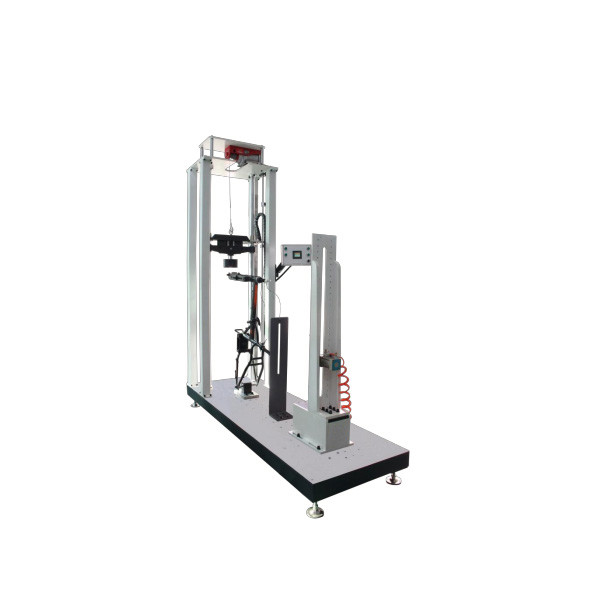

Bicycle Multifunctional Impact Tester SL-BT87

Application Of Bicycle Multifunctional Impact Tester

This machine is used to simulate the impact on the frame and fork when the front wheel leaves the ground, when it is hit or when it is subjected to vibration.

Test principles

All types of frames according to ISO 4210-6.4.1, GB3565 and GB17761, etc.

Test method

1. Attach the frame/fork assembly to the dummy rear axle of the machine

2. Attach a standard roller to the fork, weighing less than or equal to 1Kg.

3. Adjust the weight of the impact weight to 22.5 kg.

4. Set the impact height 180mm-300mm and the number of impacts on the touch screen (the device can be set by the user)

5. Equipped with a steel ruler to indicate the height before and after the impact and to measure the deformation (the number of tests can be repeated 2 times)

6. After the test is completed, check whether there are cracks in the assembly and the size of the deformation, and judge whether it is qualified according to the standard.

Hammer landing height

Technical Parameters

Diagrams and pictures of equipment
