Brand Name: | YUHONG GROUP |
Model Number: | TP304 |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Place of Origin: | CHINA |
MOQ: | 1PC |
Price: | Negotiation |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000 Ton/month |
Delivery Time: | Depends on quantity |
Packaging Details: | Bundle /Ply-wooden Case |
Material Grade: | TP304 |
Standard: | ASTM A269 |
Size: | 21.34mm-609.6mm |
W.T.: | 0.8mm-4mm |
Length: | 1000mm-12500mm |
NDT: | ET HT UT PT |
Packing: | Ply-wooden Case /Iron Case/ Bundle |
Appllication: | heat exchanger/ chemical |
Company Info. |
Yuhong Group Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |

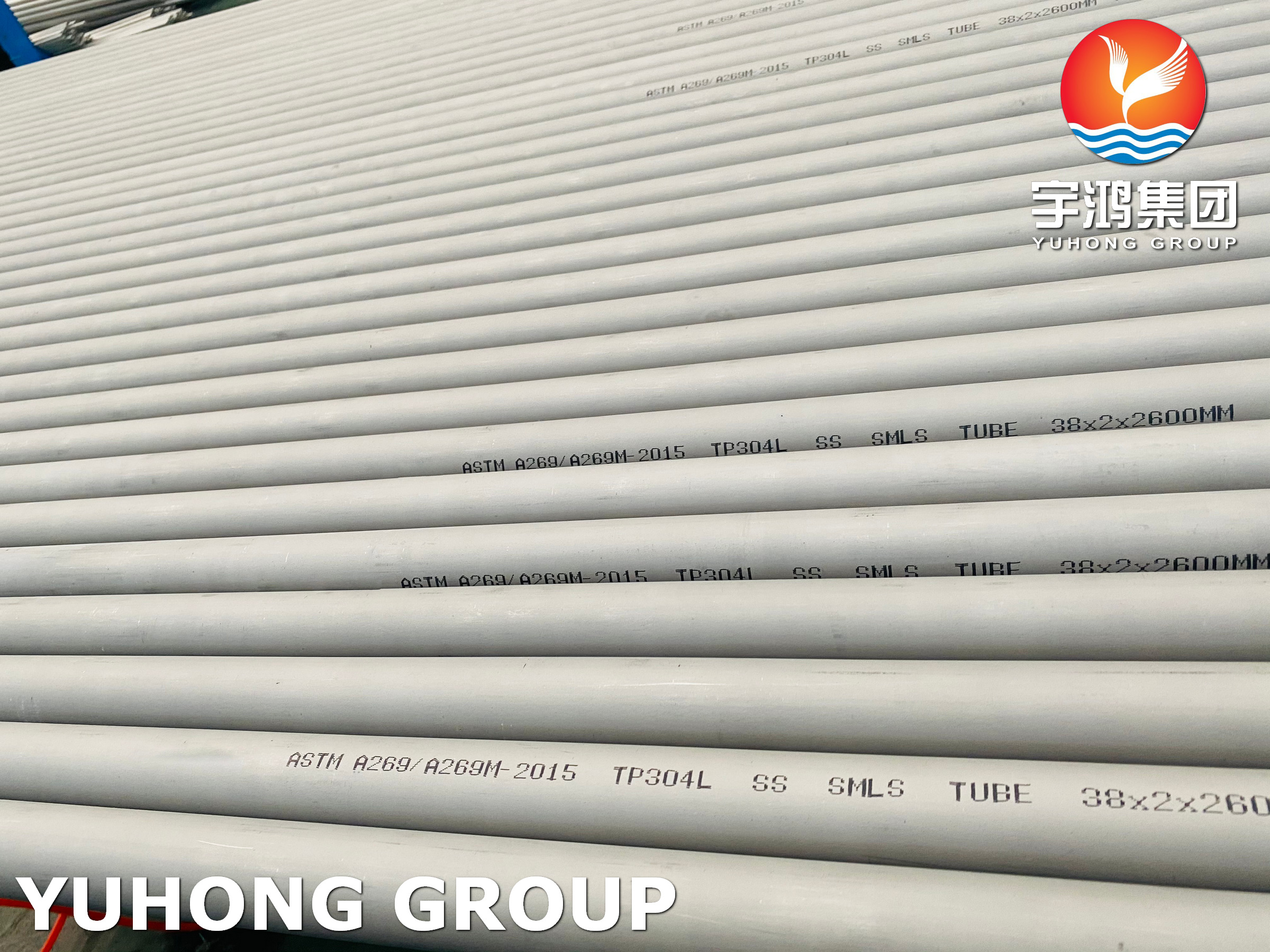

ASTM A269 TP304L Stainless Steel Seamless Tubes For Heat Exchangers Chemical
YUHONG GROUP are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
Chemical Composition of ASTM A269 TP304L Stainless Steel Seamless Tubes
Weight % | C | Mn | P | S | Si | Cr | Ni |
304L | .035 | 2.00 | .045 | .030 | 1.00 | 18.0-20.0 | 8.0-13.0 |
Mechanical Property of ASTM A269 TP304L Stainless Steel Seamless Tubes
Grade | Tensile | ||||
Ultimate/Min | Yield/Min | Elongation/Min | |||
KSI | MPA | KSI | MPA | % | |
304L | 70 | 485 | 25 | 170 | 35 |
Physical Properties Of ASTM A269 TP304L Stainless Steel Seamless Tubes
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
ASTM A269 TP304L Stainless Steel Seamless Tubes APPLICATION
Gas Processing
Petrochemical
Power Generation
Food Processing
Chemical
Oil & Gas
![]() |
