| Categories | Industrial Network Switch |
|---|---|
| Brand Name: | Olycom |
| Model Number: | IM-WS050GE V1 |

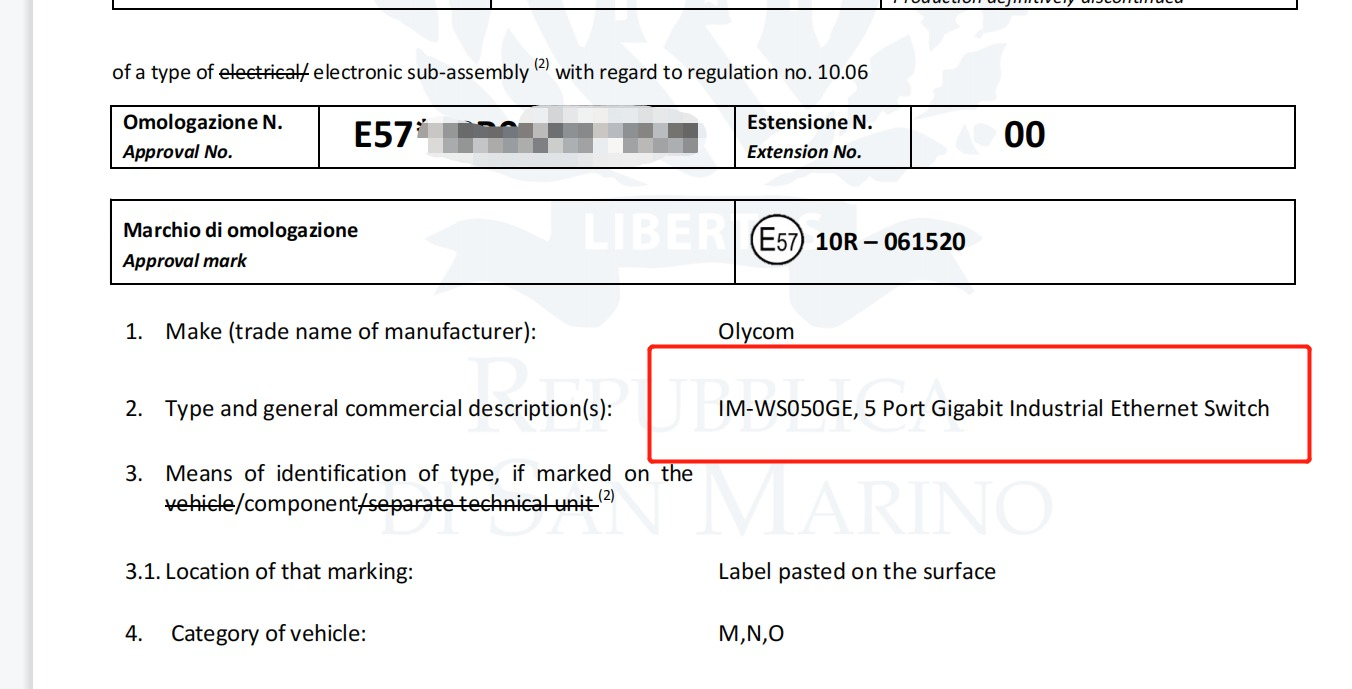

| Certification: | CE RoHS FCC E-mark |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 3000pcs/month |
| Delivery Time: | 4~7 working days |
| Packaging Details: | 1pc in a box, 0.45kg gross weight |
| Product name: | Gigabit waterproof ethernet switch |
| Speed: | 10/100/1000Mbps |
| Feature: | Unmanaged, non-POE |
| Housing: | Metal, IP40 grade |
| Voltage: | 24V |
| Dimension: | 114*93*35mm |
| Company Info. |
| Shenzhen Olycom Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

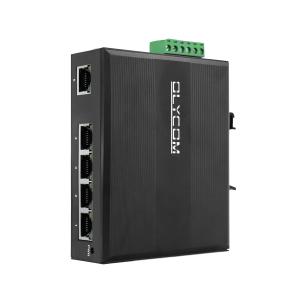

5 port mini industrial network switch unmanaged
Introduction to 5 port unmanaged switch
Specification of Gigabit Ethernet Switch
| Product Name | 10/ 100/ 1000Mbps Industrial Ethernet Switch ( 5TP) |
| Port | 5 x10/ 100/ 1000M UTP RJ45(Support MDI/ MDIX auto-sensing) |
| Switching features | Transmission mode: storage and forward System bandwidth: 10Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/ 1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |
| Power supply | Input voltage: DC 9-52V No-load power: 5W Reverse connection: support |
| Environment | Working temperature: -40°~ 85°C Storage temperature: -40°~ 85°C Working humidity: 10%~90%, non-condensing Storage humidity: 10%~95%, non-condensing |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety | CE Mark ,commercial CE/ LVD EN60950 |
| Mechanical information | Shell: Corrugated metal shell Safety class: IP40 Dimension: 114x 93 x 35mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |

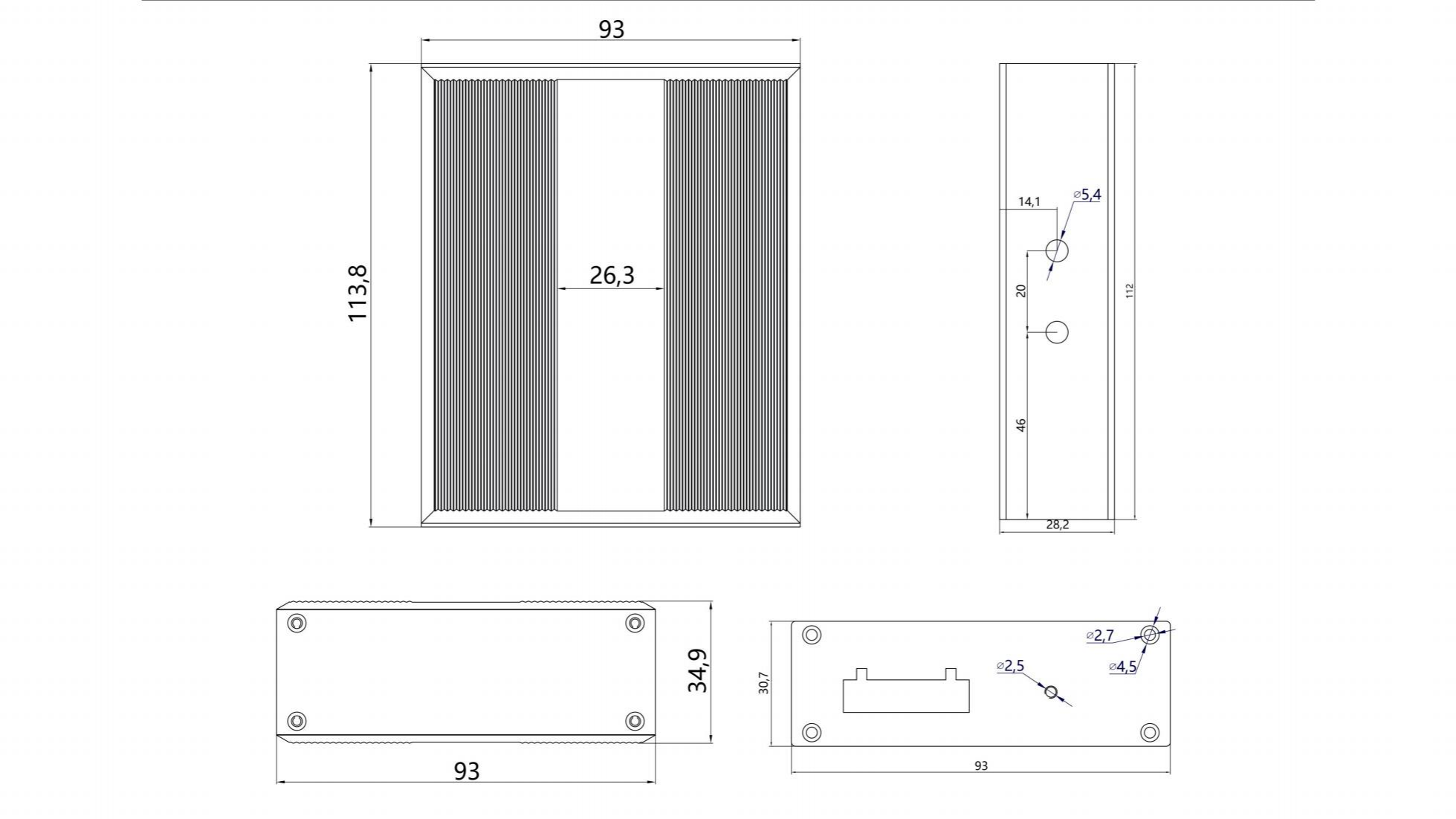

Dimension of 5 port mini switch

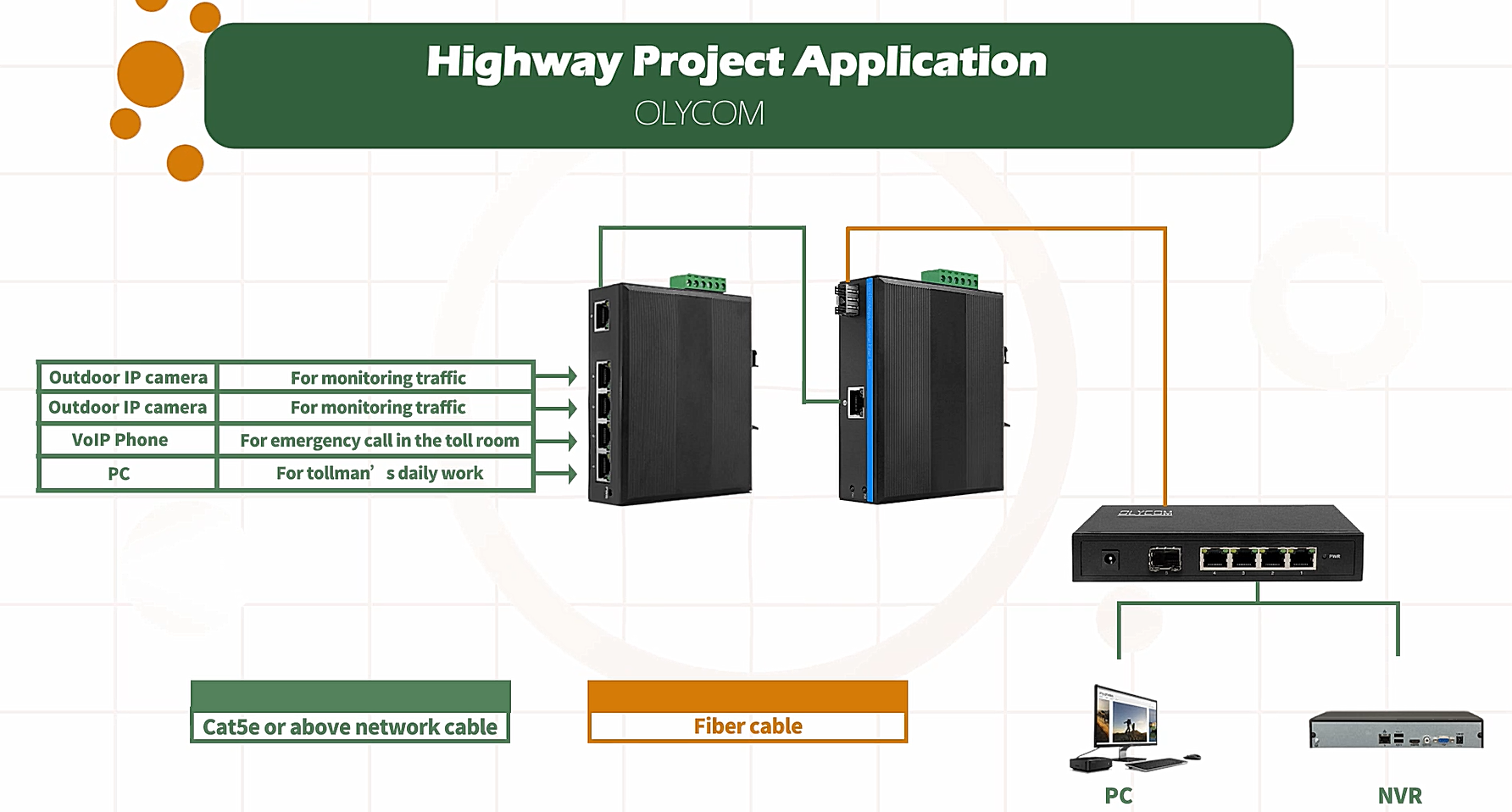

Application of outdoor ethernet switch
FAQ
1 Q: How will you send my goods?
A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.
2 Q: What is warranty time?
A: A year for commercial products and 3 years for industrial products. Technical support will be offered free.
| Products Category | Warranty Period |
| Fiber media converter | 1 year |
| Optical Video Converter | 1 year |
| Fiber Switch | 1 year |
| Ethernet Extender | 1 year |
| Fiber Modem | 1 year |
| PDH Multiplexer | 1 year |
| Industrial switch | 3 years |
3 Q: Do you accept sample order?
A: Yes. Sample order to check our services and quality.
4 Q:Can I have any discounts?
A: Discounts will be given to repeat orders, regular clients and discount products.
5 Q:Tell me something about your packing.
A: It is neutral packing. If you have your own packing box, we support it.
|
