| Categories | Electric Pallet Stacker |
|---|---|
| Brand Name: | JAC FORKLIFT |
| Model Number: | CDD15-20 |
| Certification: | CE/SGS/ISO 9001/ISO 14001/SGS |
| Place of Origin: | He Fei |
| MOQ: | 1 |
| Payment Terms: | other |
| Delivery Time: | 8 work days |
| Power: | Electric Pallet Stacker |
| Load Capacity: | 1T - 3T |
| Load center: | 500mm |
| Lift height: | 3000~5000mm |
| Fork length: | 1220mm |
| Condition: | New |
| Min. lifting height: | 3000mm |
| Weight: | 4300KGS,1500Kg-4150kg |
| Company Info. |
| JAC HEAVY DUTY IMPORT&EXPORT CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

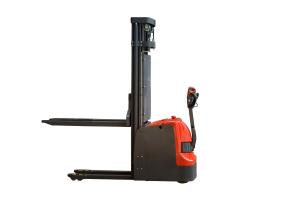

1.5-2T Walkie Electric stacker (Strengthen model)
Product description
The “Pinwheel” capability for right angle stacking will save the
operating space and reduce turning radius for better vision, which
makes it more convenient for operation in limited space.The Walkie
electric stacker comes with power-off braking function. The stacker
is braked once the handle is loosened or pressed to the bottom,
which makes it safe to operate on slope to avoid losing control.
Features
1. High torque, brushless AC drive system and ZF gearbox can boost
the accelerating performance, enhancing the productivity and saving
your energy.
2. The transistor drive control system (MOSFET) can operate at a
high efficiency and at a low noise, and also supports programmable
neutral speed reduction and electric disc brake.
3. The German ergonomically angled hand grips can work in harsh environments like cold, moisty or dusty without harming the operation stability.
4. The multifunction control handle provides fingertip control and brings the operator more convenience.
5. The four-color coulombmeter is designed with green, blue, orange and red display, which provides clear visualization of the residual energy.
6. The operating handle is integrated with high quality air spring,
once loosen the handle, reset slowly and automatically.
Technical Parameters of Diesel Forklift
| Characteristics | 1.1 | Manufacturer | JAC | |||||
| 1.2 | Model | CDD15 | CDD15 | CDD15 | CDD15 | CDD20 | ||
| 1.3 | Power unit | Electric | Electric | Electric | Electric | Electric | ||
| 1.4 | Operation | Walking | Walking | Walking | Walking | Walking | ||
| 1.5 | Rated traction weight | kg | 1500 | 1500 | 1500 | 1500 | 2000 | |
| 1.6 | Load centre | mm | 600 | 600 | 600 | 600 | 600 | |
| 1.7 | Axle centre to fork face | mm | 672 | 672 | 672 | 672 | 672 | |
| 1.8 | Wheel base | mm | 1384 | 1384 | 1384 | 1384 | 1384 | |
| Weights | 2.1 | Service weight with battery | kg | 966 | 1001 | 1068 | 1126 | 966 |
| Wheels/Tyres | 3.1 | Wheels type | PU | PU | PU | PU | PU | |
| 3.2 | Driving wheel size | Φ×w(mm) | Φ230×70 | Φ230×70 | Φ230×70 | Φ230×70 | Φ230×70 | |
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | |
| 3.4 | additional wheels(dimensions) | Φ×w(mm) | Φ150×58 | Φ150×58 | Φ150×58 | Φ150×58 | Φ150×58 | |
| 3.5 | Wheels, number front/rear (x = driven) | 1x+1/4 | 1x+1/4 | 1x+1/4 | 1x+1/4 | 1x+1/4 | ||
| 3.6 | Track width | mm | 526 | 526 | 526 | 526 | 526 | |
| 3.7 | Track width | mm | 390/515 | 390/515 | 390/515 | 390/515 | 390/515 | |
| Dimensions | 4.1 | Height of mast, lowered | mm | 1991 | 2291 | 1767 | 2100 | 1991 |
| 4.2 | Free lift | mm | 166 | 166 | 1331 | 1686 | 166 | |
| 4.3 | Lift | mm | 3000 (2-Stage Mast) | 3600 (2-Stage Mast) | 3600 (3-Stage Full Free Mast ) | 4500 (3-Stage Full Free Mast ) | 3000 (2-Stage Mast) | |
| 4.4 | The max. lifting height(mm) | kg | 1300 | 1100 | 1100 | 750 | 1400 | |
| 4.5 | Height of mast, extended | mm | 3408 | 4008 | 4024 | 5024 | 3408 | |
| 4.6 | Overall height(With handle | mm | 870/1200 | 870/1200 | 870/1200 | 870/1200 | 870/1200 | |
| 4.7 | Lowered fork height | mm | 86 | 86 | 86 | 86 | 86 | |
| 4.8 | Overall length | mm | 2022 | 2022 | 2022 | 2022 | 2022 | |
| 4.9 | Length to fork face | mm | 872 | 872 | 872 | 872 | 872 | |
| 4.10 | Overall width | mm | 795 | 795 | 795 | 795 | 795 | |
| 4.11 | Fork dimensions | s/e/l (mm) | 60/180/1150 | 60/180/1150 | 60/180/1150 | 60/180/1150 | 60/180/1150 | |
| 4.12 | Width of forks | mm | 570/695 | 570/695 | 570/695 | 570/695 | 570/695 | |
| 4.13 | Min.Ground clearance | mm | 26 | 26 | 26 | 26 | 26 | |
| 4.14 | Aisle width with pallet 1000 x 1200 across forks | mm | 2435 | 2435 | 2435 | 2435 | 2435 | |
| 4.15 | Aisle width with pallet 800 x 1200 along forks | mm | 2412 | 2412 | 2412 | 2412 | 2412 | |
| 4.16 | Min.Turning radius | mm | 1550 | 1550 | 1550 | 1550 | 1550 | |
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.0/4.2 | 4.0/4.2 | 4.0/4.2 | 4.0/4.2 | 4.0/4.2 |
| 5.2 | Lifting speed, with/without load | mm/s | 80/210 | 80/210 | 80/210 | 80/210 | 80/210 | |
| 5.3 | Lowering speed, with/without load | mm/s | 152/160 | 152/160 | 152/160 | 152/160 | 152/160 | |
| 5.4 | Maximum climbing ability, with/without load | % | 6/8 | 6/8 | 6/8 | 6/8 | 6/8 | |
| 5.5 | Service brake | Electromagnetic braking | Electromagnetic braking | Electromagnetic braking | Electromagnetic braking | Electromagnetic braking | ||
| Drive | 6.1 | Drive motor, 60 minute rating | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | no | no | no | no | ||
| 6.4 | Battery voltage/rated capacity | V/Ah | 24/210 | 24/210 | 24/210 | 24/210 | 24/210 | |
| 6.5 | Battery weight (± 5%) | kg | 195 | 195 | 195 | 195 | 195 | |
| Others | 7.1 | Type of drive control | CURTIS AC | CURTIS AC | CURTIS AC | CURTIS AC | CURTIS AC | |
| 7.2 | Noise level at operator‘s ear | dB(A) | 70 | 70 | 70 | 70 | 70 | |
| 7.3 | Steering type | Mechanical steering | Mechanical steering | Mechanical steering | Mechanical steering | Mechanical steering | ||
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year

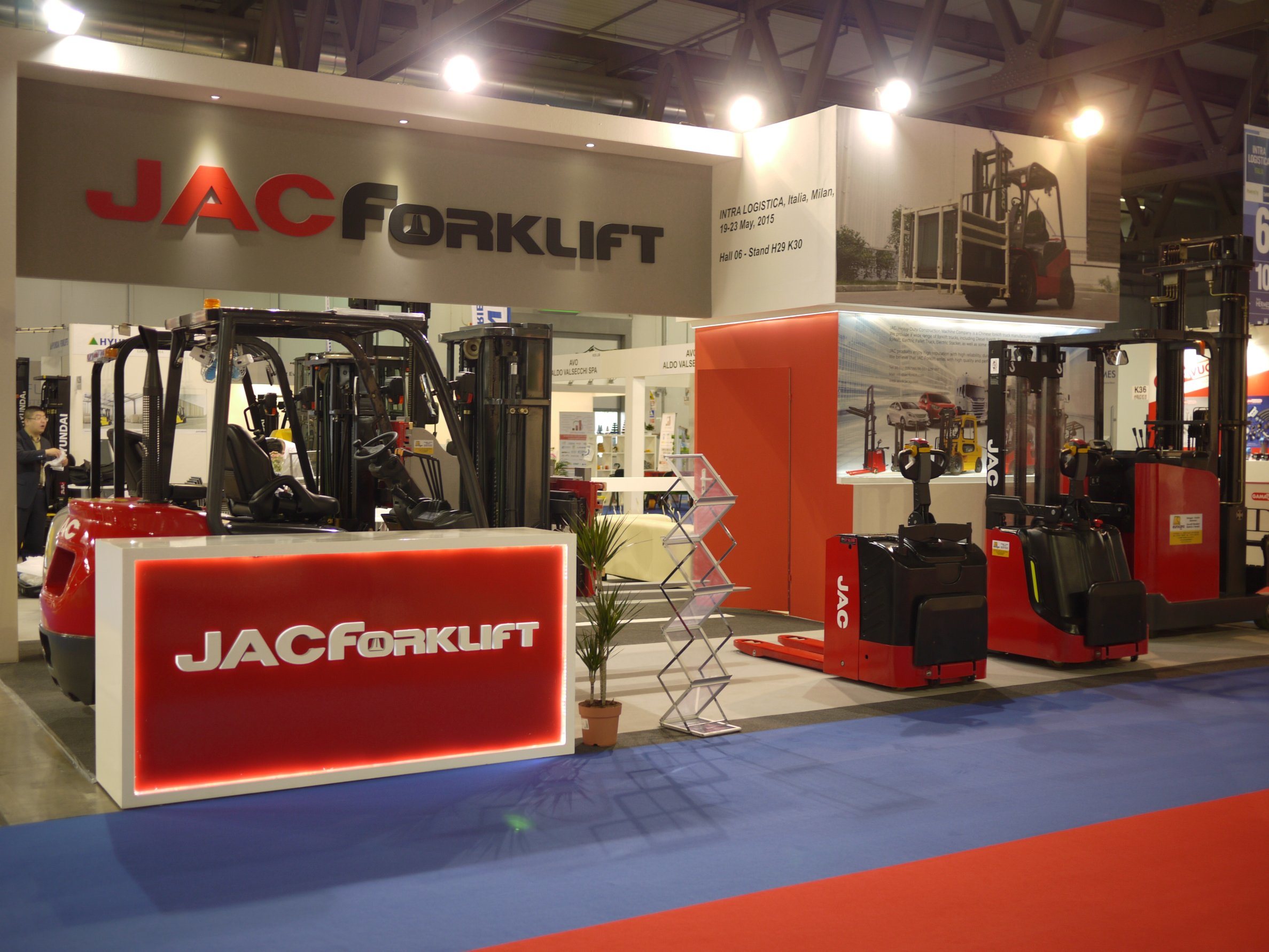

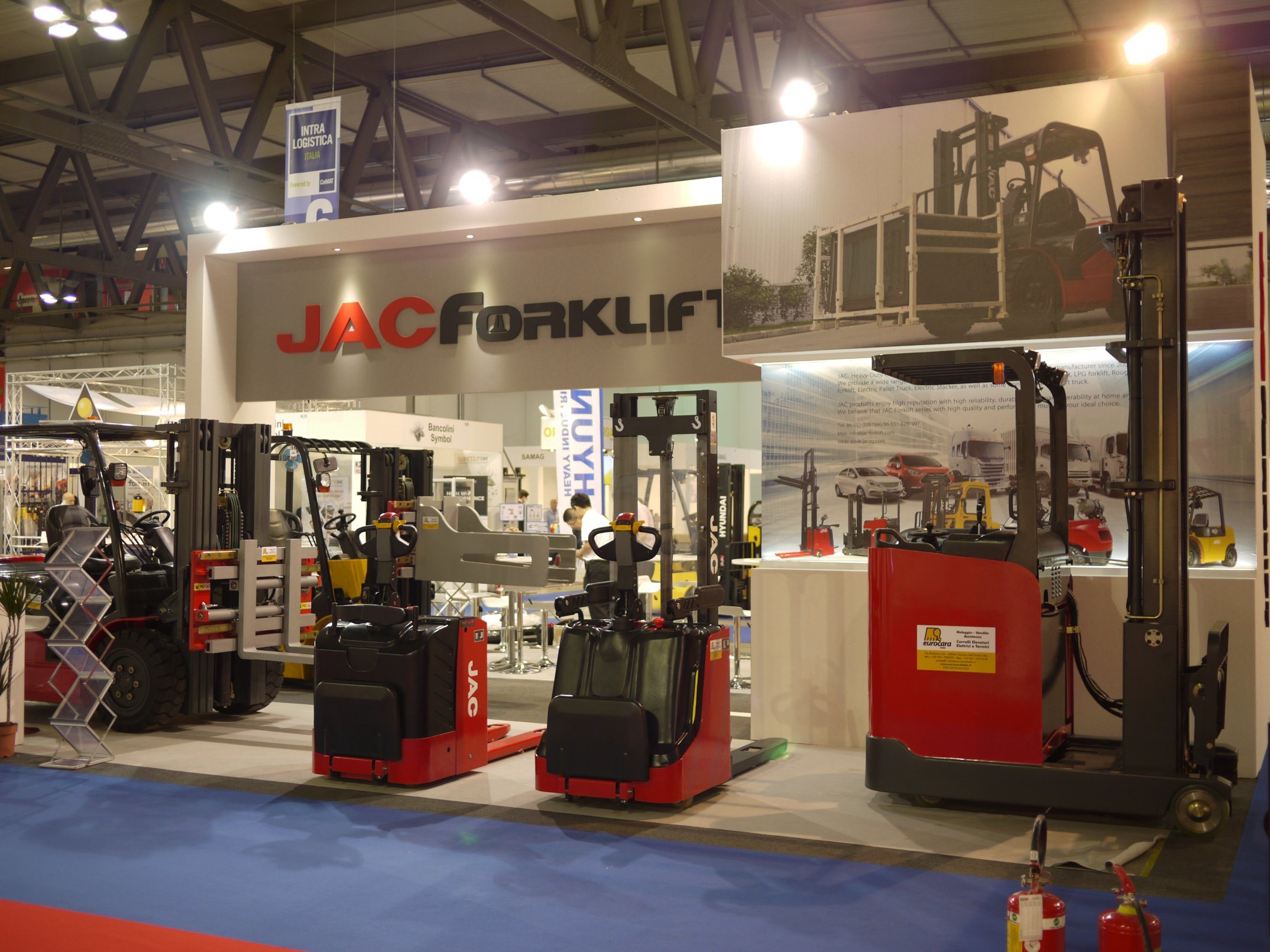

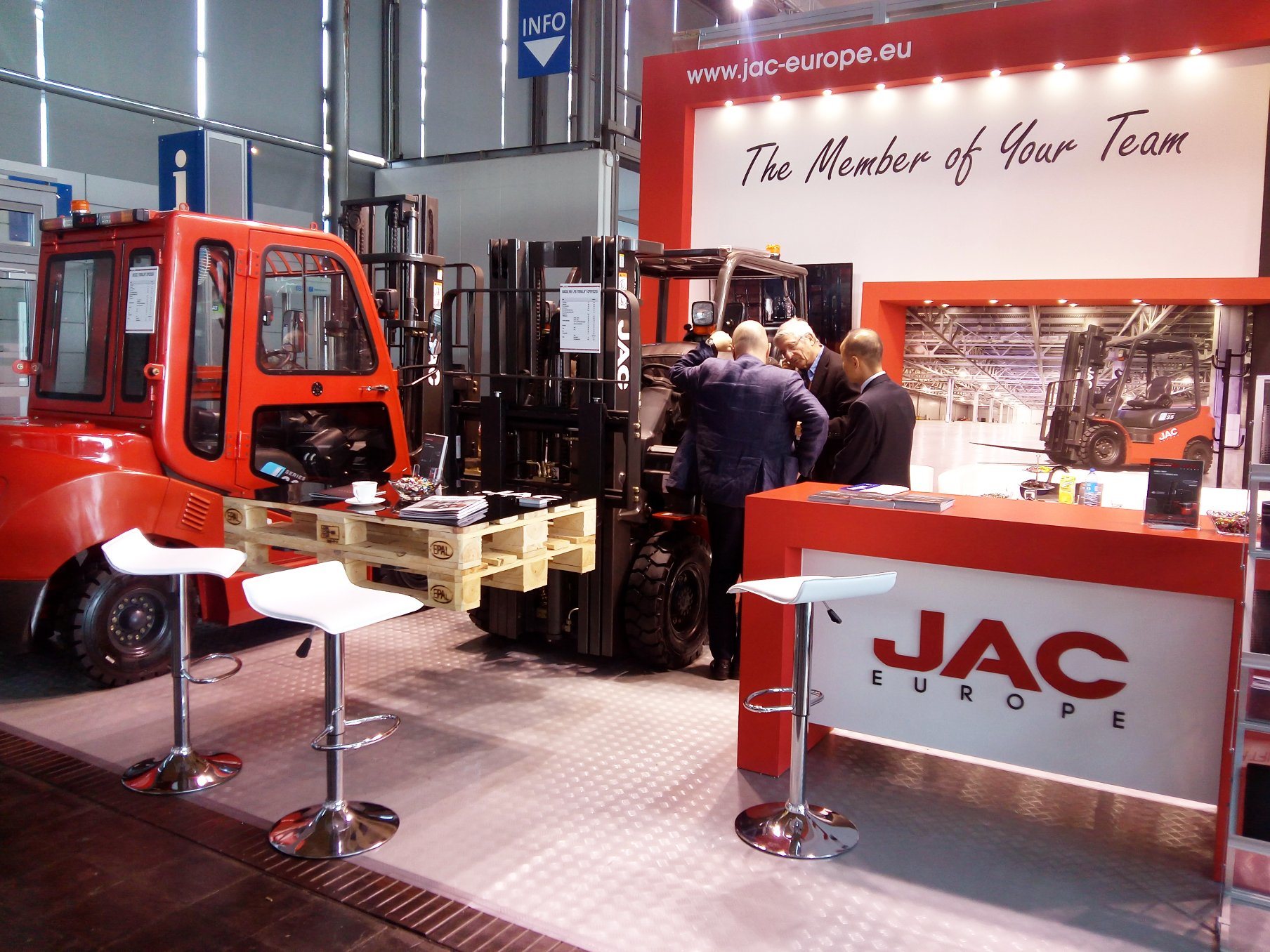

exhibition
Product certification
|
