Multi Function Vacuum Packing Machine Nuts Pouch Packaging Equipment

Categories Pouches Packing Machine
Brand Name: ZCHONE PACK
Model Number: ZC-XK8
Certification: ISO,CE
Place of Origin: Guangdong,China
MOQ: 1set
Price: $18000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1/sets/15day
Delivery Time: 15
Packaging Details: Standard export wooden case packaging
Type: Multi-Function Packaging Machine
Applicable Product: Nuts, Cashews, Candies, Pistachios, Coffee Beans, Tea, Cookies, Popcorn, Snacks, Food, Jelly, Chocolate, etc.
Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Production Capacity: 20bag/min, 50bag/min, 30bag/min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Multi Function Vacuum Packing Machine Nuts Pouch Packaging Equipment

Vacuum Packing Machine Pouch Packaging Product Packaging Machine


Machine Specification:


ItemZC-X8200ZC-X8250ZC-X8300
Packing speedMAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size(L)100-300mm (W)70-200mm(L)100-350mm (W)130-250mm(L)150-450mm (W)200-300mm
Bag typePre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range10g-1kg10g-2kg10g-3kg

Measurement

accuracy

*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width200mm250mm300mm
Gas consumption0.8Mpa 0.3m3/min (Supply by user)
Total Powder/Voltage2.5KW 380V 50/60Hz2.5KW 380V 50/60Hz3.7KW 380V 50/60Hz
Air compressorNot less than 1CBM
DimensionL1900*W1400*H1450L1900*W1400*H1450L2000*W1500*H1550
Machine Weight1300kg1400kg1500kg
Work flowGiving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)

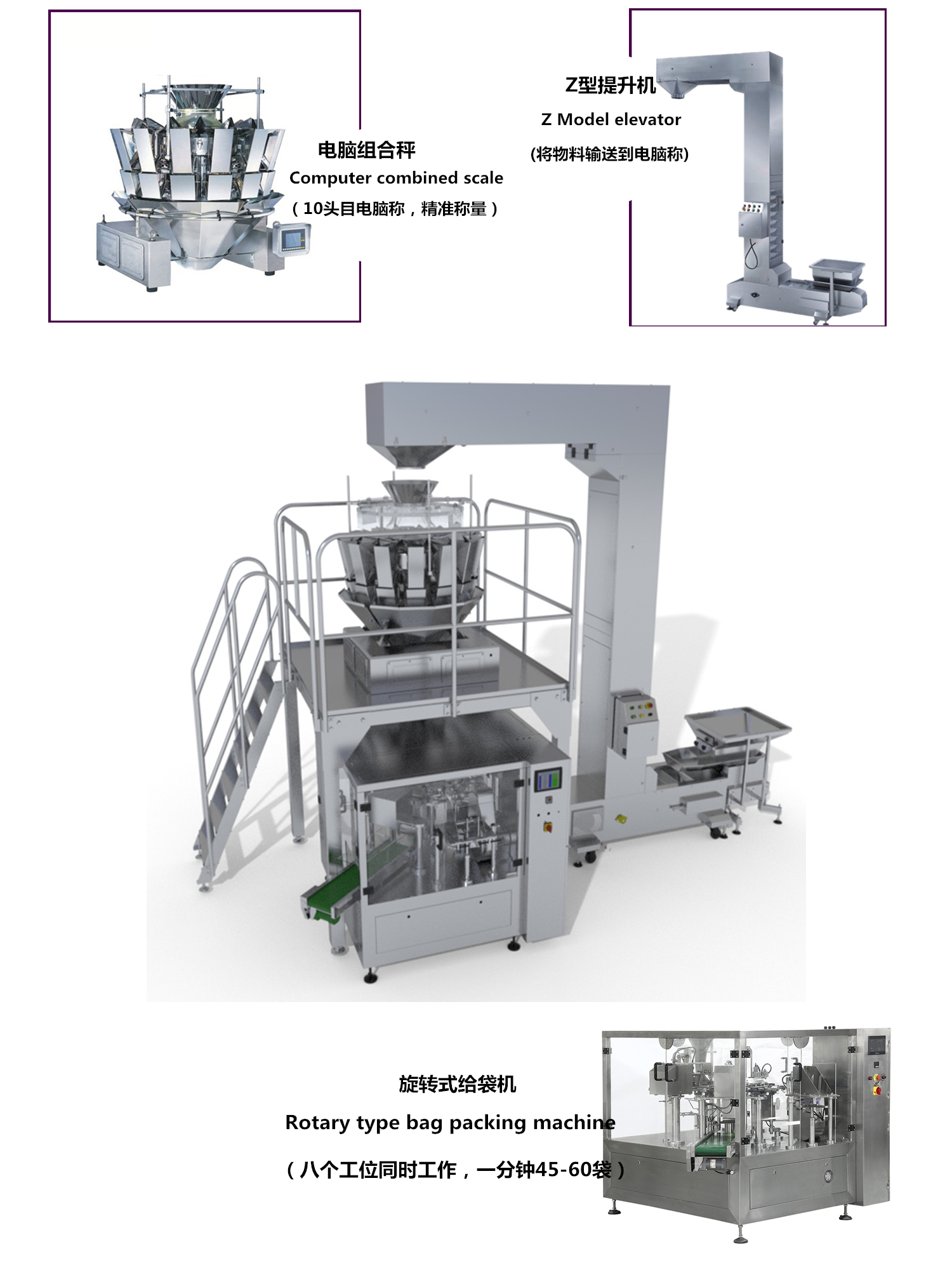

The bag-type automatic packaging machine usually consists of a bag-type machine and a weighing machine. The weighing machine can be a multi-head combination scale, a screw dosimeter or a liquid pump, which can be used to pack granule, powder or liquid materials.The working principle of the bag-type automatic packaging machine is to use the manipulator to take the bag, open the bag, cover the bag, and seal the user's prefabricated bag, and complete the functions of filling and coding under the coordinated control of the computer to realize the automatic packaging of the prefabricated bag.


The bag-type automatic packaging machine is characterized by manipulators replacing manual bags, which can effectively reduce bacterial contamination in the packaging process and improve the level of automation. It is suitable for small-scale and large-scale automatic packaging of food, condiment and other products. The disadvantage is that premade bags need to remove static electricity, otherwise it is easy to take double bags and open bags. It is also inconvenient for the machine to change the packaging specifications.
