| Categories | Pneumatic Solenoid Valves |
|---|---|
| Brand Name: | FESTO |
| Model Number: | VUVG-LK14-T32C-AT-G18-1R8L-S |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | EXW USD40-60 |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | Plastic bag, Carton |
| Order no: | 8042566 |
| Model: | VUVG-LK14-T32C-AT-G18-1R8L-S |
| Brand: | FESTO |
| Product weight: | 75 g |
| Duty cycle: | 100% |
| Media temperature: | -5°C-50°C |
| Company Info. |
| FLY AUTOMATION |
| Verified Supplier |
| View Contact Details |
| Product List |
Advantage
| Innovative | Piston spool with sealing ring |
| Flexible | Valve manifold assembly with pressure zones |
| Reliable | Sturdy and durable metal components |
| Easy to install | Easy mounting, captive screws and seal |
Technical Data
| Valve function | 2x3/2-way, monostable, closed |
| Type of actuation | Electric |
| Valve size | 14 mm |
| Standard nominal flow rate | 570 l/min |
| pneumatic working port | G1/8 |
| Operating voltage | 24V DC |
| Design | Piston slide with sealing ring |
| Type of reset | Pneumatic spring |
| Approval | c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |

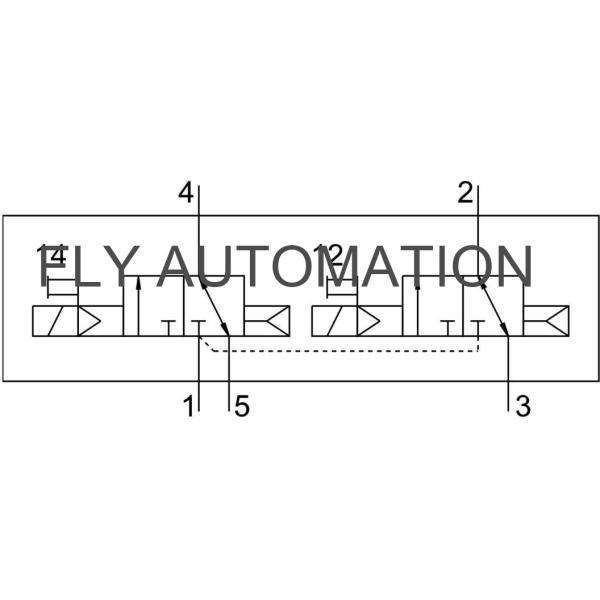

| Symbol | 00992904 |
| lap | Positive overlap |
| Signal status display | LED |
| Max. switching frequency | 2 Hz |
| Switching time off | 20 ms |
| Switching time on | 13 ms |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: 0.8 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | -5°C-50°C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C-50°C |
| Product weight | 75 g |
| Electrical connection | 3-pin M8x1 A-encoded to EN 61076-2-104 Plugs |
| Type of mounting | On manifold rail With through-hole |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Wrought aluminium alloy |
Other size as follow
| Type | Order no | Price |
| VUVG-LK14-T32C-AT-G18-1R8L-S | 8042566 | USD40-60 |
| VUVG-LK14-M52-AT-G18-1R8L-S | 8042567 | USD40-60 |
| VUVG-LK14-B52-T-G18-1R8L-S | 8042568 | USD40-60 |
| VUVG-LK14-T32C-AT-G18-1H2L-S | 8042562 | USD40-60 |
| VUVG-LK14-M52-AT-G18-1H2L-S | 8042563 | USD40-60 |
| VUVG-LK14-B52-T-G18-1H2L-S | 8042564 | USD40-60 |
| VUVG-LK14-T32C-AT-G18-1H2L-F1A | 8173205 | USD40-60 |
| VUVG-LK14-M52-AT-G18-1H2L-F1A | 8173206 | USD40-60 |
| VUVG-LK14-B52-T-G18-1H2L-F1A | 8173207 | USD40-60 |
Product picture
