AC Controller Smart Home Router , Networking Distributor Box With 4 48V PoE Port

Networking Distributor Box Router AC Controller with 4 IEEE802.3af 48V PoE Port Smart Router

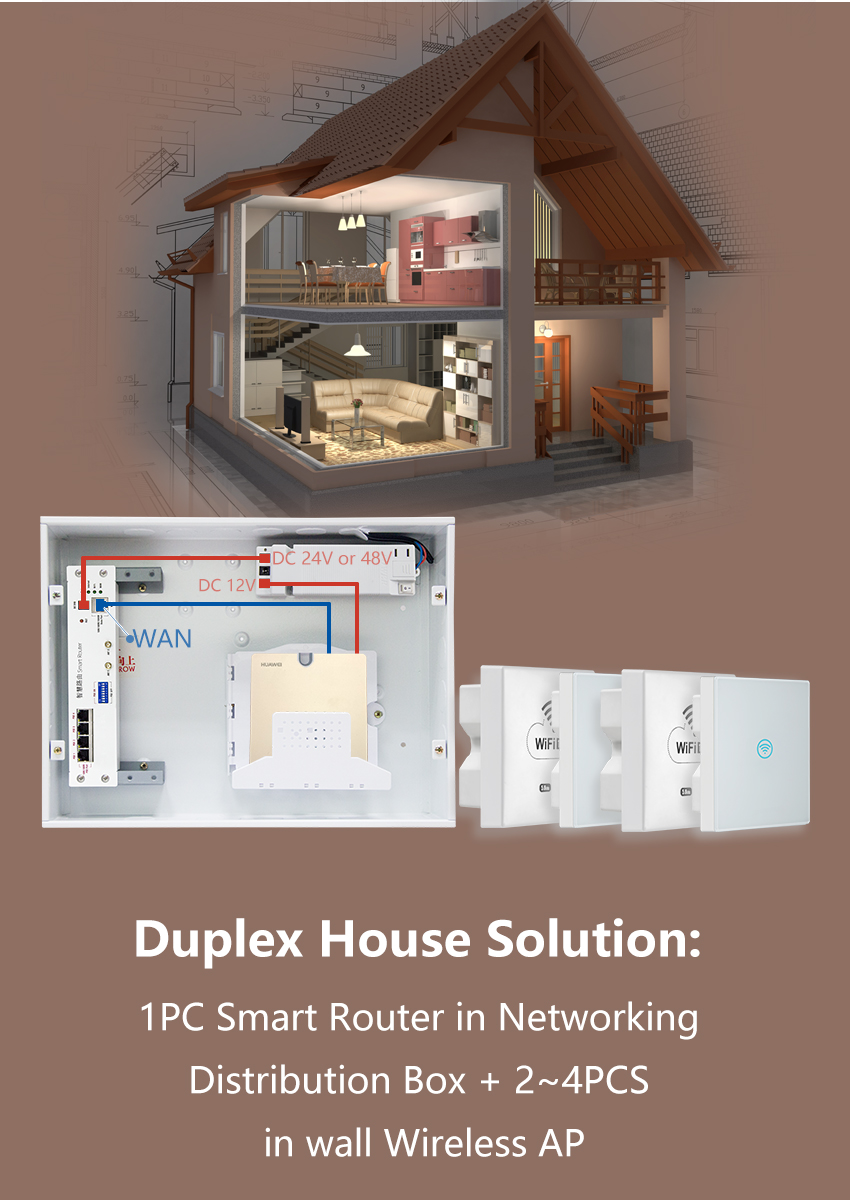

MR810 is a home use smart router with CAPWAP Protocol WLAN controller, (PoE) Ethernet switch, Authentication gateway functions. Build in network/electronic distribution box, it supply Ethernet for PC, IPTV or other entertainment device, then supply PoE power and Ethernet together for in wall wireless AP to bring seamless wireless coverage for each corner.

There are 8*10/100Mbps PoE ports, all ports comply with IEEE 802.3af standard, but automatically to detect the PD equipment and supply 48V PoE power if need;

When connect with PC, easy to login WEB interface to setup MR410 or centralized to configure and manage the connected wireless AP.

There is 1*10/100Mbps WAN port, support PPPoE, Dynamic IP, Static IP, when connect to different ISP network, MR810 will automatic to detect the network type and supply Internet to LAN and PoE ports.

Work with CAPWAP Wireless AP to supply full Wi-Fi coverage, then configure in central, maintain in remote through cloud server, members can solve the network problems at any place and any time.

Besides that, it is an authentication gateway also, support local authentication and remote authentication under cloud server, especially captive portal authentication like Google login, Facebook Login, WeChat Login, SMS Login...

Spec:

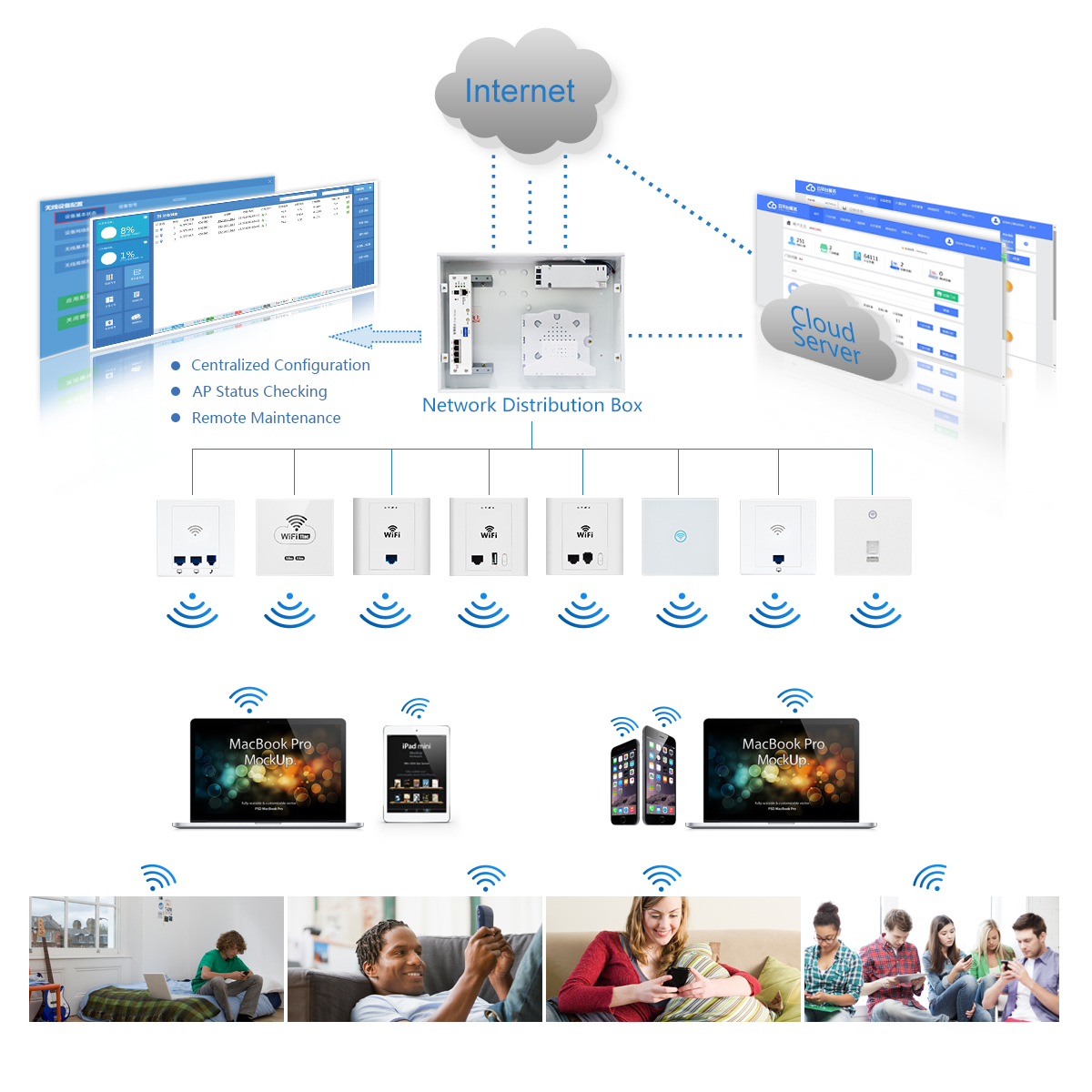

Working Diagram:
