| Name: | 3 Axis Rate Table |
| Model: | DZT3-40(120) |
| Ambient temperature: | 20℃±5℃ |
| Electrical control cabinet: | Customized cabinet |
| Angular position measuring repeatability: | ±1″ |
| Angular position measuring resolution: | 0.36″ |
DZT3-40(120) 3 Axis Rate Table
Description:

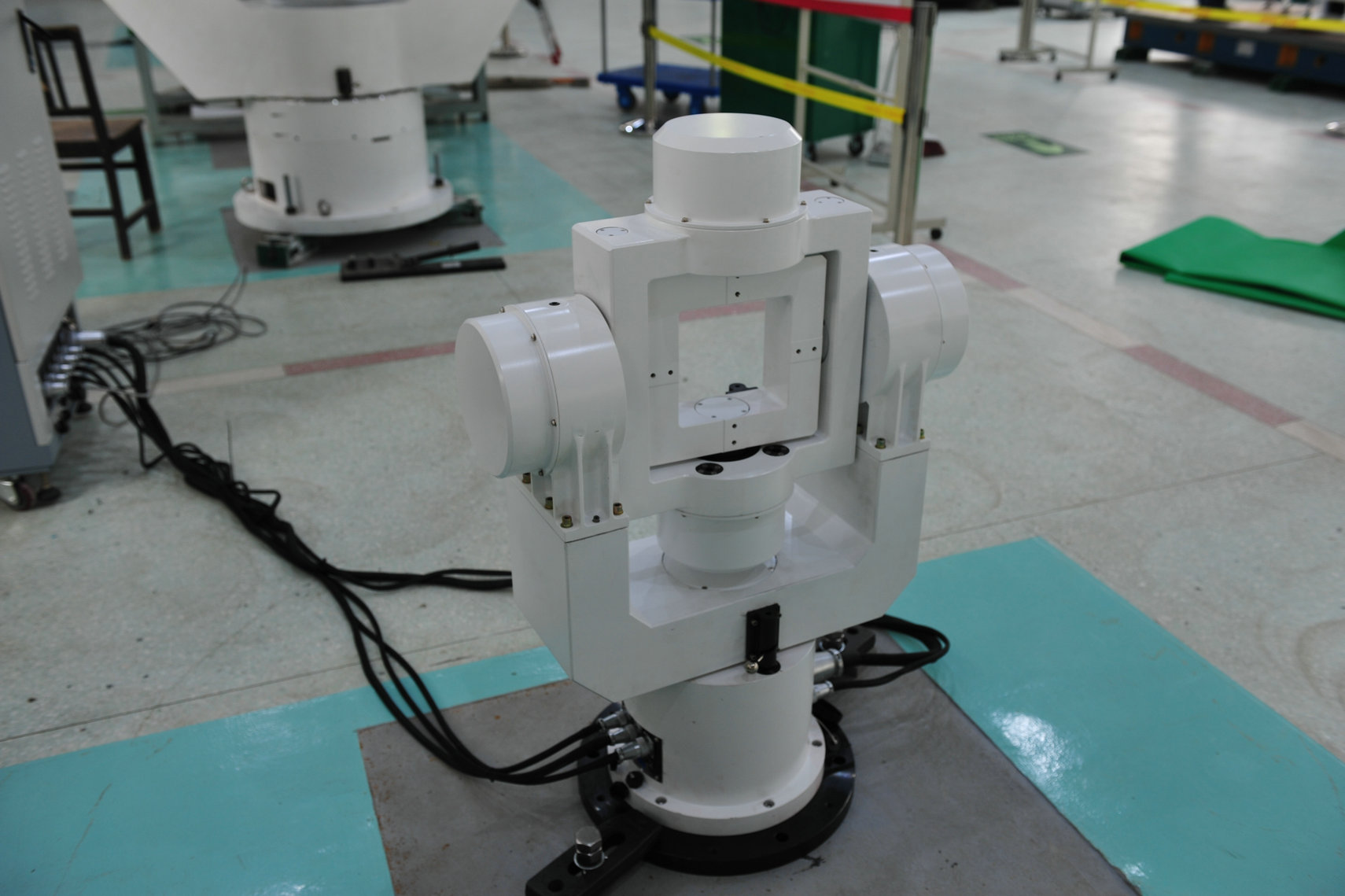

DZT3-40(120)3 axis motorized rate table is multi-functional simulation-measuring device with 3 axis automatic frame structure. It can provide position, rate, swing, servo, simulation etc. functions, and meet the requirement of all function tests and experiments for the inertial system and inertial parts.
Main technical specification:
| Payload capability: | 40Kg | 120Kg |
| Payload dimension: | 420mm(L)×420mm(W)×450mm(H) | φ700mm×700mm |
| Table weight: | About 500Kg | 1600Kg |
| Wobble error: | ±2″ | ±3″ |
| Axes verticality: | Middle and inner frame ±2″ Middle and outer frame ±2″ | Middle and inner frame±3″ Middle and outer frame±3″ |
| Rotational angle range | Continuous, unlimited | |
| Three axis intersection degree: | Inside the ball≤φ0.5mm(Processing gurantee) | Inside the ball≤φ0.3mm(Processing gurantee) |
| Frame lock: | 0°,90° and 180° for three axis | |
| Operation mode: | Position, rate, swing | |
| Slip ring: | User's slip ring(customized number and power) | |
| Electrical control cabinet: | Customized cabinet | |
| Computer system: | Industrial control computer,Windows interface,RS422(100Hz),can receive and send synchronized signal | |
| Safety precaution: | Overspeed emergency stop power off protection | |
| Ambient temperature: | 20℃±5℃ | |
| Angular position measuring accuracy: | ±2″ | |
| Angular position measuring resolution: | 0.36″ | |
| Angular position measuring repeatability: | ±1″ | |
| Angular position control accuracy: | ±1″ | ±2″ |
| Rate range: | Inner:±0.001°/s～500°/s； Middle:±0.001°/s～400°/s； Outer:±0.001°/s～200°/s | ±0.001°/s～100°/s for three axis |
| Rate resolution: | 0.0001°/s | |
| Rate accuracy and stability: | 0.001(1°average)；0.0001(10°average)； 0.00001(360°average) | 0.002(1°average)；0.0002(10° average)； 0.00002(360° average) |
| Maximum acceleration: | Inner 400°/s2；middle 300°/s2；outer 200°/s2 | 100°/s2 for three axis |
| Drive mode: | Torque motor direct drive | |
|
