| Categories | Double Layer Roll Forming Machine |
|---|---|
| Brand Name: | FMS |
| Model Number: | 840-850 |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 35 sets per month |
| Delivery Time: | 30days |
| Packaging Details: | Main machine is nude,the computer control box is packed by plastic. |
| Product Description: | 7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty |
| Tile Type: | Colored Steel |
| Model NO: | 840+850 |
| Dimension(l*w*h): | 6500*1500*1500 |
| Shaft diameter: | 80mm |
| shaft material: | 40Cr steel |
| Voltage: | 380V 50HZ 3PH |
| Weight: | 3.5 T |
| Hydraulic power: | 3kw |
| Material of blades: | Gcr12 quenched |
| Company Info. |
| Cangzhou Famous International Trading Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

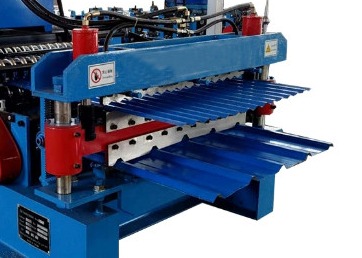

7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty
7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty :Decoiler--Feeding--Roll Forming--Cutting--Output Table
Decoiler
Capacity: 5000kg
Width: 1250mm
Type: Hydraulic Or Manual (Optional)
Inner Diameter: 450-550mm
Outter Diameter: 1500mm
Roll Forming Machine
Power: 3kw
Frame panel thickness: 14mm
Bottom Frame: 360H steel
Weight: 5t
Cutting Device
Type: Hydraulic
Driven; 1 inch chain
Power; 3kw
Cutting Blade: Cr12 steel
Hardness for Heat Treatment:HRC55 – 60°
Hydraulic Pump
Power: 3kw
Oil Type: 46# hydraulic oil
Pump Brand: China Brand
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand:Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Output Table
Length: 6m
It is simple and used to load finished product.
Detailed Parameters:
| Shaft Material | No.45 steel with treatment |
| Roller Station | up 16 steps down 18 steps |
| Main Shaft Dimension | 70mm |
| Material Thickness | 0.3-0.8mm |
| Roller Material | No.45 steel with treatment |
| Working Speed | 8-12m/min |
| Material | PPGI/GI |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
|
