10G BIDI 20KM Bidirection SFP+ Transceiver Module WDM SMF 1270nm/1330nm LC DOM

10G BIDI 20KM Bidirection SFP+ WDM 20KM 10 LR SMF 1270nm/1330nm LC DOM

General

1.HLSBxx1XL-CD20 series single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

2.The HLSBxx1XL-CD10 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

3.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.

Features

1.Supports 9.95 to 10.3Gb/s bit rates

2.Simplex LC Connector

3.Hot pluggable SFP+ footprint

4.Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector

5.Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector

6.Applicable for 10km SMF connection

7.Low power consumption, < 1W

Operating case temperature:

Commerical:0 to 70 °C Industrial:-40 to 80 °C

Application

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other Optical Links

BIDI(WDM) SFP Transceivers

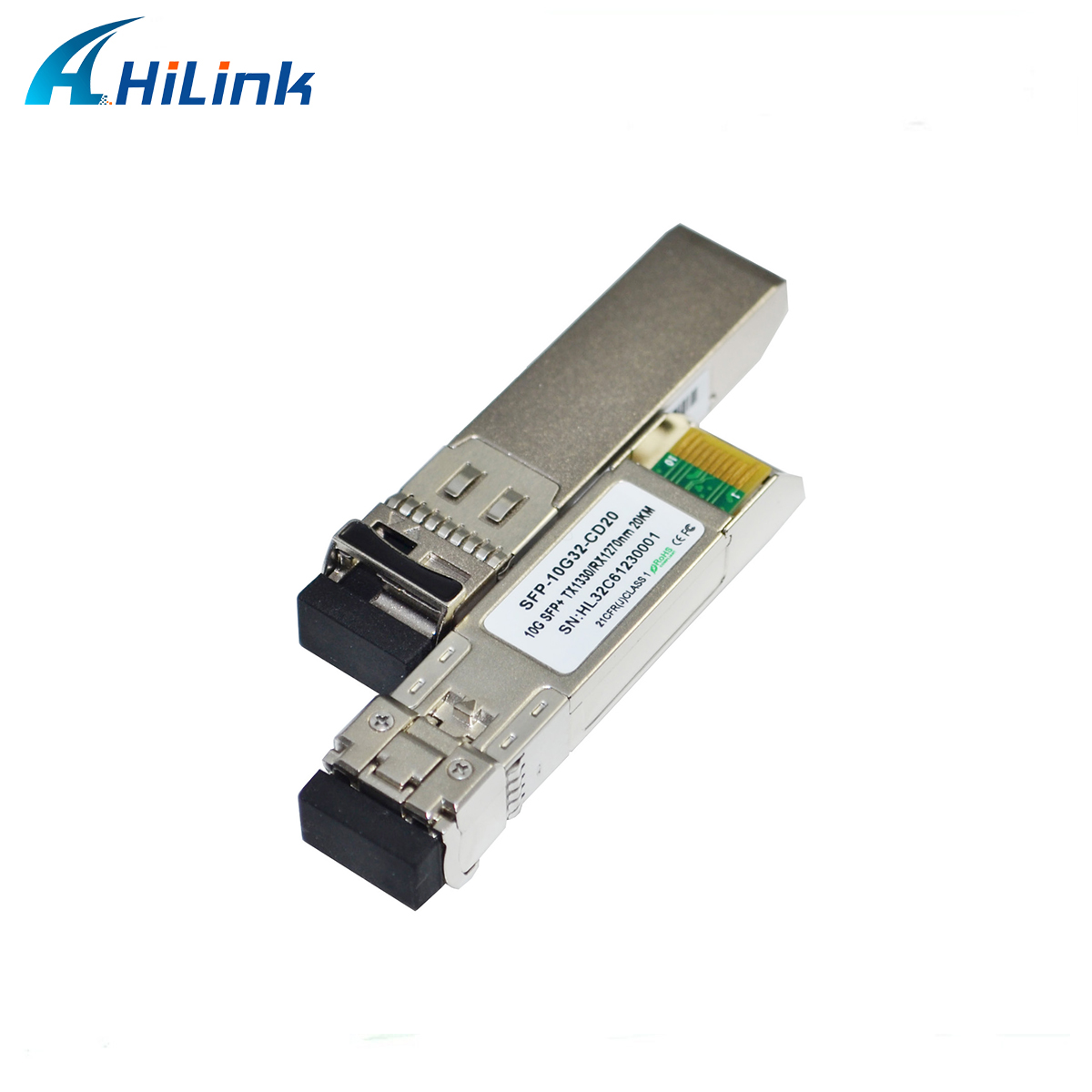

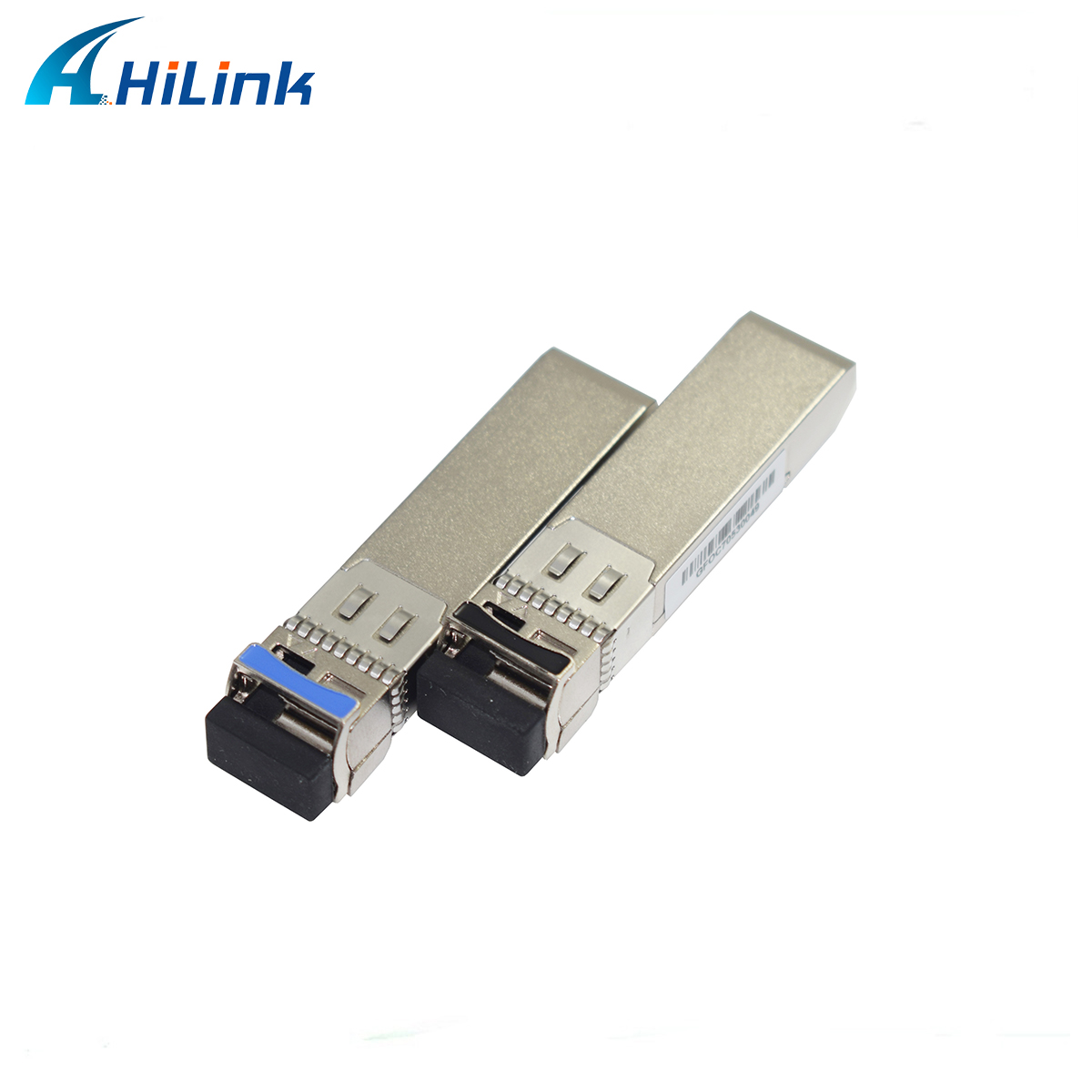

Product Picture
