| Categories | Collaborative Robot Arm |
|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert |
| Showroom Location: | None |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 |
| Warranty of core components: | 1 Year |
| Core Components: | PLC, Gearbox |
| Condition: | New |
| Place of Origin: | China |
| Brand Name: | Elite |
| Weight: | 65Kg, 17.5 kg |
| Dimension(L*W*H): | 80*80*80cm |
| Power: | 3KW |
| Warranty: | 1 Year |
| Product Name: | Mini industrial robot arm 6kg payload collaborative cnc robot arm |
| Number of axes: | 6 |
| Max payload: | 6 kg |
| Maximum reach: | 914 mm |
| Pose repeatability(ISO 9283): | ±0.02mm |
| Teach pendant: | ERP300/Android or iOS devices |
| Maximum speed: | 2.8 m/S |
| Material: | Aluminum alloy |
| Protection rating: | IP54 |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | None |
| After-sales Service Provided: | Online support |
| Certification: | CE/ROHS |
| Packaging Details: | 1 set of Mini industrial robot arm 6kg payload collaborative cnc robot arm packing with brown box , size:80*80*60, WG:80Kg |
| Port: | Shanghai |
| Supply Ability: | 100 Set/Sets per Month |
| Price: | $16,500.00/Sets >=1 Sets |

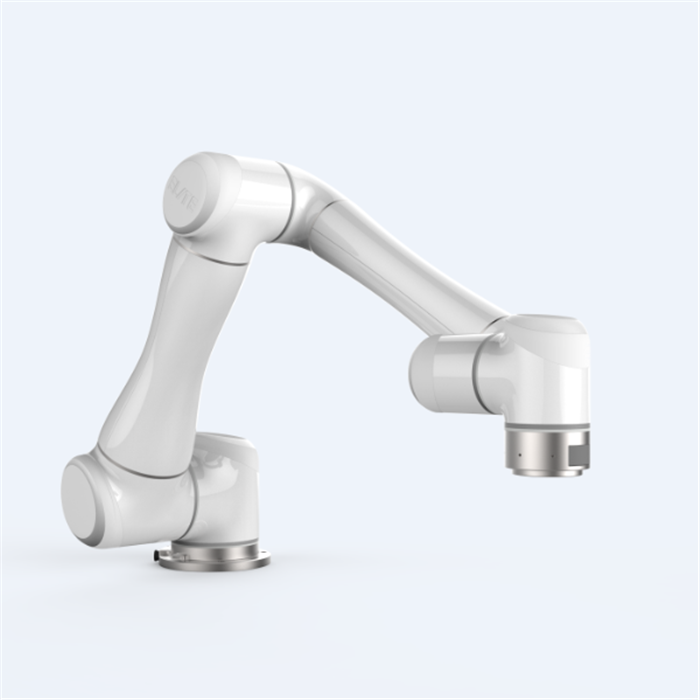

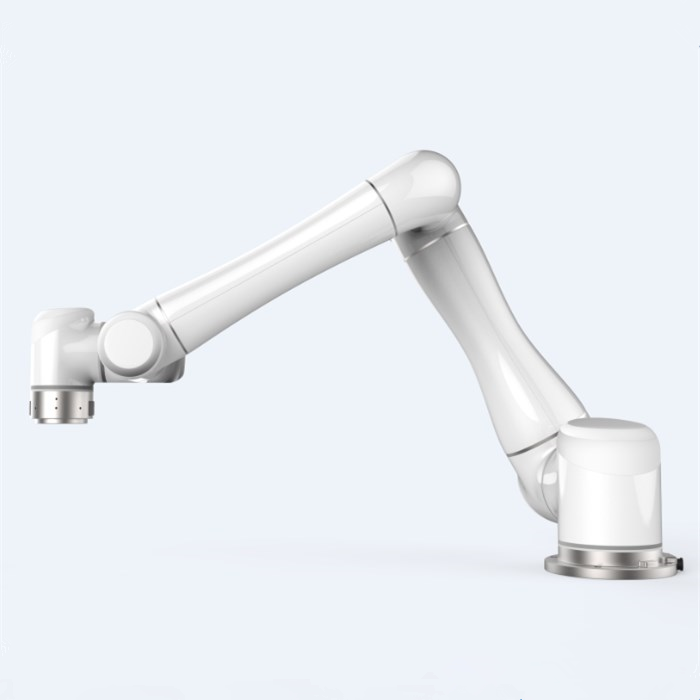

Mini industrial robot arm 6kg payload collaborative cnc robot arm
| Product name | Mini industrial robot arm 6kg payload collaborative cnc robot arm | |
| Application | Mini industrial robot arm, cnc robot arm | |
| Self weight | 17.5Kg | |
| Payload | 6Kg | |
| Degree of freedom | 7 | |
| Working radius | 914mm | |
| Joint angle of rotation | ± 175° | |
| Maximum speed | 2.8 m/S | |
| Pose repeatability | ± 0.02mm | |
| Voltage | 48 V | |
| Power | about 250W | |
| Material | Aluminum alloy | |
| Working temperature | 0-50°C | |
| Working environment humidity | 5% - 95% | |
| Protection rating | IP54 | |
| I/O port | Digital input | 16 |
| Digital output | 16 | |
| Analog input | 2 | |
| Analog output | 4 | |
| controller | Size | 450x135x350mm |
| Weight | 15kg | |
| power | AC220V | |
| Protection rating | IP40 | |
| Teach pendant | ERP300/Android or iOS devices | |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
|
