| Categories | Electric Linear Actuators |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-PAT-13 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | negotiable |
| Price: | 29-299 USD/PCS |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 10000 PCS per month |
| Delivery Time: | 20 Days |
| Packaging Details: | Paper gift box, 8 PCS/Carton |
| Voltage Related: | 12/24V DC; 24V DC (PTC) |
| Max load: | 3,500N (push); 2,000N (pull) |
| Max. speed at max. load: | 3.1mm/s |
| Operational temperature range: | +5˚C~ +45˚C |
| Color: | Sliver |
| Warranty: | 1 Year |
| Customization: | Available |
| IP rating: | IP66 |
| Company Info. |
| LINSHENG INTERNATIONAL ENTERPRISE CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
The LS-PAT-13 electric linear actuator is compact, quiet and powerful. It is designed to fit in an area specifically requiring a right angle motor and can be equipped with a Hall sensor for feedback.
| Linear Actuator | LS-PAT-13 |
| Voltage of motor | 12/24V DC; 24V DC (PTC) |
| Maximum load | 3,500N (push); 2,000N (pull) |
| Maximum speed at full load | 3.1mm/s |
| Max. speed at no load | 36.9mm/s |
| Retracted length | |
| Output sinals | Hall sensor(s) |
| Color | Sliver |
| Operational temperature range | +5°C~+45°C |
Application
Industrial or furniture applications

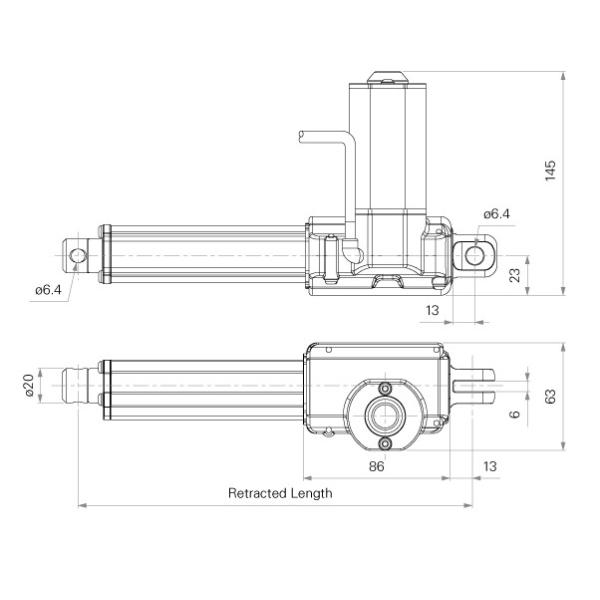

Drawing Of Electric Linear Actuator
Standard Motor Dimension (mm)
Short Motor Dimension (mm)
|
