Categories | Fluid Bed Dryer |
---|---|
Brand Name: | SNYNXN |
Model Number: | FG 3 |
Certification: | CE ISO GMP, ISO 9001 Certification |
Place of Origin: | JIANGSU, CHINA |
MOQ: | 1 set |
Price: | USD10000-100000/SET |
Payment Terms: | L/C, T/T, |
Supply Ability: | 500 SETS/YEAR |
Delivery Time: | 50 - 90 DAYS |
Packaging Details: | Film Wrapping, Wooden Case. |
Product name: | Fluid Bed Dryer, Fluidized Bed Dryer |
Capacity: | 1.5-4 kg/batch |
Type: | Fluid Bed Drying Equipment |
Power(w): | 2.2 KW |
Application: | Drying in Medicine Processing, Chemicals Processing, Food Processing, |
Material: | SUS304, SUS316L, Other, Stainless steel304/316L |
Usage: | Drying, Reduce Material's Moisture, fluid fluidized bed dryer price, salt/powder/particle/chemical drying |
Raw material: | Powders, granules |
Voltage: | 380V, 220v/380v, 220v-450v, 415V/50Hz/60H, 380V/50Hz |
After-sales service provided: | Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service |
After sales Service: | Online Support, Engineers available to service machinery overseas |
Description: Small Fluid Bed Dryer in Pharmaceutical Laboratory

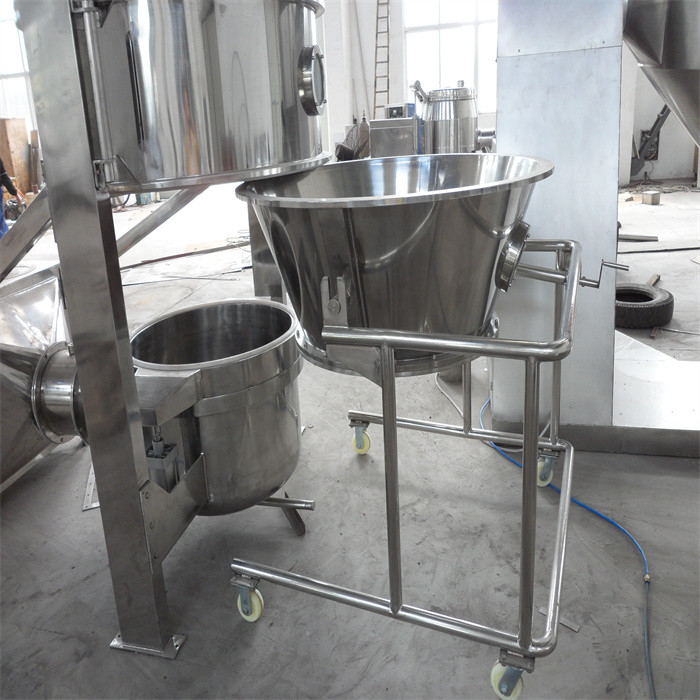

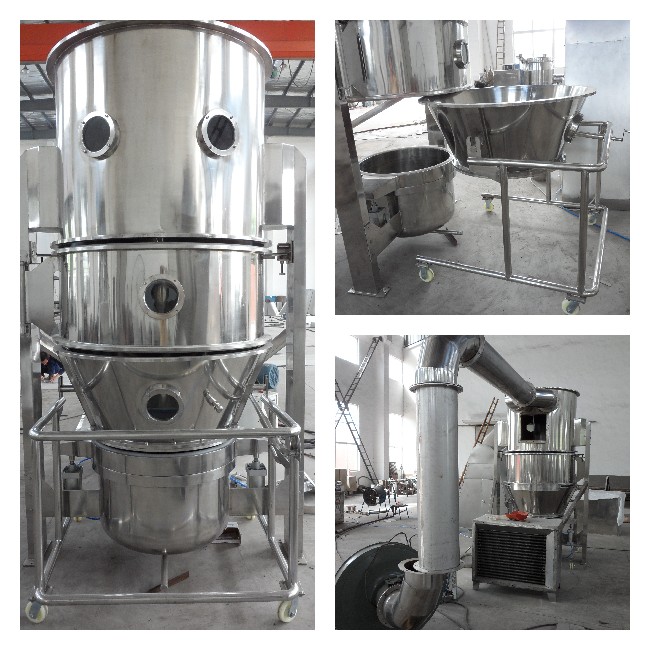

S.S316 Vertical Type Small Fluid Bed Dryer in Pharmaceutical Laboratory
Vertical Type Drying Machine Fluid Bed Dryer is batch type fluid bed drying machine for desiccated coconut
Features
1 .Fluid bed to achieve fast heat transmission of medium.
2.Seal negative pressure operation, there is no dust.
3. Because of using anti-static material as filter, it is safe in
operation;
4. The equipment has no dead corner so it is easy to clean fully
and there is no cross pollution;
5.It is conformity with the requirements of GMP.
Technical Parameter
type | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
item | unit | ||||||||||
Container of raw material | diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
Production capacity | min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
consumption of steam | kg/h | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
Power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
Temperature | ºC | 120°C (Adjustable from ambient to 120) | |||||||||
Yield | % | >99 | |||||||||
Option time | min | 1530(depends on material) | |||||||||
Content at final term. | % | -0.2( depends on material) | |||||||||
Noise | dB | ≤75 | |||||||||
Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 |
Applications
The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.
Company profile
Division I professional production of various kinds of
pharmaceutical machinery and drying equipment, our products sell
well in over 20 provinces and cities, and exported to America,
Mexico, Spain, Singapore, Russia, belarus, Egypt, South Korea,
Malaysia, the Philippines, the united Arab emirates, Thailand,
Vietnam, Pakistan, India, Iran, South Africa, Algeria, Syria,
Mongolia, Bangladesh and other countries. The company is constantly
updating and developing pharmaceutical machinery, chemical
equipment, drying equipment, mixing equipment, granulator, coater
and sewage treatment equipment and other products. With strict
testing means and a complete set of scientific management
procedures, and through the ISO9001 international quality system
certification, product quality has reached the advanced level at
home and abroad, pharmaceutical machinery products in line with
"GMP standard". Our company tenet: product quality to win with
excellence, sales and service to honesty, the contract to honor the
letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types
of machinery,
Q: Payment of terms:
