ISO7176 Wheelchair Stroller Tester Anticorrosive Multi Function

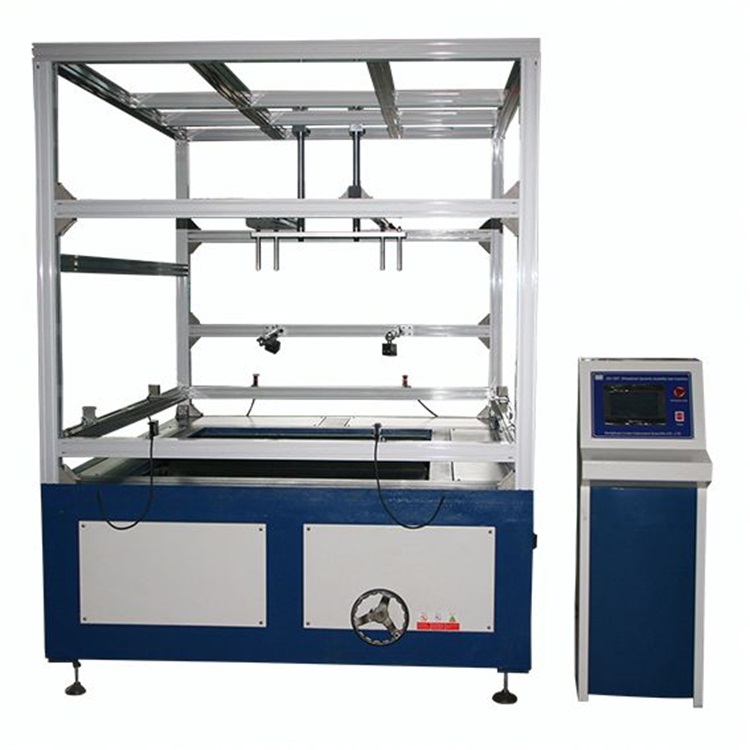

Stroller Tester Wheelchair Dynamic Durability Test Machine HZ-1227 With ISO7176

Equipment Summary:
Wheelchair Dynamic Durability Test Machine HZ-1227 executable electric wheelchairs and manual wheelchairs road test.

Technical Parameter:

Roller Diameter	ø250 mm x 2 group
Roller Length	1000 mm
Test Speed	1.0±0.1 M/s
Test rotational speed:	roller can be in any 10 ring turns at an average speed of 1.0 + / - 0.1 M/s
Support structure	the extruded aluminum frame combination
Test Model	(Conform to the ISO7176-11 standard)
Weight	25㎏, 50㎏, 75㎏, 100㎏ Back, feet, seats
Sprinkler system	has the sprinkler system simulation wet road test. Flow 4 ml/s
Impact block	with ISO7176
specification: length	40mm

◆ Each cylinder to 30 ° position drill a impact block mounting hole position
◆ The drum surface mining embossing
◆ Roller adopt chain transmission mode
◆ Roller adopt antirust surface treatment
◆ The distance between roller center is about 395 _1100 ㎜ adjustable (or designated)
◆ The wheel spacing adjustment is adopted handwheel quick adjustment method
◆ Electronic six digits counter in a group
◆ Structure body damage sensing stop with two groups
◆ Motor speed table with a group
◆ Electronic timer with a group
◆ Electromagnetic clutch with a group
◆ Test model: : (with ISO7176-11 standard)
◆ Safety device: 1.Emergency stops 2.Over current then automatic stop device 3.
The test installation position deviation then detect stop automatically
◆ Reluctance brake a group can simulate slope control
◆ Control range:0 °ø15 °

Dongguan Lixian Instrument Scientific Co., Ltd. is one of the national leading manufacturers of advanced testing instruments, which was found in 2000 and located in Dongguan, Guangdong province of China.
Our manufacturer locate in Dongguan city,covers an area of 6000 square meters, take the lead in introducing the CNC processing center and NC lathe and other advanced equipment in 2010. Carried on several listed company lab, quality institutions,Tsinghua University, Aeronautics University's project. We have more than 3000 buyers in domestic market,succeed in eastablishing the branch companies and maintenance department in Dongguan, Shanghai, Beijing, Jinjiang, Wuhan, Chongqing, Shenyang, Changsha, in the same time, we have shoeroom and stock in Dongguan, Beijing, Shanghai company.
Our products have achieved CE/ISO/ASTM/ROSH/UL certification, exported to USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and other more than 60 countries.
Our machines are specially designed for many different material research and quality control,such as metal, textiles, rubber, adhesives, foodstuff and finished components and so on. A whole series of tests including tension, shearing, compression, flex / bending, tearing, peeling, friction, stiffness, vicat penetration and torsion are available by our machine. Throught our work hard and study, Dongguan Lixian Instrument Scientific Co., Ltd. has maked progress in the software and hardware of our machine, which accuracy has reached international advanced level and collection resolution has reached to 1/500000. Dongguan Lixian Instrument Scientific Co., Ltd. has the leading product development and reliable quality management system,which introduced the CNC processing center and CNC lathe and other advanced equipment in 2010, successfullly obtained the CMC measurement certificate and passed ISO 9001 system authentication.

The main products of Dongguan Lixian Instrument Scientific Co., Ltd. are material testing machines, salt spray testing machines, shoe testing machines, leather testing machines, packaging testing machines, mobile phone and computer testing machines, textile testing machines, rubber testing machines, stroller testing machines, and sports equipment testing machines. Our products are widely used in rubber & plastic, automobile production, medical equipment aerospace, colleges and universities, foodstuff, building materials, packing and other manufacturing industries.
