| Categories | Clear PETG Sheet |
|---|---|
| Brand Name: | Jiaou |
| Model Number: | PETG Sheet |
| Certification: | FDA, GRS, Reach, RoHS, ISO9001 |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1000 kilograms |
| Price: | Negociated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Tons Per Day |
| Delivery Time: | To Be Negotiated |
| Packaging Details: | Sample: A4 size rigid PETG with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal |

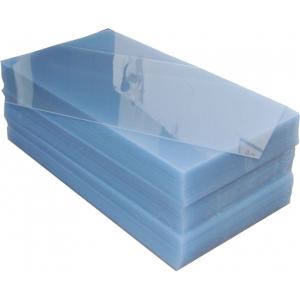

| Product Name: | Clear PETG Sheet For Medical Tray |
| Material: | PETG |
| Thickness: | 0.18-7mm |
| Size: | 2440mm |
| Origin: | China |
| Color: | Transparent |
| Application: | For Medical Tray |
| Feature: | High Gloss |
| Sample: | Available |
| Port: | Shanghai,Lianyungang,Zhangjiagang |
Clear PETG Sheet For Thermoforming
Product Description
Jiangyin Jiaou New Materials now offers clear PETG sheet. Clear PETG sheet (Polyester) can be used as an alternative to polycarbonate, solid acrylic, and PVC sheets. It provides an excellent strength-to-weight ratio, outstanding optical clarity, superior chemical resistance, durability, and fire resistance, and is 100% recyclable.
• Outstanding thermoforming characteristics, particularly in deep
draw applications
• Good impact resistance
• Less brittle than acrylic
• Resistant to common cleaners used on point-of-purchase displays
• Allows for rigid thermoforming cycle times
• FDA-compliant grades available
• Impact strength greater than acrylic and approaches polycarbonate
• 86% light transparency compared to 87% for polycarbonate and 92%
for acrylic
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity(dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity(kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption(%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min)(%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact(g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart(g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃(J/m) | 98 | ASTM D256 |
| Rockwell Hardness(℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 | ASTM D648 |
Application For PETG Sheet
Clear PETG sheet is used as a midrange-priced product between Acrylic and Polycarbonate. The clarity of PETG approaches that of Acrylic and the Impact Resistance of Polycarbonate. It also is used in Signing, Glazing, POP Displays, etc.
• Sign and graphic holders
• Point of purchase displays
• Merchandisers
• Tabletop displays
• Table tents
• Product displays
• Trays
Package & Delivery
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years of experience. If you have interests, welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Unique samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limits?
A: Normal Only 1000kgs, Special colors about 5000kgs.
A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
|
