500*500mm Outdoor Rental LED Display 3.91mm 4.81mm Stage Video Wall

Categories Outdoor Rental LED Display
Brand Name: Longrun
Model Number: 3.91mm 4.81mm
Certification: CE/RoHS
Place of Origin: Guangdong, China
MOQ: 1 Piece/Pieces
Price: Negotiable
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week
Packaging Details: Rental led display wall for rental use flightcase , carton packing is recommended.
Screen size: 500*500mm
LED type: 2020
Cabinet Resolution: 128*128
Module size: 250*250 mm
Brightness: >=1800cd/sqm
Scan method: 1/16 scan
Fresh rate: >= 3840Hz
Grey Level: 16bit
Tube Chip Color: FULL COLOR
Pixels: 3.91
Port: shenzhen
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

500*500mm Outdoor Rental LED Display 3.91mm 4.81mm Stage Video Wall

500*500mm Outdoor Rental LED Display 3.91mm 4.81mm Stage Video Wall


Ultra Light P3.91 LED Rental Screen With Die- Casting Aluminum Cabinet

Pixel Pitch :3.91mmPixel Density :65536dots/m2
Brightness :≥2000 cd/m2Viewing Angle :H:160°, V:120°
LED Specification :SMD 2121Pixel Configuration :1R1G1B
Module Size :250×250mmModule Pixel Density :64×64 dots
Driving Method :1/16 scanRefresh Rate :≥2400Hz
Gray/Color :8192Gray, Color 1billionControl System :Synchronous/off-line control system, fiber transmission
Working Voltage :AC 110/220VWorking Temperature :-20°C~50°C
Max. Power Consumption :<400W/m2Life-span :>100,000hrs
MTBF :>10,000hrsDead Dot Rate :<0.0002

Features

Light:Cabinet size 500mmX500mmX80mm, and weight 8kg/pc. Only one hand can hold it, assembly time saved.

Thin: Die-cast aluminum design, high intensity, high tenacity, high precision, unchangeable, 80mm as the thickness, normal cabinet is >130mm.

Fast: Fast locks on the four edge of the cabinet, only 180 degree rolling will lock the closed two cabinets with high precision. Easy to assemble and disassemble the cabinets, fast, reliable and beautiful, it means true quick-assembling.

Easy: Modular design, easy to assembly and maintain.Free mix Splicing with 500*500mm/500*1000mm Cabinet

Capacity:New design with exclusive cabinet, suitable for P3.91,P4.81 or more.

Low: Wonderful design for natural heat releasing, no need for fans or air-conditioner, low noise, low structure cost because of the light weight of cabinets, low power dissipation, more cost saved.

Materials & Adavantages:
1. First-class LED chip: Epistar from Taiwan.

2. Quickly service power box.

3. Support cabinets 90 degree splicing applications.

4. Support front and rear installation and back maintenance.

5. High brightness high contrast with perfect performance.

6. Stainless steel screws when assembly.

7. Long-term Brightness capacity throughout product lifetime.

8. Two years warranty.


Rental led display wall for installation wasys:

Installation ways

----1. Standing installation


----2.Hanging installation

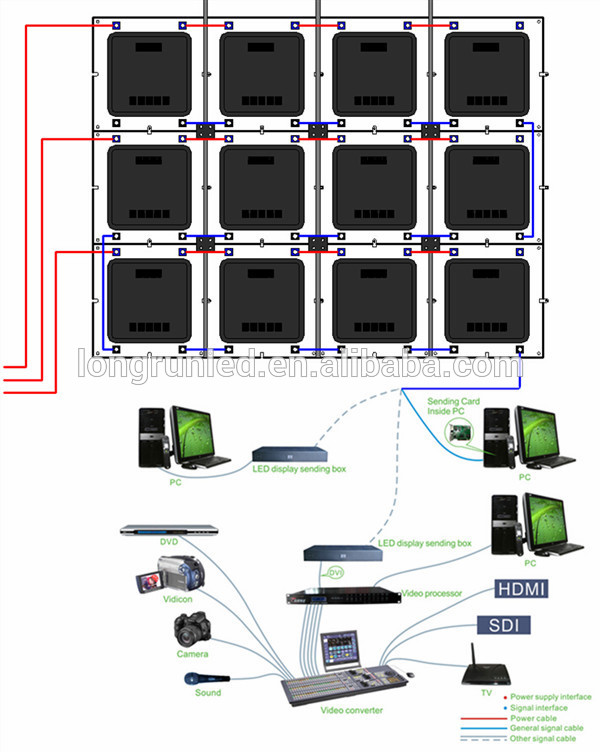

Connection skecthmap
Connection skecth map




Cabinet components
Cabinet components



1. Firm info.

Founded in 2013, Shenzhen Longrun Optoelectronic Co., Ltd. Is a high-tech enterprise of LED display integrating R&D, production and sales.Headquartered in Shajing Longrun Optoelectronic Park, Longrun registers with a capital of 30 million yuan,covers an area of more than 30,000 square meters, has an independent purification plant, research and development base,as well as the industry's most advanced production and testing equipment.

Based on meeting customers’ needs and high lighting high-tech as a core, it established a full product ecosystem: indoor COB commercial display, Strip shelf display, Outdoor common-cathode, Rental and Fixed installation full color screen.

LongRun focus on building long term, reliable, win-win relationship with customers and partners with dedicated employer, strong R&D ability, prompt market response, market-oriented creative products,and efficient service
