High Speed Metal Steel Coil Slitting Line Machine For Galvanized Steel And Stainless Steel
1. Description of Slitting Line Machine:
The whole line is consists of coil car, uncoiler, powerized straightener, powerized slitting machine, scarp winder, tension unit, recoiler and assisting support. exit coil car, hydraulic system, electrical system and so on. it can do uncoiling, straightening, slitting and recoiling works. It is controlled by PLC with computer display.
Slitting Machine is mainly used for slitting of raw materials like the Stainless Steel Strips, Steel Coil, Carbon Steel Strips, and Copper Strips. The big coils are into a smaller width coils by setting the slitting cutters on cutter stand, The main equipment’s of slitting machine are un-coiler, coil lifting trolley, Pinch roll unit, leveling unit, slitting stand, scrap winder units , tension roll unit, re-coiler, over arm separator, coil pusher, unloader etc.
2. Technical details of Slitting Line Machine:
| Bending Machine Specifications | |
| Weight | About 25 tons |
| Size | About 40000x7500x2000mm according to your profile |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils, Color steel |
| Thickness | 0.3-6mm |
| Yield Strength | 235Mpa |
| Bending machine Main Technical Parameters | |
| Controlling system | PLC and button |
| Electric Power requirement | Main motor power: 180kw |
| Hydraulic unit motor power: 15kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of Slitting Line Machine:
| No | Name | Quantity |
| 1 | Entry coil car | 1 |
| 2 | Hydraulic Decoiler | 1 |
| 3 | Press and pinch device | 1 |
| 4 | Hydraulic cutter | 1 |
| 5 | Anti-Tracking Device | 1 |
| 6 | Slitter | 1 |
| 7 | Scrap winder | 1 |
| 8 | Tension stand | 1 |
| 9 | Recoiler | 1 |
| 10 | Exit coil car | 1 |
| 11 | Hydraulic system | 1 |
| 12 | Electrical system | 1 |
4. Slitting Line Machine Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
6. Slitting Line Machine Application
This machine is widely used in a wide sheet steel coil is slit into narrower or shorter straps.

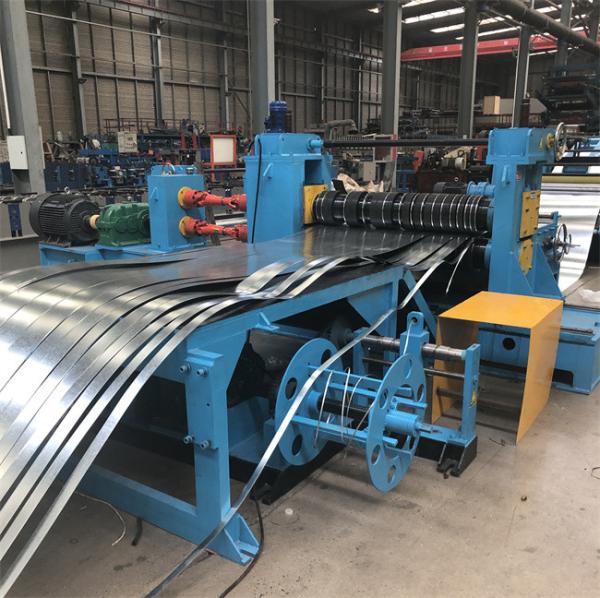

7. Slitting Line Machine Product photo
FAQ
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q. Will i receive a good machine ? Same with my wanted ?
A: Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
Q. What is your payment terms?
A: 1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
2 : We accept 100% L/C at sight
3: We accept 30% T/T, 70% L/C at sight.
4: We accept Western Union payments.
5: Other payment terms you want to pay, please let me know and i will check and reply you.
|
