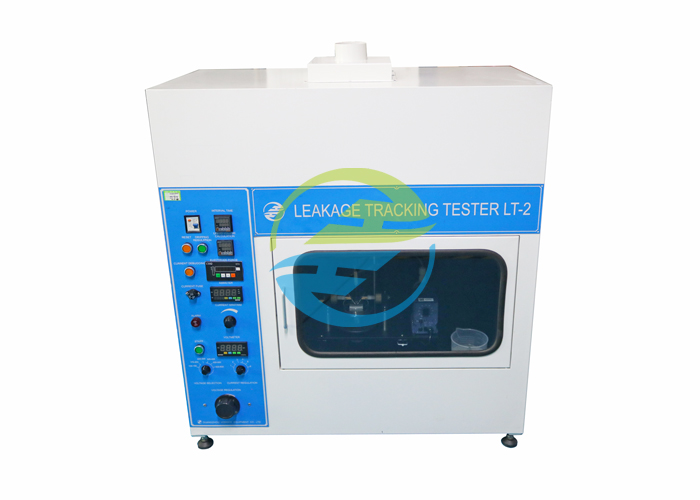

IEC60112 Flammability Testing Equipment Leakage Tracking Tester 0～600V Testing Voltage Button Operation

IEC60112 Flammability Testing Equipment Leakage Tracking Tester 0～600V Testing Voltage, Button Operation

Standard:IEC60112-2009, UL746A, IEC60335-1, IEC60598-1 and ASTM D3638-92. Flammability Testing Equipment

Application:It is used to evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the comparative tracking index (CTI) and proof tracking index (PTI). Flammability Testing Equipment

Test sample:Lighting equipment, low-voltage electrical appliances, household electrical appliances, machine tools, electrical appliances, electric motors, electric tools, electronic instruments, electrical instruments, information technology equipment, insulation materials, engineering plastics, electrical connectors, accessories industry.

Feature: The working principle of the leakage tracking test(tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm ) and required time (30s) drops with the voltage between the platinum electrodes (2mm× 5mm )on the surface of solid insulating material. Thus the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the comparative tracking index (CTI) and proof tracking index (PTI). Flammability Testing Equipment

Parameters:
