Wireless Communication Module ESP8684-WROOM-03 WiFi And BT Dual-Mode Module

Wireless Communication Module ESP8684-WROOM-03 WiFi And BT Dual-Mode Module

Description

ESP8684-WROOM-03 is a general-purpose Wi-Fi and BLE module. The rich set of peripherals and high performance make this module an ideal choice for smart homes, industrial automation,health care, consumer electronics, etc.
ESP8684-WROOM-03 can be vertically soldered to a PCB board via wave soldering. The module has 8 available GPIOs.
ESP8684-WROOM-03 comes with a PCB antenna.

Applications

Health Care
Health monitor
Baby monitor
Smart Agriculture
Smart greenhouse
Smart irrigation
Agriculture robot
Retail and Catering
POS machines
Service robot
Generic Low-power IoT Sensor Hubs
Generic Low-power IoT Data Loggers

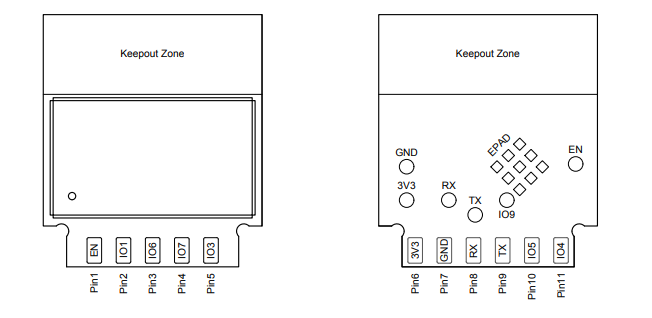

Pin Layout

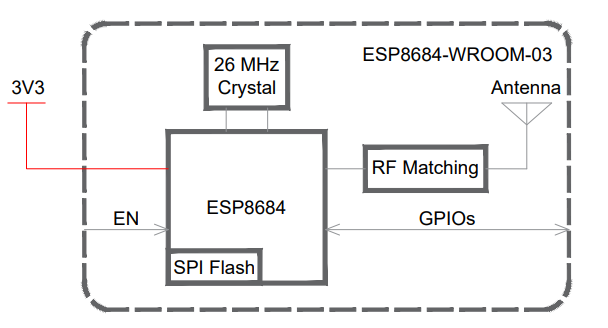

Block Diagram
