Wireless Communication Module ESP8684-WROOM-05 2.4GHz Wi-Fi And BT 5.0 Module

Wireless Communication Module ESP8684-WROOM-05 2.4GHz Wi-Fi And BT 5.0 Module​

Description

ESP8684-WROOM-05 is a powerful, generic Wi-Fi and BT LE module. This module is an ideal choice for smart homes, industrial automation, health care, consumer electronics, etc.
ESP8684-WROOM-05 comes with an on-board PCB antenna. It can be mounted onto the surface of a PCB board or connected to a PCB board via pin header.

Features

• 32-bit RISC-V single-core processor, up to 120 MHz
• Supports 20 MHz bandwidth in 2.4 GHz band
• 1T1R mode with data rate up to 72.2 Mbps
• 3 × virtual Wi-Fi interfaces
• Speed: 125 kbps, 500 kbps, 1 Mbps, 2 Mb
• 26 MHz crystal oscillator
• On-board PCB anten

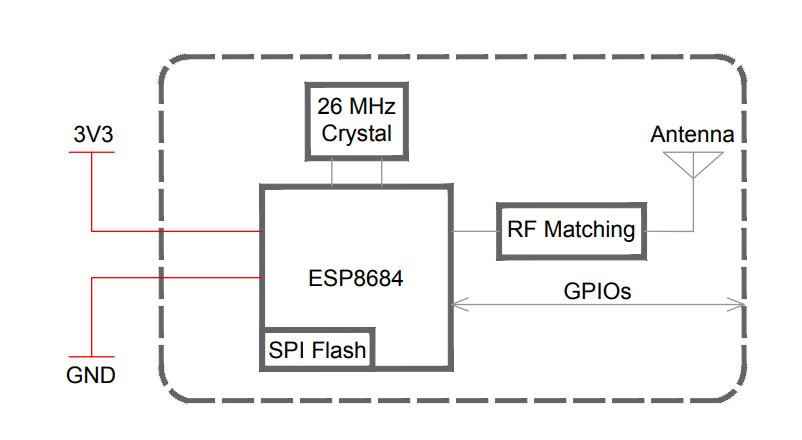

Block Diagram

Applications

• Smart Home
• Industrial Automation
• Consumer Electronics
• Health Care
• Smart Agriculture
• Retail and Catering
• Generic Low-power IoT Sensor Hubs
• Generic Low-power IoT Data Loggers

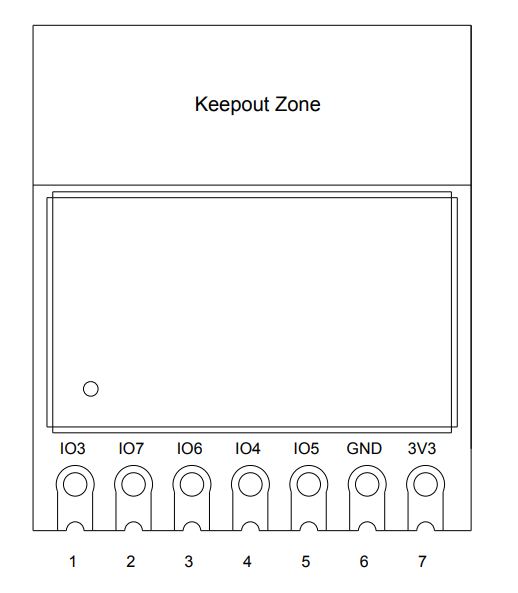

Pin Definitions
