Integrated Circuit Chip STM32WB55REV6 Multiprotocol Wireless 32-Bit MCU STM32WB55

Categories Integrated Circuit Chip
Brand Name: Original Factory
Model Number: STM32WB55REV6
Certification: Lead free / RoHS Compliant
Place of Origin: CN
MOQ: 10
Price: Contact for Sample
Payment Terms: T/T, L/C, Western Union
Delivery Time: 5-8 work days
Packaging Details: 68-VFQFN
Part Number: STM32WB55REV6
Modulation: GFSK
Frequency: 2.405GHz ~ 2.48GHz
Power - Output: 6dBm
Voltage - Supply: 1.71V ~ 3.6V
Mounting Type: Surface Mount
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Integrated Circuit Chip STM32WB55REV6 Multiprotocol Wireless 32-Bit MCU STM32WB55

Integrated Circuit Chip STM32WB55REV6 Multiprotocol Wireless 32-Bit MCU STM32WB55


Product Description

STM32WB55REV6 multiprotocol wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant with the BT Low Energy SIG specification 5.2 and with IEEE 802.15.4-2011. They contain a dedicated Arm® Cortex®-M0+ for performing all the real-time low layer operation.
STM32WB55REV6 operate in the -40 to +105 °C (+125 °C junction) and -40 to +85 °C (+105 °C junction) temperature ranges from a 1.71 to 3.6 V power supply. A comprehensive set of power-saving modes enables the design of low-power applications.

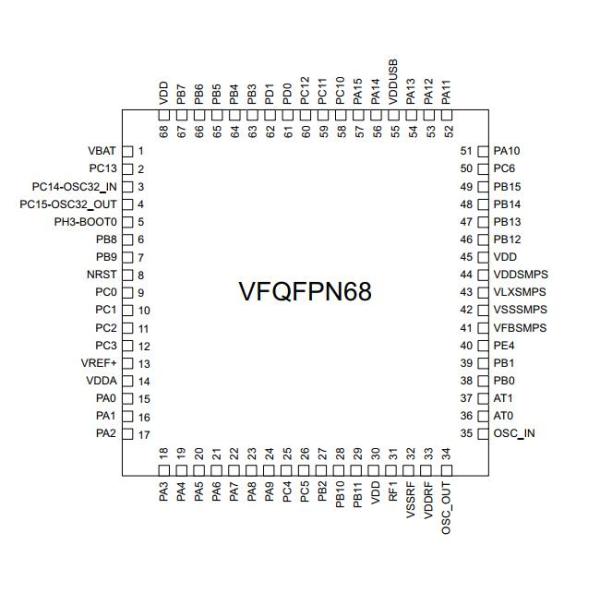

Specification Of STM32WB55REV6

SMD/SMT
VFQFPN-68
ARM Cortex M4
512 kB
32 bit
12 bit
64 MHz
49 I/O
256 kB
1.71 V
3.6 V
- 40 C
+ 85 C


Features

  • Ultra-low-power platform
  • 1.71 to 3.6 V power supply
  • – 40 °C to 85 / 105 °C temperature ranges
  • 13 nA shutdown mode
  • 600 nA Standby mode + RTC + 32 KB
  • RAM: 2.1 µA Stop mode + RTC + 256 KB RAM
  • Active-mode MCU: < 53 µA / MHz when RF and SMPS on
  • Radio: Rx 4.5 mA / Tx at 0 dBm 5.2 mA
  • Up to 1 MB Flash memory with sector protection (PCROP) against R/W operations, enabling radio stack and application
  • Up to 256 KB SRAM, including 64 KB with hardware parity check
