Brand Name: | Linsheng Auto II MaxM |
Model Number: | LS-CVPS-led |
Certification: | CE, RoHS |
Place of Origin: | CHINA |
MOQ: | negotiable |
Price: | 10-190 USD/PCS |
Payment Terms: | L/C, T/T, PayPal |
Supply Ability: | 10000 PCS per month |
Delivery Time: | 2 Weeks |
Packaging Details: | Paper gift box |
Name: | Reverse Sensor |
Operating Temperature Range: | -30°C~+70°C |
Technich Type: | Laser |
Cable Length: | 6m or 15m |
Kind: | Obstacle Detection Radar |
Test Distance: | 2.5-0.2m |
Warning Type: | LED Display |
Probe Number: | 4 |
Customization: | Available | Customized Request |
Company Info. |
LINSHENG INTERNATIONAL ENTERPRISE CO., LTD |
Verified Supplier |
View Contact Details |
Product List |
1. LED display, three mouting position for option
2. With triangulation detection
3. Automatic Self diagnostic, when senor in wrong connect or disconnect, Sensor number will show on LED display
4. Automatically ignores the bumper bar
5. Robust rubber grommet for metal bumper, brackets available
LS-CVPS-led Main Data Sheet
Working voltage | 10.5--28V DC |
Working Temp | -30 --- +80°C |
Rated voltage | 12V DC |
Rated current | 200mA Max |
Frequency | 58k HZ (Active sensor) |
Detection range | 0.3---4m |
Waterproof grade | ECU: IP66 / Sensor: IP67 |
Warranty | 3 Year |

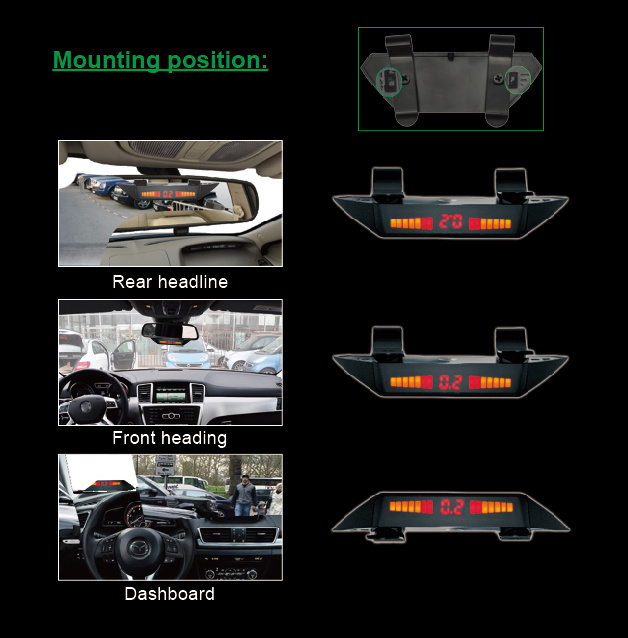

Mounting Posistion:
![]() |
