| Categories | Electric Pallet Stacker |
|---|---|
| Brand Name: | KAYOND |
| Model Number: | CDD2045 |
| Certification: | CE |
| Place of Origin: | Jiangsu,China |
| MOQ: | 1unit |
| Price: | FCA$4200-$5200 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units/month |
| Delivery Time: | 3 days for sample;10 days for 50units |
| Packaging Details: | Iron pallet |
| Name: | Electric Pallet Stacker |
| Rated loading capacity: | 1000kg-2000kg |
| Max. lifting height: | 3500-5000mm |
| Free lift height: | 1600mm |
| Fork width: | 680mm/550mm/customized |
| Battery capacity: | 24v/210Ah |
| Weight: | 900kg |
| After-sales service provided: | Online support,Video technical support |
| Warranty: | 1 Year |
| Company Info. |
| Taizhou Kayond Machinery Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Warehouse Fork Over 1 Ton Electric Stacker Full Electric Pallet Stacker
Our all-electric lift trucks have an ultra-small turning radius that solves the problem of expensive, narrow passages that large forklifts are not allowed to pass. Mainly used in various factories, warehouses, logistics storage and loading and unloading, short-distance stacking and handling.
With strength, versatility & reliability in mind, our range has been chosen to satisfy the demands of handling and warehousing professionals.
Features:
Install pedals on the economical stacker to fully take care of the usage habits of the Chinese people and reduce the labor intensity of the operators. The vehicle has a compact structure design, a shorter body length and a smaller turning radius, which is suitable for operation in a narrow space The drive system is equipped with a floating bracket, and the rear part of the body is equipped with balance wheels to ensure the stability of the vehicle.
It is used for loading and unloading pallet goods in factory workshop, enterprise warehouse, logistics and distribution center, general cabin, carriage and container.Specially designed for limited height warehouse or container.
·Curtis controller, Albright contactor, amp waterproof power connector
·Unique drive shock absorption technology, operating performance is superior
·High frequency MOS integrated control system ensures smooth control of walking and lifting

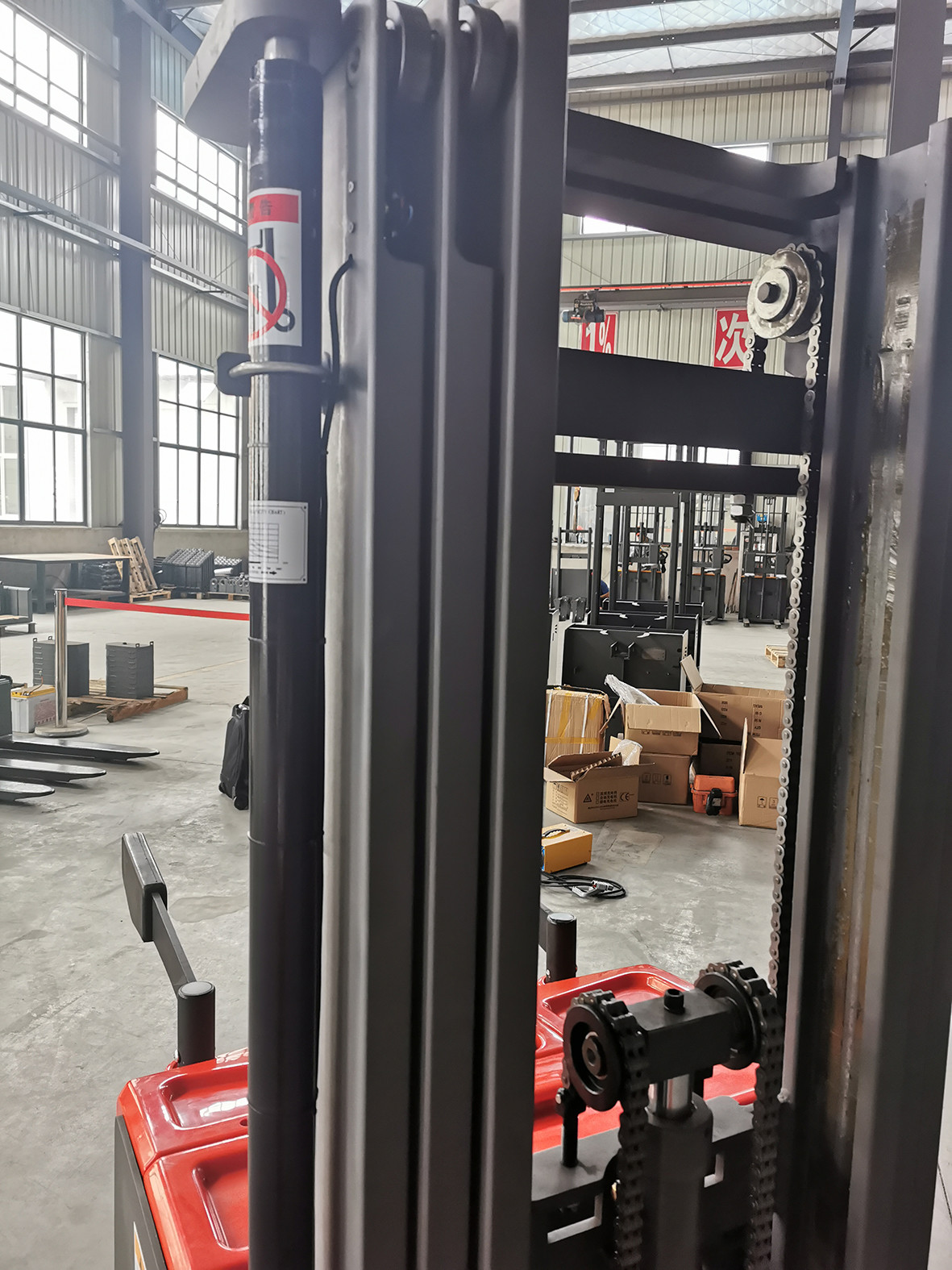

·The mast is made of forklift special section steel, which is more durable and not easy to deform.
·Pedal standing driving with shock absorber
·Electromagnetic clutch power loss brake, regenerative braking, reverse braking, anti sliding braking on ramp and other multiple braking functions
·Battery under voltage protection function and hydraulic overload protection device fully ensure the forklift working safety.
·When the fork exceeds the maximum height, the automatic power-off function ensures the safety of the operator.
·Special for cold storage
·Sleeve type adjustable fork
·Detachable and foldable safety wing
·Wide leg customization
·EPS electronic power steering
·Double cylinder
·Free lifting system
·Proportional lift syste
| Model | CDD12 CDD16 CDD20 | ||
Features | Drive system | Battery | |
| Driving mode | Standing | ||
| Load Capacity | Q(kg) | 1200/1600/2000 | |
| Load Center | C(mm) | 500 | |
| Weight | Weight(With battery) | kg | 830/880/910/940/970 |
| Wheels | Material | PU | |
Size | Lifting Height | H3(mm) | 1600/2000/2500/3000/3500/4000/5000 |
| Lowest Mast | H1(mm) | 2080/1580/1830/2080/2330/1820/2020 | |
Max.Height when operating | H4(mm) | 2080/2730/3230/3730/4230/4460/4960 | |
| Min.Height of Fork | S(mm) | ≤90 | |
| Length | L(mm) | 2130 | |
| Width | B(mm) | 850 | |
| Fork Length | L2(mm) | 1070 | |
| Wheelbase | Y(mm) | 1430 | |
| Fork Outside Width | B1(mm) | 550/680 | |
| Fork Inside Width | B2(mm) | 225/355 | |
| Min.Turning Radius | Wa(mm) | 1738/2099 | |
Performance data | Driving Speed (Empty/Full Load) | Mm/s | 6.5/5.0 |
Lifting Speed (Empty/Full Load) | Mm/s | 80/50 | |
Descending Speed (Empty/Full Load) | Mm/s | 120 | |
Max.Gradient (Empty/Full Load) | % | 6 | |
| Brake | Electromagnetic brake | ||
| Driving Motor | KW | DC/0.75/1.2/1.5 | |
| Lifting Motor | KW | DC/2 | |
| Battery | Capacity | V/Ah | 24//210 |
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your
authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance. Or
As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your
deposit. The specific delivery time depends on the items and the
quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come from
.
|
