Yokohama Air Suspension Spring S-120-3R S-120-3 F-120-3 Punch Air Bag

AIRSUSTECH F-120-3 Punch Airbag Yokohama Air Suspension Spring S-120-3R/S-120-3 Triple Convoluted

OEM Cross reference:

AIRSUSTECH Part No.: F-120-3

YOKOHAMA S-120-3R

YOKOHAMA S 120 3R

YOKOHAMA S-120-3

YOKOHAMA S 120 3

YOKOHAMA S120-3

YOKOHAMA S 120 3

YOKOHAMA S120-3R

Specifications and Detailed Technical Parameters: F-120-3

Design Height: 152mm

Max. Height: 227mm

Min Height: 82mm

Maximum stroke(mm): ±53

Max diameter(mm) :180

Standard Height,Internal Pressure 0.49 M pa When The General Value

Effective Area (Cm2): 113

Volume(L): 2.1

Load (KN):5.2

Dynamic Spring Parameters (N/mm): 98

Natural Frequency (Hz): 2.2

Max inner preesure limited (Mpa): 0.88

Burst inner pressure (Mpa): 2.9-3.9

Other types of yokohama air suspension spring S-120 series we could offer

How does air spring work

An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself.

Because an air spring consists of a closed volume of air, the compression of the air spring (jounce travel) will cause an increase in pressure, while the extension of the air spring (rebound travel) will cause a decrease in pressure.

The effect of punch airbag

The punch air bag can act as a buffer part of the punch equipment, which can well protect other parts of the punch equipment from excessive wear and tear, and will not cause the punch to break or loose parts, so that the equipment can be used for a longer time.
Therefore, we should pay attention to the cushioning effect of the airbag and whether it is leaking when purchasing a punch airbag.

Guomat is a company specializing in the production of air springs including punch airbags, all of which meet international standards. Products are exported to overseas countries.

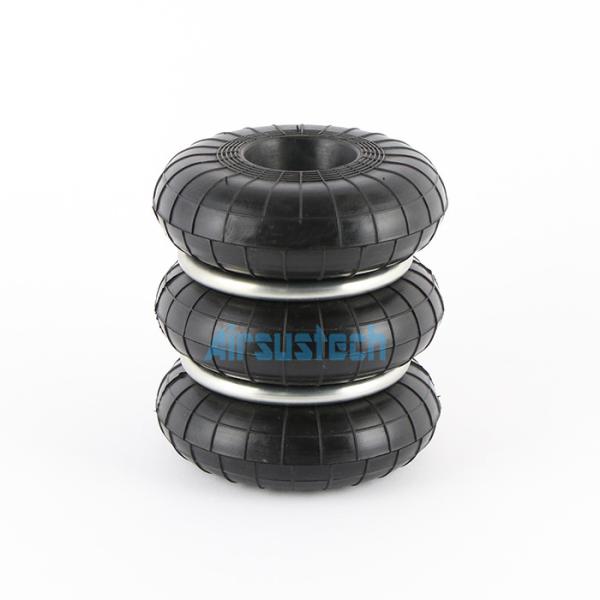

The related picture of F-120-3

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
