Unistrut C Channel Solar Rack Profile Roll Forming Machine Steel Automatically

Categories Purlin Roll Forming Machine
Brand Name: CHBEST
Model Number: XY65
Certification: CE/BV/SGS
Place of Origin: China Hebei
MOQ: 1 set
Supply Ability: 20 sets/month
Delivery Time: 30-40 days
Packaging Details: plastic film for naked machine
Product name: Automatically Unistruct C Channel Solar Rack Steel Profile Roll Forming Machine
Color: Blue or as your request
Machine speed: 15m/min without punching
Machine dimention: 11.5mx1.8mx1.4m
Warranty: 2 years
Life time: more than 10 years
Bottom frame: 400 H steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

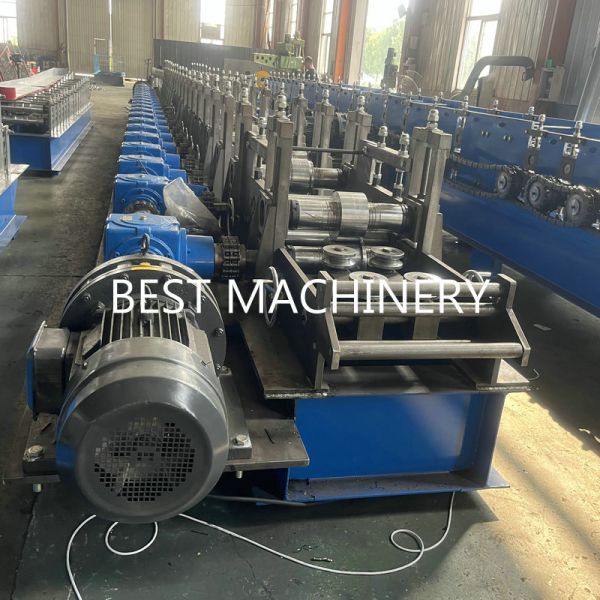

Unistrut C Channel Solar Rack Profile Roll Forming Machine Steel Automatically


Automatically Unistruct C Channel Solar Rack Steel Profile Roll Forming Machine


Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component


De-coiler1 set
Leveling device1 set
Forming machine1 set
punching device1 set
Cutting device1 set
PLC control box1 set
Hydraulic pump station1 set
Production support table1 set


Parameter

Strut Channel Roll Forming Machine (Regular Version)
Machinable Material
A) Hot-rolled And Cold Rolled Steel
Thickness(MM): 1.5-2.0, 2.0-2.5mm
B) Hot-dip Galvanized Sheet
C) Pre-Galvanized Steel
D) Mill(Plain/Black) Steel
Yield strength
235 - 345 Mpa
Tensil stress
G250 Mpa-G350 Mpa
Decoiler
Manual Decoiler
* Hydraulic Decoiler (Optional)
Punching System :
Hydraulic Punching Station
* Post Punching Or Pre-punching Option
Forming Station
19-22
* According To Your Profile Drawings
Main Machine Motor Brand
Reducer + Motor
* Servo Motor (Optional)
Driving System
Chain Drive
* Gearbox drive (Optional)
Machine Structure
Wall Panel
* Forged Iron station (Optional)
Line Forming Speed
4-6 (M/MIN)
* According To Final Configuation
Rollers’ Material
GCr15
* Cr12 (Optional)
Cutting System
Post-cutting, Machine Stop To Cut
* Tracking Cutter (Optional)
Frequency Changer Brand
Yaskawa
PLC Brand
Panasonic
Power Supply
380V 50Hz 3ph
* Or According To Your Requirment
Machine Color
Industrial Blue
* Or According To Your Requirment

Training and Installation

1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
