Plastics Pipe Drop Weight Impact Testing Machine Height 0-2000Mm

Categories	Drop Weight Impact Testing Machine
Brand Name:	GSKA
Model Number:	Drop Weight Impact Testing Machine
Certification:	CE SGS ROHS UL CE
Place of Origin:	Dongguan China
MOQ:	Negotiate
Price:	Negotiate
Payment Terms:	L/C, T/T
Supply Ability:	100 Set / Sets per Month
Delivery Time:	10-60days after confirmed payment or by contract stipulation
Packaging Details:	Export package
LBrand Name:	GSKA
Hammer mass:	0.250~10.00Kg,0.125Kg/per increase
Impact Capacity:	20gf, 30gf, 50gf, 100gf (or Specified)
orking temperature:	10~35℃
Hammer radius:	d25, d90
Height location error:	2mm, 100% prevent from second impact.
MOQ:	1 Set

Contact Now

Add to Cart

Company Info.

Guangdong ALI Testing Equipment Co,.Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Plastics Pipe Drop Weight Impact Testing Machine Height 0-2000Mm

Plastics Pipe Drop Weight Test Machine Impact Height 0-2000 Mm

standard:

Drop testing machine conforms to GB4857.5 "vertical impact drop test method" test standard

Adopt international standard 150 2248-1985 "Packaging - Vertical impact and drop test for complete and Full transport Packages"

Reference: GB/T 4857.1 Labeling method for various parts of packaging and transportation packages

GB/T4857.2 Packaging and transportation packaging temperature and humidity regulation treatment

GB/T 4857.17 General principles of preparation of performance test outline for packaging and transportation packages

GB 4857.18 Quantitative data for preparation of performance test program for packaging and transportation packages

describe:

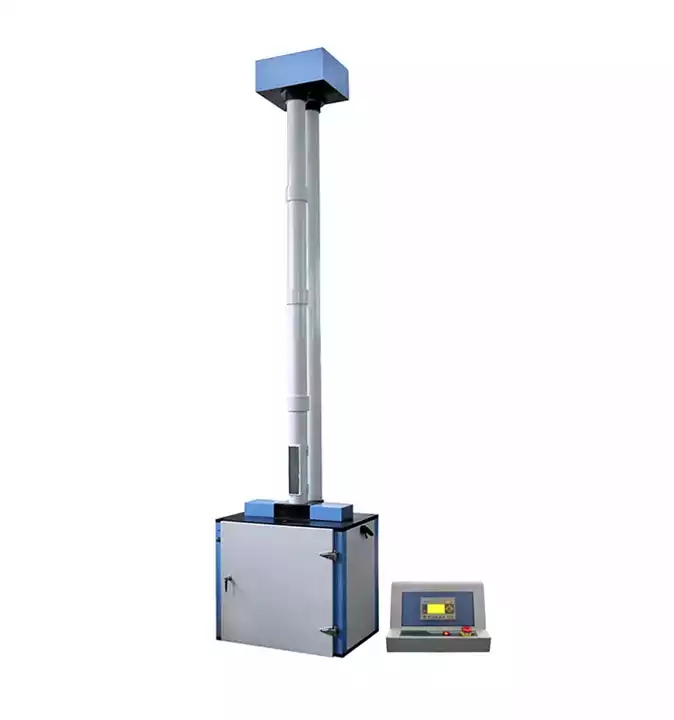

The utility model relates to a drop weight impact testing machine for plastic pipes, which comprises a host frame, a vertically fixed guide rail and a flat plate located at the lower end of the guide rail, and a through hole through which the hammer body is provided; The hammer body, including the hammer head located at the lower end, is confined to a guide rail to do free fall along the guide rail; The hammer grabbing assembly, which is limited to move on the guide rail, is used to grab the hammer body and drive the hammer body to rise and release; The lifting assembly is arranged on the upper end of the guide rail, connected with the hammer assembly and used to drive the hammer assembly up and down; The impact proof assembly is installed on the upper surface of the plate and is located at the side of the through hole for clamping or clamping the hammer falling through the through hole of the plate; The test table is arranged under the through hole of the plate for placing the sample to be tested, and the upper side of the sample is close to the lower surface of the plate. In accordance with the national standard GB/T14152-2001 thermoplastic pipe external impact resistance test method for test equipment requirements.

Specifications:

Max. Height(mm)	2000
Max. Size	DIA400
Hammer mass	0.250~10.00Kg,0.125Kg/per increase
Specimen diameter	10~400 mm, 10~630 mm (outer diameter)
orking temperature	10~35℃
Hammer radius	d25, d90
Impact height	0-2000 mm
Height location error	2mm, 100% prevent from second impact.
Power	AC 380V±10% 5A;2KW

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair

FAQ:

1. How about your warranty?

Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

2. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

3. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

4. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
