Clinical Laboratories Fully Automated HbA1c Analyzer Diabetes Control Analyzer

Categories HPLC HbA1c Analyzer
Brand Name: LABNOVATION
Model Number: LD-560
Certification: IFCC, NGSP, CE
Place of Origin: Shenzhen, China
MOQ: 1 Unit
Price: Negotiation
Supply Ability: 100 Units/Day
Delivery Time: 10-15 working days
Packaging Details: Carton Size: 480mm×480mm×615mm, Gross Weight: 28kgs
Producat Name: Fully Automated HbA1c Analyzer Diabetes Control Analyzer For Small To Medium Clinical Laboratories
CV Value: <2%
Test Time: 90s/test
Sample Capacity: 20 samples
Sample types: Whole blood or Pre-diluent blood
Test Method: HPLC (High Performance Liquid Chromatography)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Clinical Laboratories Fully Automated HbA1c Analyzer Diabetes Control Analyzer

Fully Automated HbA1c Analyzer Diabetes Control Analyzer For Small To Medium Clinical Laboratories


LD-560 Fully Automated HbA1c Analyzer Diabetes Control Analyzer For Small To Medium Clinical Laboratories provides comprehensive, fully automated HbA1c and HbA2/F testing with a compact footprint within 90 seconds per test. Designed for clinics, physician offices, and clinical laboratories with small to medium sample volumes of 10-50 daily samples, fits in almost any labs and saves valuable bench space.


Specification

NameFully Automated HbA1c Analyzer Diabetes Control Analyzer For Small To Medium Clinical Laboratories
ModelLD-560
MethodologyHigh-Performance Liquid Chromatography (HPLC)
Test ModesFast Mode, Variant Mode
Test Range3% - 18%
Precision (CV)<2%
ParameterHbA1c, HbF, HbA1a, HbA1b, HbA0, HbA2(Optional)
First Sample Result4 Mins
Test SpeedFast Mode: 90 Seconds/Test
Variant Mode: 140 Seconds/Test
Sample TypeWhole blood, Pre-diluted blood
Sample VolumeWhole blood: 5μL
Pre-diluted blood: 150μL
Sample loading capacity20
Photometer420nm
Column Capacity3000T
Filter Capacity600T
Display10“ LCD touch screen
Reagent KitEluent A, Eluent B, Eluent C, Hemolysis, Chromatography Column
Storage5000 Sample Results
Connection interfaceUSB, LAN, LIS Compatible
PrinterThermal Printer

System operation
environment

Temperature 15-30℃
Humidity 30%-85%
PowerAC 100-240V 50/60HZ 300VA
Dimensions378mmx380mmx510mm
Weight28Kgs



Performance


HPLC Technology - Gold Standard Methodology Fully Automated - To Minimize Operation Hassles
• NGSP and IFCC certified • Primary Tube Sampling with Cap Piercing
• HbAlc results in 130 seconds • Fully Automated Start-up, Maintenance

• Barcode Scanner for Sample identification

Precise and Reliable - To Serve You Consistently Compact Size - To Minimize Space Requirements
• HbAlc Inter & Intra Measuring CV's≤3%to • Small Footprint Reduces Bench Space Needed

EnableExceptional ResultManagement
• SuperiorQuality Chromatographic Resolution to

Eliminatelnterferences



HPLC Methodology

High-Performance Liquid Chromatography (HPLC), to separate HbA1c directly with measuring the absorbance points continually to form chromatogram. Using normal distribution curve fitting auto-iterative algorithm to get precise HbAlc testing result, excluding interference of variant and unstable hemoglobin like HbF. Standard Analysis Mode will report HbA1a, HbA1b, HbF, HbA1c, P3, HbA0 peak areas and ratio. And the result also includes IFCC, NGSP and eAG value for diverse client needs.

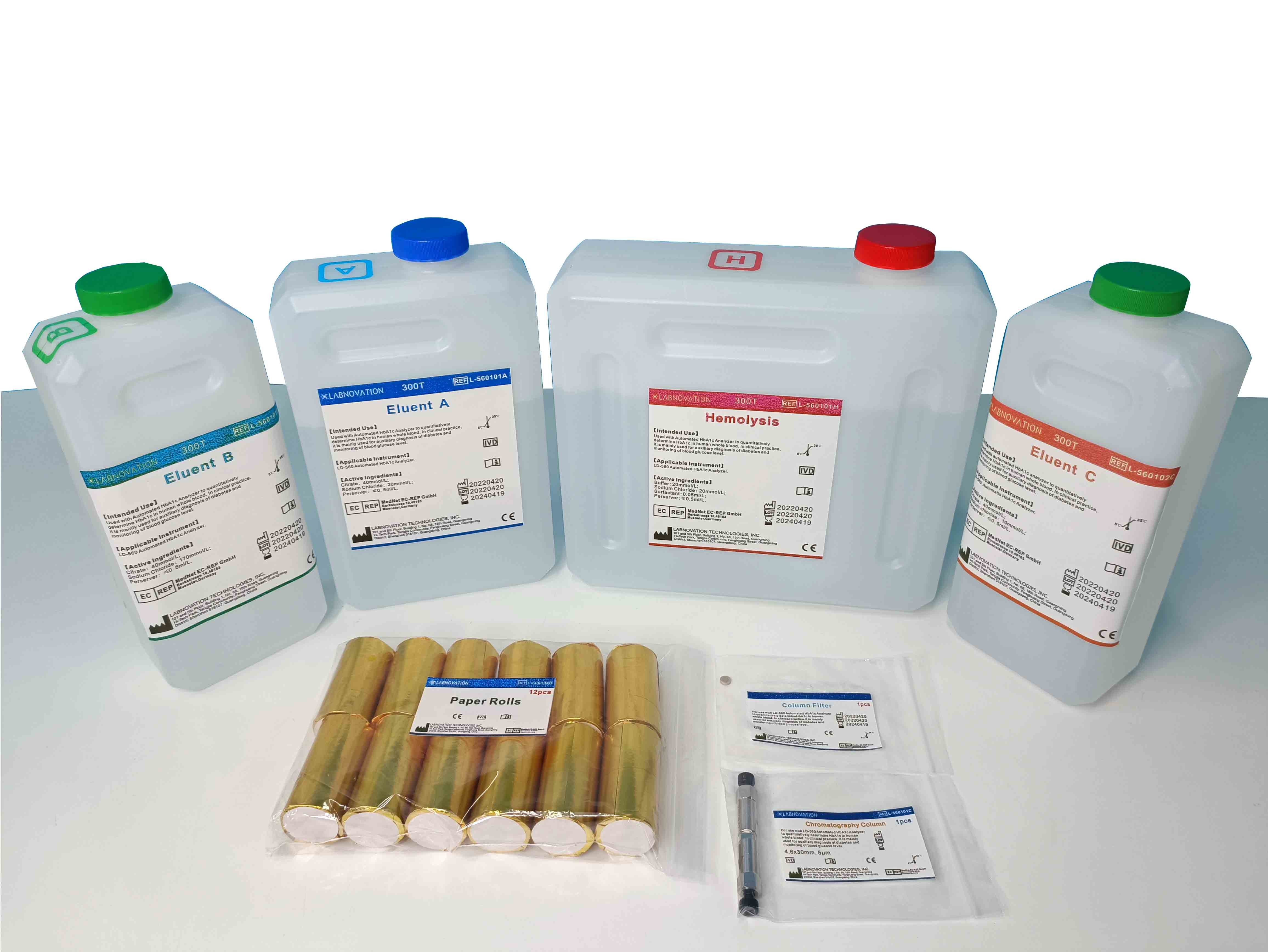

Reagents and Consumables

The analyzer is recommended to be used in conjunction with the Glycosylated Hemoglobin Test Reagent Kit (high performance liquid chromatography (HPLC method)) produced by our company, which includes the following components:

600T: Eluent A/Eluent B/
Eluent C(Variant Mode)

Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin.
600T: Hemolysis ReagentUsed to dissolve red blood cells and release hemoglobin.
3000T: Chromatography ColumnUsed for separation and elution of glycosylated hemoglobin and non glycated.
600T: Hemoglobin FilterUsed to initially filter the sample after hemolysis.
12Pcs: Paper RollsPrints a report of the test results.

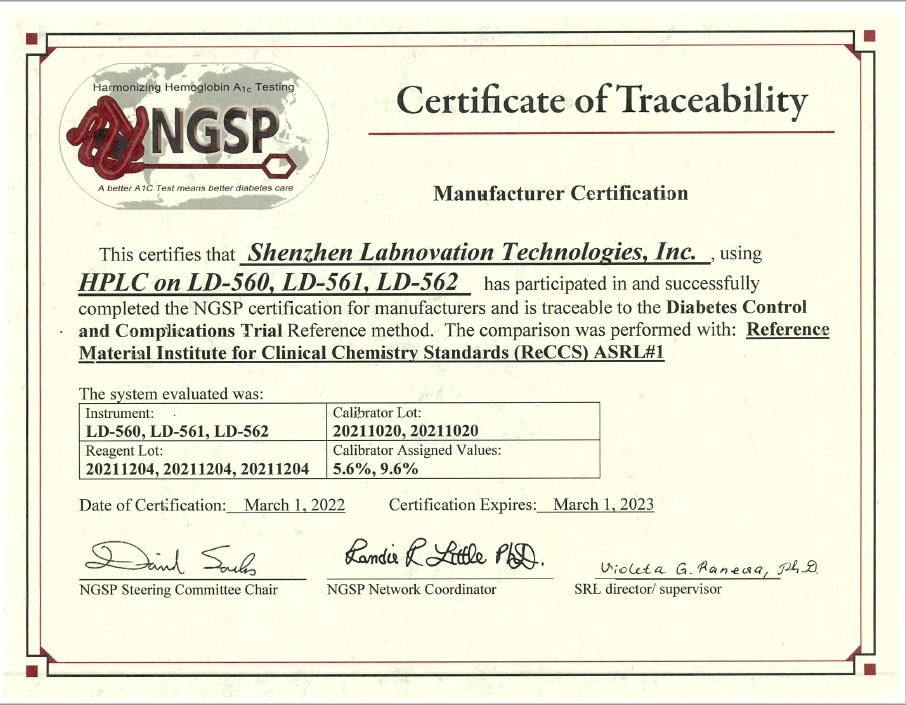

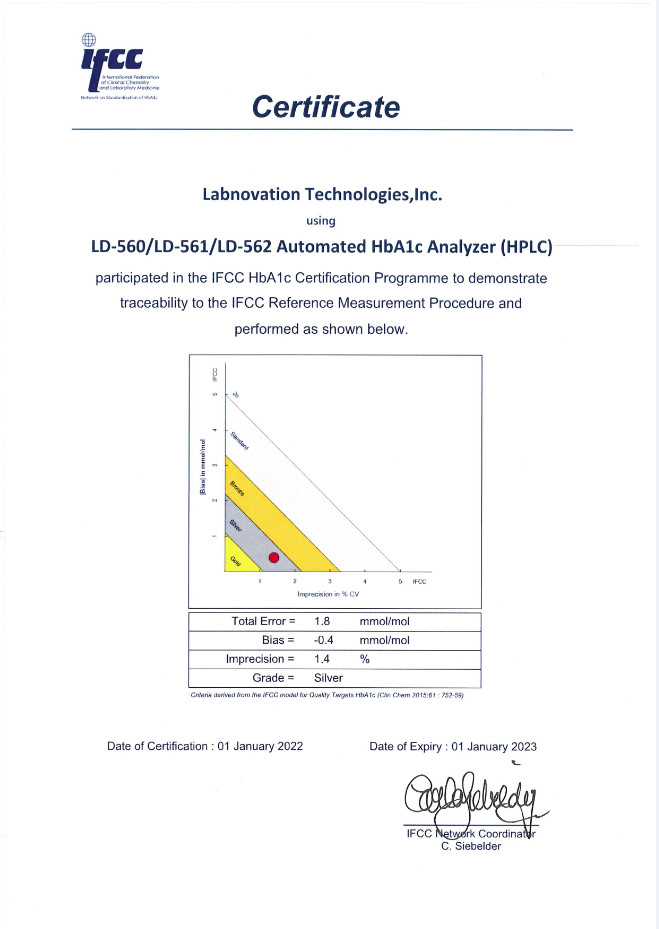

Certificate
