7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

Categories	Truck seat & partsparts
Model:	OTHER
Year:	OTHER
Type:	General Seat
Material:	Cloth and cloth
Car Fitment:	OTHER
Size:	stardard
Place of Origin:	Shaanxi, China
Brand Name:	HWHongRV
Model Number:	HT911-50
Weight adjustment:	40-130Kg
Backrest adjustment:	80+41°
Head restraint adjust range:	75mm
Height adjust range:	65mm
rake adjustable:	±14°
Mechanical suspension stroke:	±30mm
Horizontal adjustment stroke:	0±120mm
option accessory:	armrest,pneumatic (electric) massage; electric heating; ventilation
cover:	Black imitation leather or cloth fabrics
Keywords 1:	air ride truck seats air ride truck seating
Packaging Details:	carton
Port:	shanghai
Supply Ability:	3000 Piece/Pieces per Month
Price:	$450.00/sets 1-9 sets

Contact Now

Add to Cart

Company Info.

Xian Huihong Vehicle Parts Company Limited

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

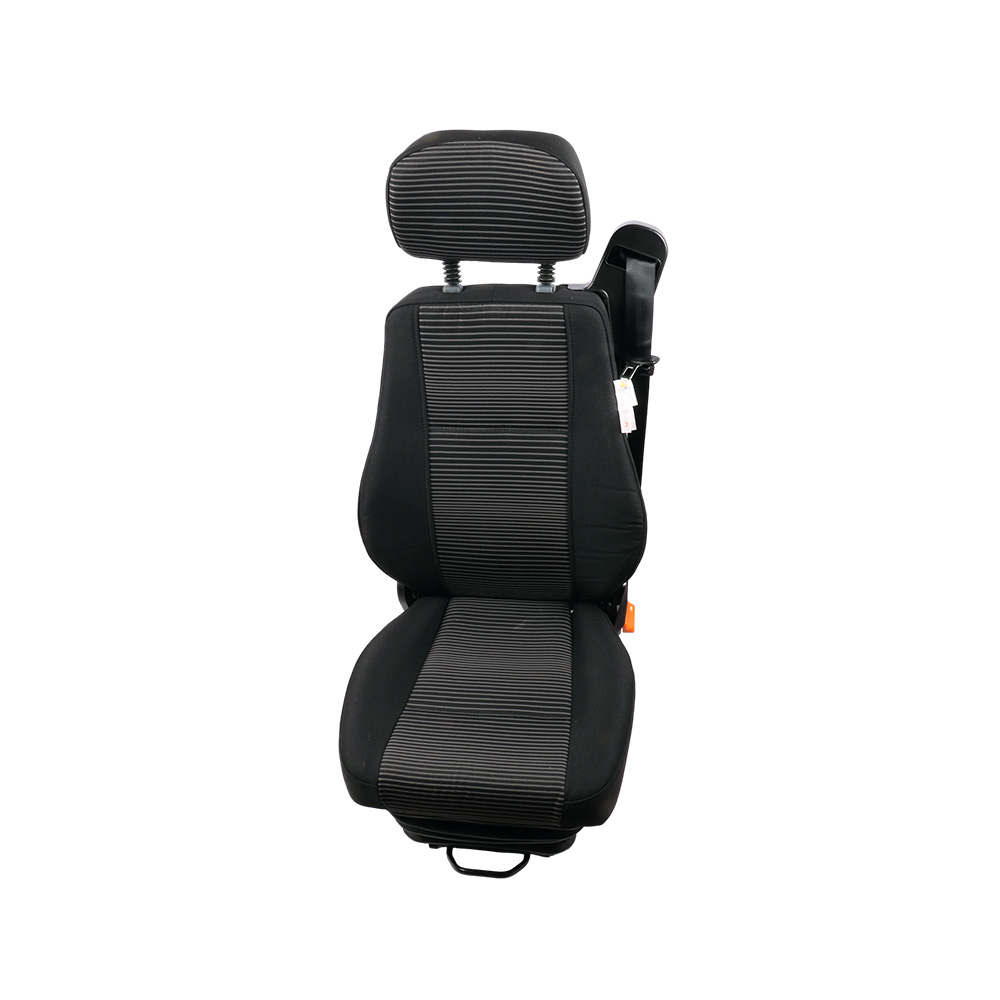

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

Specification

* Seat size: (L×W×H) 630×540×1160
* Weight adjustment: Left hand side adjuster, (right hand side adjuster and front adjuster are optional)adjust range 40-130Kg
* Backrest adjustment: left adjust (right adjuster is optional), 80+41°
* Head restraint adjustment: adjust range 75mm (25mm×3)
* Height / rake adjustment: Left hand side adjuster, (right hand side adjuster is optional), front end 7 levels height adjust
range 65mm; rear end 7levels height adjust range 65mm ,the front and rear ends are matched with adjustable seat cushion ,rake
adjustable ±14°
* Mechanical suspension function: stroke ±30mm
* Horizontal adjustment: stroke 0±120mm
* Cushion height (working state) 295mm Cushion width 495mm Cushion depth 465mm

High backrest 895mm
* Wear a rubber dust cover under the cushion
* With seat belt fixing points, the three-point seat belt can be arranged on the seat as a whole, and the height of the retractor
can be appropriately increased (or rear-mounted) to meet the special needs of vehicle layout
* Fabric: Black imitation leather, other fabrics are optional
* Connect size:（F/B×L/R）（280*216mm）or (295.5*216mm )

·Optional: handrails (single and double); pneumatic (electric) massage; electric heating; ventilation;

Product Description

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons. we can also pack it as your requirement.
Q2. What is your terms of delivery?
A: EXW,FOB or CIF according to the different conditon.
Q3. How about your delivery time?
A: Generally, it will take 1 to 50 days after receiving your payment, we always has goods in rich stock,but specific delivery time
depends on the items and the quantity of your order.
Q4. What is your terms of payment?
A: As for the big amount,T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.what is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
