Non Visual One To One Intercom Doorbell EMC Approved Lock Function

Name: Non Visual One To One Intercom Doorbell EMC Approved Lock Function
Brand: LENYO
Price: 9 USD

Non Visual One To One Intercom Doorbell EMC Approved Lock Function

Categories	Audio Video Doorbell
Brand Name:	LENYO
Model Number:	3208C
Certification:	CE FCC EMC LVD
Place of Origin:	China
MOQ:	100
Price:	9-11usd/pcs
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/day
Delivery Time:	5-30days
Packaging Details:	color box
Product name:	Audio doorphone
Connection:	2-wire Cable
Unlock:	Yes
Power:	AC100-240V/ DC 12V
Color:	White/Customized

Contact Now

Add to Cart

Company Info.

Shenzhen Lenyo Display Technology Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Non Visual One To One Intercom Doorbell EMC Approved Lock Function

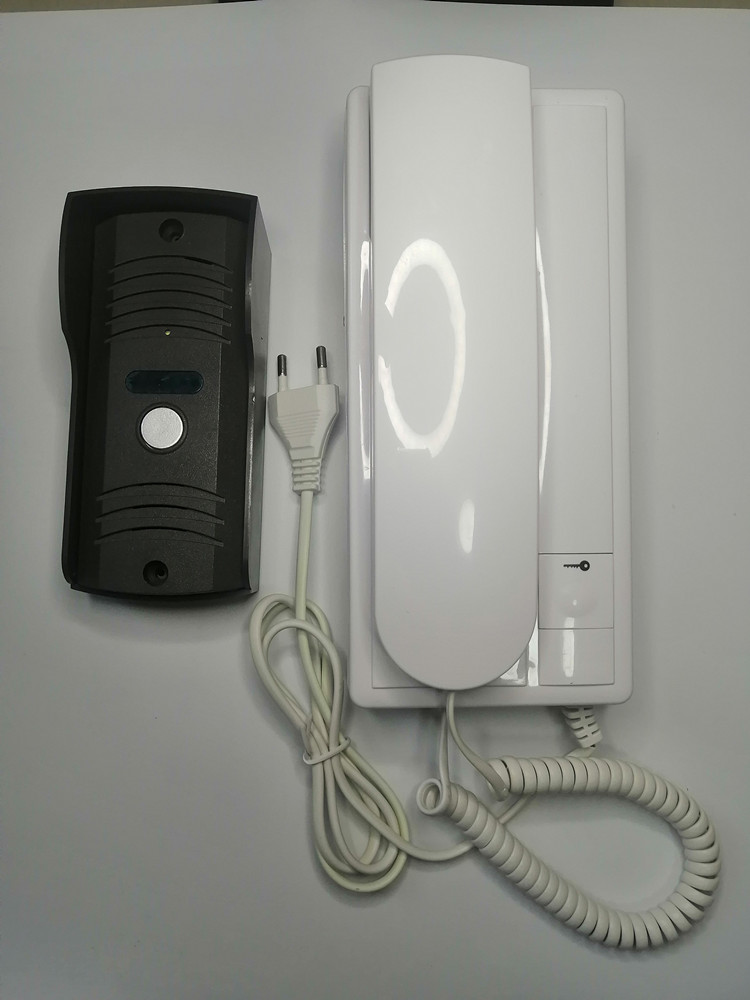

Non-visual One-to-one Intercom Doorphone Wired Two-way Audio Video Doorbell

Two way intercom, one way call and lock function
Two wire connection
With a new ABS plastic, durable
Excellent consumer side of the tone circuit, intercom voice
clarity
Effective distance of 300 meters above intercom

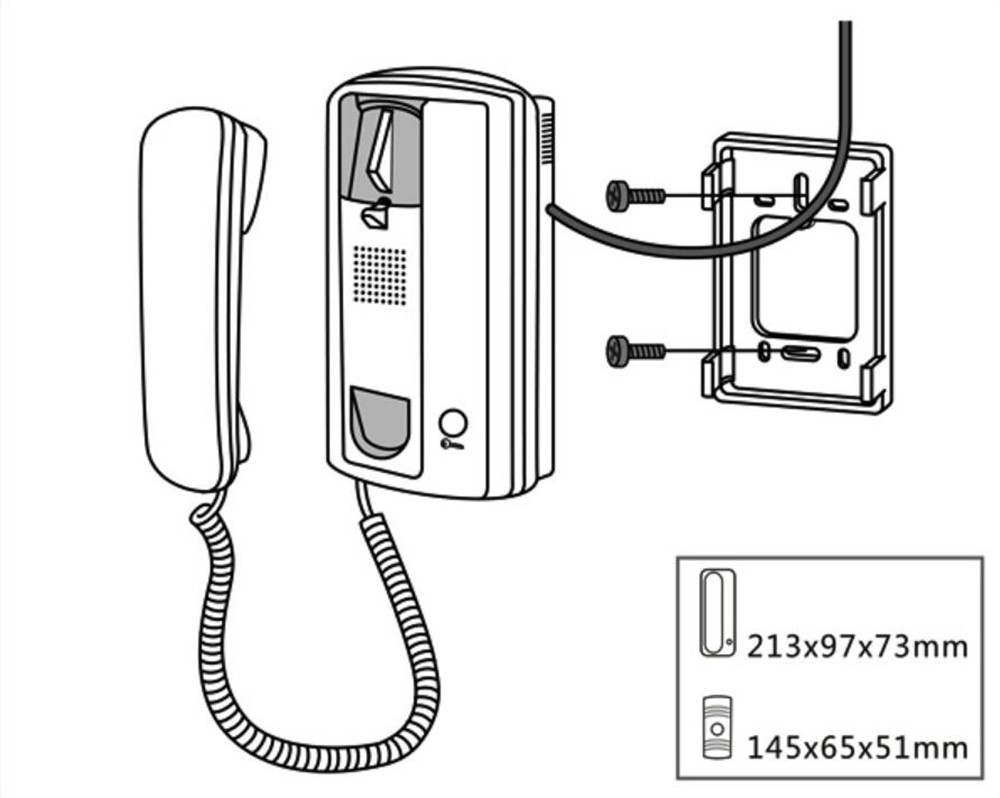

Easy installation easy use
Specification
2wire auido doorphone intercom1. Audio distortion rate of 50mW
Talk time: unlimited, free calls
Input voltage: AC220V 50Hz, Output voltage: AC12V 1200mA
Frequency response: 300 ~ 3400HZ
Working voltage: DC12V
Power consumption: static <0.2W, call status <2W

The connecting line effectively intercom wiring requirements:

● 100 meters: RVV2(2 pin) x 0.5 square millimeters
● 150 meters: RVV2(2 pin) x 0.8 square millimeters
● 250 meters: RVV2(2 pin) x 1.0 square millimeters
● 300 meters: RVV2(2 pin) x 1.5 square millimeters

Output sensitivity
<60mV(Frequency 1000Hz)
Frequency Response
+/-3ddB(300Hz-3400Hz)
Noise voltage
<10mV
Ring sound level
>70dB(AT 0.5m)
Quiescent current
<5uA
Intercom working current
<100mA
Input voltage
Plug into 110VAC power or insert 4 cells of R6P size AA 1.5V
(alkaline) into the cabinet of both the talkback pair.

Product Tags:

One To One Intercom Doorbell

EMC One To One Intercom

One To One Doorbell Intercom

Non Visual One To One Intercom Doorbell EMC Approved Lock Function

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Lenyo Display Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Output sensitivity	<60mV(Frequency 1000Hz)
Frequency Response	+/-3ddB(300Hz-3400Hz)
Noise voltage	<10mV
Ring sound level	>70dB(AT 0.5m)
Quiescent current	<5uA
Intercom working current	<100mA
Input voltage	Plug into 110VAC power or insert 4 cells of R6P size AA 1.5V (alkaline) into the cabinet of both the talkback pair.
