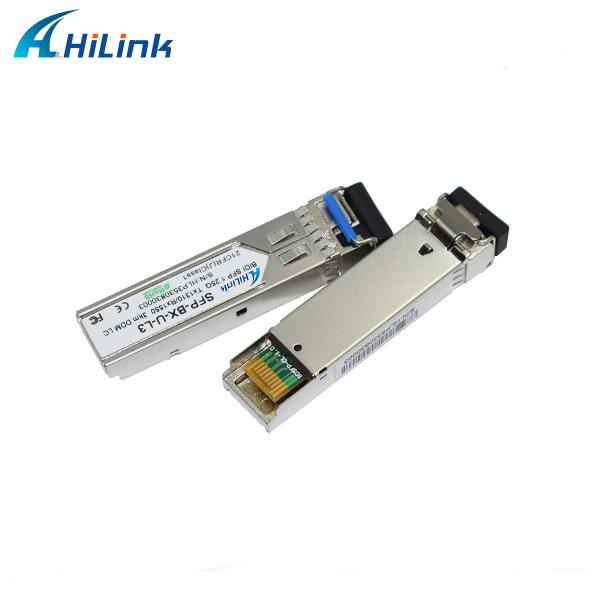

BIDI 1.25G SFP 3KM SC/LC Simplex DDM WDM Transceiver Modules

Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.

Features

• Hot-pluggable SFP footprint

• Wavelengths : 35/53 : Tx1310nm/Rx1550nm ; Tx1550nm/Rx1310nm

• Single LC/SC receptacle optical interface compliant

• 1310nm FP laser transmitter

• RoHS compliant and Lead Free

• Up to 3km on 9/125um SMF

• Metal enclosure for lower EMI

• Single 3.3V power supply

• Low power dissipation <600MW

• Commercial operating temperature range: 0°C to 70°C

Details

Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)

1. Notes:

2. 1. Class 1 Laser Safety.
   2. Also specified to meet curves in FC-PI-2 Rev. 10.0 Figure 18, which allow trade-off between wavelength, spectral
   width.
   3. Equivalent extinction ratio specification for Fibre Channel. Allows smaller ER at higher average power.
   4. Unfiltered, 20-80%. Complies with IEEE 802.3 (Gig. E) and FC 1x eye masks when filtered.
   5. Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
   6. Measured with conformance signals defined in FC-PI-2 Rev. 10.0 specifications.
   7. Measured with PRBS 27-1 at 10-12 BER .

* Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Applications

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
