Carbon Cut To Length Production Line High Speed 80m/Min

High speed 80m/min cut to length production line

High speed 80m/min cut to length production line is designed for those who want to do the shearing in batch and fast production. The machine working speed can reach 80m/min using the servo tracking shearing system.

Also to make sure the leveling accuracy, we use the 4 layers leveling, one hand it can make sure the leveling speed and then it can make sure the leveling accuracy.

The following parts, we will share more information of each part.

High speed 80m/min cut to length production line working flow:

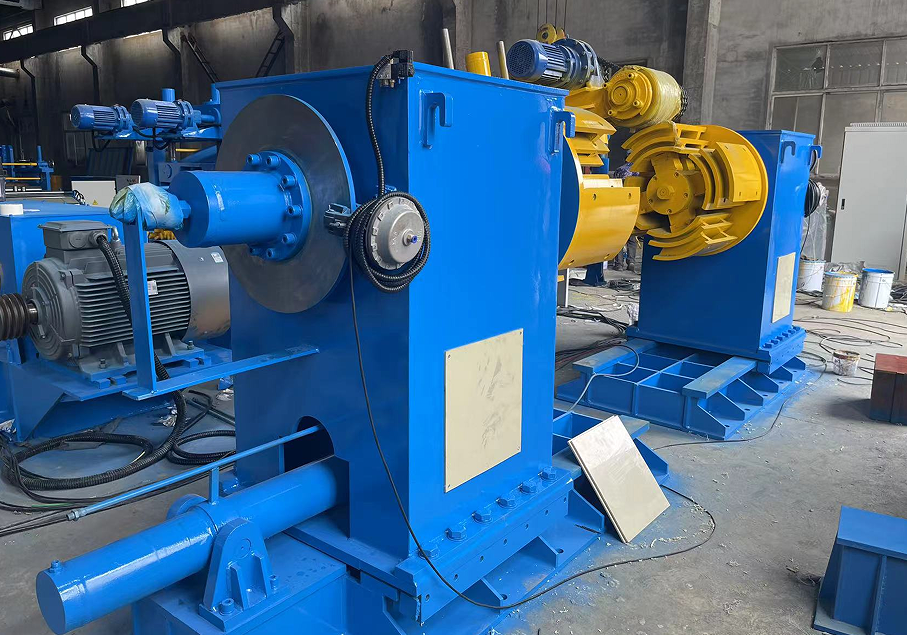

Decoiler

For the decoiler part, you can choose the single head decoiler or double head decoiler according to the weight of the coil you buy from the market:

◆It is controlled by servo electromotor and used to regulate for high speed feed and precise length control

◆The operation is done at the control table with programmable control.

◆Drive model: 15KW Servo motor drives the cutter move forward and backward.

◆Shear model: cut from up to down by 7.5KW motor which is cooperate with the signal direct and shear automatically

◆Automatic control the shearing

◆2pcs Linear guide length 2.5m , The guide screw is 80mm diameter.

◆Function: it can accurate shear coordinated with whole line control, and With the servo feeding and the cutting settings, it can achieve seamless cooperation with the shearing time, and achive the purpose of high-speed shearing.

Here is the machine working videos for your reference.
