7 Inch Touchscreen Display Monitor 50 Pin 8 Bit MCU I2C TFT Capacitive Touchscreen

7 Inch Touchscreen Display Monitor 50 Pin 8 Bit Mcu I2c Tft Lcd With Capacitive Touch Panel

1. Specification of Touch Screen Display Module

2. Description of touch screen display panel

CH700WV01E-CTD is a 7 inch 800*3(RGB)*480 Capacitive touch screen display module, which mainly includes an lcd panel, a driver IC, a ctp, a backlight and an FPC. The lcd panel adopts Transmissive/Normally white display mode and has a viewing angle of 12 o'clock. The control IC is mounted on the glass, and the display screen can display 16M colors by inputting RGB signals to the IC. The shape and structure of FPC can be redesigned according to customer needs.

In addition, we have rich experience in integrating touch screen display module with special cover plate, if CH700WV01E-CTD does not meet your requirements, we can provide a suitable solution for you according to your project.

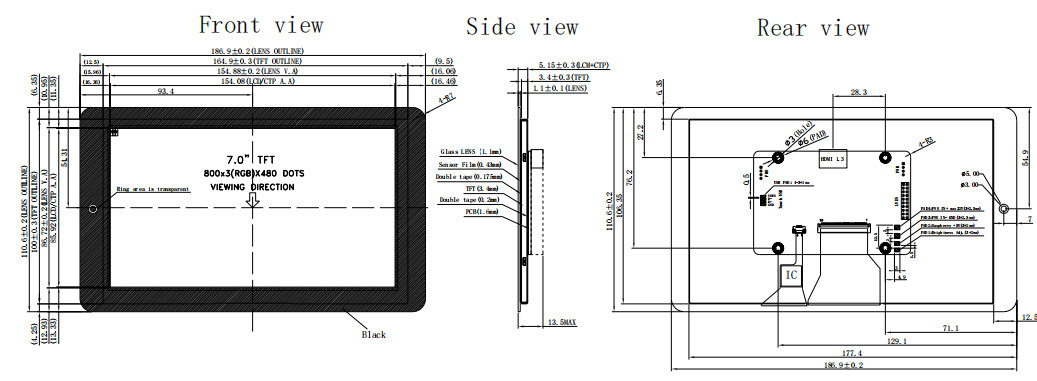

3. Drawings of capacitive touch screen monitor

Notes:
(1) Display Type : TFT LCD Panel + CTP
(2) Viewing Direction : 12:00
(4) Polarizer Mode : TN / Transmissive / Normally white
(5) Operating Temp : -20 ~ +70 ℃
(6) Storage Temp : -30 ~ +80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Application of capacitive touch screen panel

5. Why Choose Us ?

(1) We provide at least one year's product warranty service for all cooperative customers' orders, please consult our online customer service for details;

(2) All our products have undergone strict quality inspection procedures such as power-on test/mirror inspection before leaving the factory, which ensures that our defective rate is reduced by less than 0.3%.

(3) If the customer needs, we can provide free CE/ROHS and other certification services for cooperative products;

(4) Each of our TFT lcd Modules has a small amount of stock. If you need samples, you can ask for them from our customer service. We can refund you the sample fee when you establish cooperation with us in the later stage.
