W01-358-7451 Firestone Single Convoluted Air Bag Bellow Type 1B7451 Air Spring

W01-358-7451 Firestone Single Convoluted Air bag Bellow Type 1B7451 Air Spring

Product Information

Manufacturer:Firestone Industrial Products

Manufacturer Part Number:W01-358-7451,W013587451

• Single Convolution Air Spring
• Natural Bellows
• Blind Nuts
• 1/4 NPTF Air Inlet

Firestone W01-358-7451 Air Spring Technical Data

Temperature Range【MIN】: -37℃

Bellows O.D.【MAX】:205mm

Convoluted:Single

Air Inlet Type:NPTF

Air Inlet :1/4 N.P.T.F

Top Cover Plate Diameter:115mm

Bottom Cover Plate Diameter:115mm

Screw Center Distance of Top Cover Plate:44.5mm

Screw Center Distance of Bottom Cover Plate:44.5mm

Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Bottom Cover Plate Screw(Nut) Tooth:2X3/8-16UNC

The Working Stroke:50mm ~140mm

Description

Firestone air springs are time-proven industrial actuators and vibration isolators. As an actuator, air springs offer a unique ability to provide linear or angular motion in a very low profile when compared to air cylinders. Their unique, flexible properties lend well to numerous duties on machines that press, tension, roll, convey, lift and package. As an isolator, air springs are effective in reducing the harmful effects of vibration.

Applications

Industrial actuator
Vibration isolator
Press machines
Conveyors
Lifts
Packaging machines

Features
Two-ply, fabric-reinforced rubber
Flexible media
Provides linear and angular motion
Reduces harmful effects of vibration

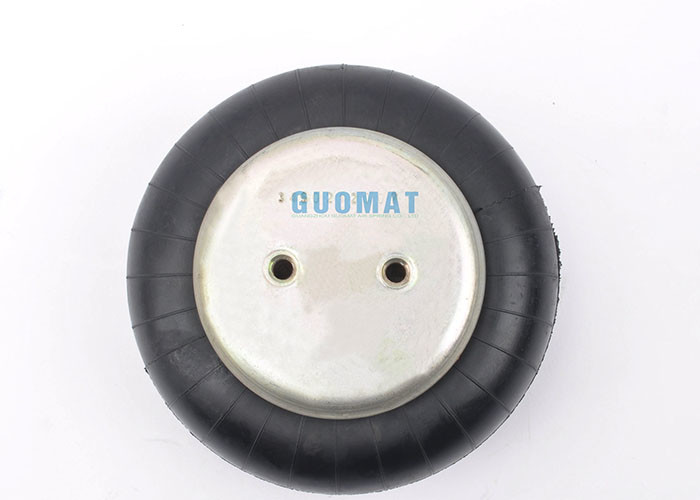

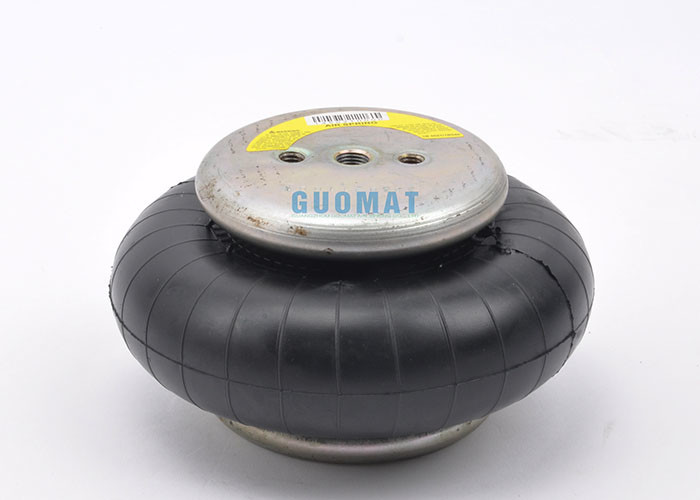

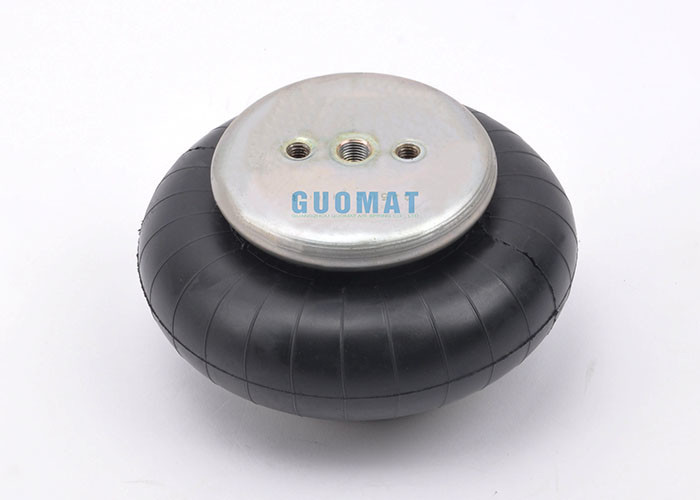

Product Image

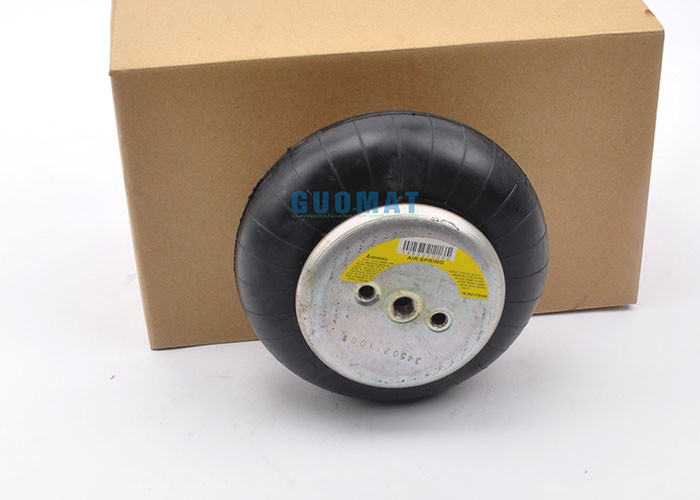

Packing Picture

Packing & Shipping

Package: According to customer requirement or neutral packing

Shipping: Guangzhou Port

Payment Term: L/C,T/T ,Western Union,Paypal

Delivery Time: About 2~8 working days after receive your payment
