Load Cell 643B 250klb Stainless Steel Double Shear Beam weight force sensor for truck scale weighbridge 3.0mV/V

Categories Shear Beam Load Cell
Brand Name: Innovation
Model Number: 643B
Place of Origin: China
MOQ: 10pcs
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Packaging Details: carton
Rated capacities(Emax): 5Klb to 250klb
Sensitivity: 3.0± 0.1%mV/V
Material: alloy steel,stainless steel available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Load Cell 643B 250klb Stainless Steel Double Shear Beam weight force sensor for truck scale weighbridge 3.0mV/V

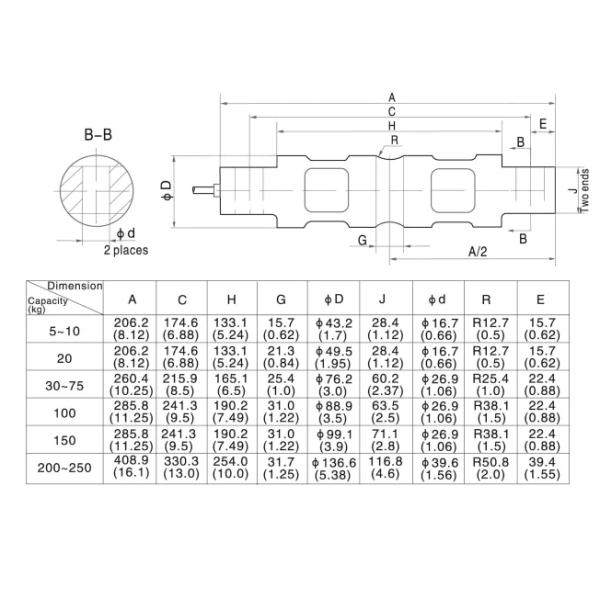

643B 5Klb To 250klb Double Ended Load Cell


643B 5Klb To 250klb Double Ended Load Cell Alloy steel,Stainless steel For Truck Scale


643B weighing load cell mainly be used on truck scale, has sveral capacities to choose, in the past tens of years, we established very good relationship with wide range of suppliers and customers in weighing products especially in packing industry and also investigated in our own factories of weighing, step by step, we get our own special advantages in this market: more accuracy and more economic weighing solution for you!


If you have any weighing problem especially in packing industry, contact us, we are confident to provide you a suitable and economic Solution!



Rated capacity (Emax)Klb5/10/20/30/40/50/60/75/100/150/200/250
Accuracy class C3
SensitivitymV/V3.0± 0.1%
Zero balancemV/V0.01
Creep over 30min%0.02
Temperature effect on zero%/0.004
Temperature effect on output%/0.0014
Hysteresis%0.017
Linearity deviation%0.017
Repeatability%0.017
Nominal temperature range -10 to +40
Service temperature range -30 to +70
Limit load% of R.C.120
Break load% of R.C.150
Nominal excitationV5
Max. excitationV12
Input impedance 700± 7
Output impedance 703± 4
Insulation resistanceM>5000
Cable lengthM6
Cable type 4 conductors, Braid Shielded, Black PVC Jacket
Color code +Exc -Red, +Sig -Grn, -Exc-Blk, -Sig- Wht

Install application:

Quality Load Cell 643B 250klb Stainless Steel Double Shear Beam weight force sensor for truck scale weighbridge 3.0mV/V for sale
