2.8 Inch IPS LCD Display 240x320 Tft Colour LCD Display Module With JD9852

2.8 Inch IPS LCD Display 240x320 Tft Colour Lcd Display Module With JD9852

1. Specification of Small Tft Monitor

2. Description of Tft Color Monitor

ChengHao Display model CH280QV33A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 2.8 (portrait) inch diagonally measured active display area with 240(RGB)*320 Dot resolution . JD9852 is used as a control IC for CH280QV33A and is mounted on the glass of TFT Lcd Module. This Lcd Module passes MIPI The interface inputs RGB signal to display 262K/65K color, and uses 4 white LEDs to make the backlight brightness up to 300 nits.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and interface definition, etc.
RoHS Compliance & Halogen Free.

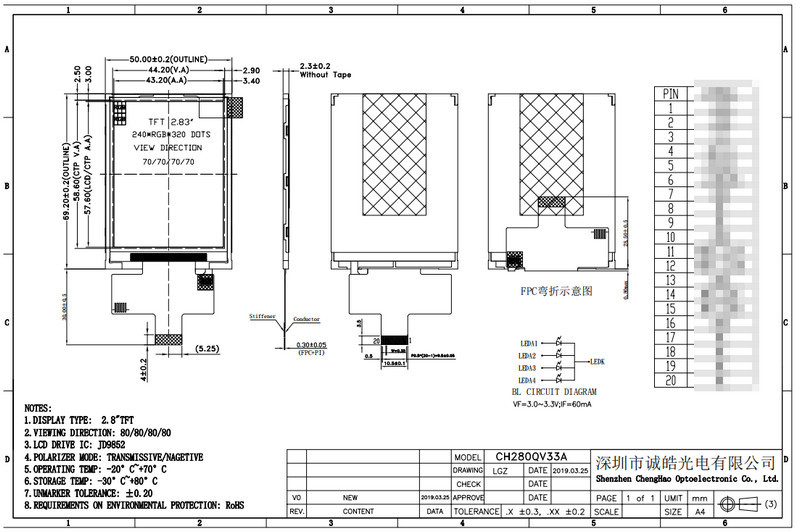

3. Drawings of Tft Lcd Monitor

Notes:
(1) Display Type : 2.8"TFT
(2) Viewing Direction : 70/70/70/70
(3) Lcd Drive IC : JD9852
(4) Polarizer Mode : IPS / Transmission / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail of Tft Lcd Module

* LCD name: 2.8 Inch IPS LCD Display 240x320 Tft Colour Lcd Display Module With JD9852
* Part No.: CH280QV33A
* Size.: 2.8 inch
* With touch panel or not: No
* Support Touch type: Capacitive / Resistive Touch Panle
* Display type: TFT
* Display colors: 65K / 262K
* Resolution (pixels): 240(RGB)*320
* Viewing direction: 70/70/70/70
* Controller IC: JD9852
* Display mode: IPS/Transmissive/ Normally Black
* Overall size: 50.0(W)*69.2(H)*2.35(T)mm
* Active Area: 43.2(W)*57.6(H) mm
* Luminance: 300 cd/m2
* Contrast: 800:1
* Interface type: MIPI
* Pin NO.: 20 pins
* Pin pitch: 0.35 mm
* Connecting type: Connector
* Backlight type : 4 LED parallel
If=60mA, Vf =3.0~3.3V
* LED Life span: 20000h

5. Application of Tft Lcd Screen

Products are widely used in general communications, household appliances, industrial control, medical equipment, POS machines,instruments, meters, GPS navigation, digital photo frames, netbooks, financial electronics, communication electronics, consumer electronics, information appliances, culture, education, sports and entertainment, etc. field. Such as attendance machine,fingerprint device, access control machine, stock machine, walkie-talkie, video doorbell, learning machine, point reading machine,GPS navigator, and so on .

6. Our Advantage

1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.
4. The warranty period of the product is 12 months.
