Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held

Categories Rock Drilling Machine
Brand Name: MTH
Model Number: YT29A
Certification: ISO 9001
Place of Origin: CHINA
MOQ: 1 set
Price: Negotiable
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000 pieces per month
Delivery Time: 10-15 days
Packaging Details: wooden case or carton box
Type: YT29A
Weight: 26.5kg
Warranty: 1YAER
Usage: Ore,mining used,Rock drilling
Diameter: 32~45 mm
Power type: pneumatic
Machine Type: Drilling Tools
Drilling depth: 5M
Color: Yellow,green,black
Application: blast hole drilling and breaking,drill rig
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

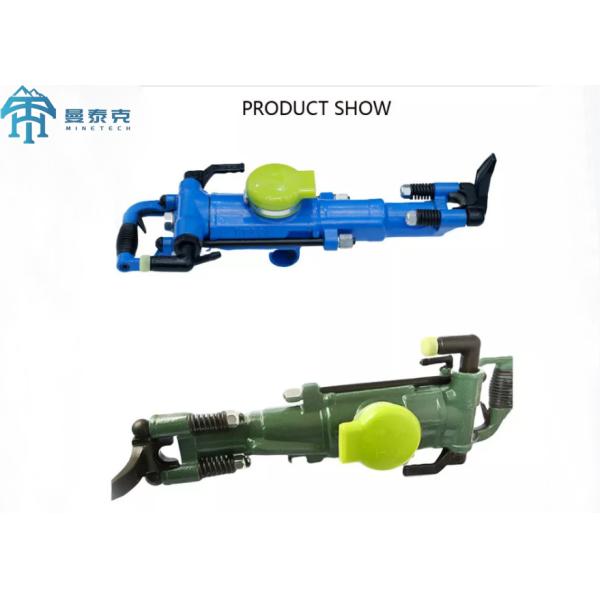

Pneumatic Jack Leg Drilling Machine Rock Yt29a 5m Hand Held


Pneumatic Jack leg Rock Drill , YT29A 5m Hand Held Rock Drill


Applications:

1.YT29A type pneumatic rock drill for drilling in the hard rock horizontal and inclined direction hole, can also be up drilling anchor hole, hole is Φ 35 ~ 45 mm in diameter, and effective drilling depth of 5 meters.
2.Depending on the roadway cross-section size and operation conditions, the machine can be used FT160A gas legs, long FT160C type gas type, FT160B dispirited legs (metal mines can also be used FT170 gas leg), can also be installed in jumbo or drill the rack to dry and wet drilling.


YT29A AIR LEG ROCK DRILL
Weight27 kg
External Dimensions(L W H)659x248x205 mm
Cylinder Diameter82 mm
Piston Structure Stroke60 mm
Working Air Pressure0.4~0.63 MPa
Impact Frequency≥39 Hz
Impact energy≥78 J
Air Consumption≤88 L/s
Rotation Torque≥20 N.m
Water Pressure0.3~0.48 MPa
Air Pipe Inner Diameter25 mm
Water Pipe Inner Diameter13 mm
Drilling Hole Diameter34~45 mm
Drilling Hole Depth5 m
Working Temperature-30~45℃
Shank SizeH22x108±1 mm





























FT160AFT160BFT160CFT170
Weight17 kg16 kg18 kg18 kg
Length1668 mm1428 mm1820 mm1668 mm
Propulsion Stroke1338 mm1098 mm1490 mm1338 mm
Cylinder Inner Diameter65 mm65 mm65 mm67 mm



Company Profile:

Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.

With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.

Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
