50t Rubber Tile Making Machine Rubber Floor Brick Vulcanizing Machine

Categories	Rubber Tile Making Machine
Brand Name:	HHS
Model Number:	XLB-550X550X4
Certification:	CE/ISO
Place of Origin:	CHINA
MOQ:	1 set
Price:	USD:4000-20000 /SET
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/month
Packaging Details:	wood package/20-40 gp
Heating Platen Size:	550X550*4
Mold Closing ForceF:	500T
Plate Clearance:	150-300mm
Working Layers:	1
Motor Power:	5.5/7.5KW
Weight:	3600KG
Type:	Vulcanizer,tile Machine
Color:	blue,Customizable
Power source:	Hydraulic
Usage:	rubber tile from waste tyre granule, glue, colour
Keyword:	tile vulcanizing press

Contact Now

Add to Cart

Company Info.

Qingdao Honghesheng Industry Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

50t Rubber Tile Making Machine Rubber Floor Brick Vulcanizing Machine

50T Rubber Tile Making Machine/Rubber Floor Brick Making Machine/Vulcanizing Machine

Applicable Industries

Hotels, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Printing Shops, Construction works , Other, Advertising Company.

Rubber Tiles Making Line Machines

1. Rubber Mixer

Purpose:it is mainly used to mixing rubber granules,pigment and glue.Diameter :850 mm
Depth:320 mm
Motor power:2.2 kw
Production capacity :180 L/ batch
Quantity:1 set

Rubber mixer

2. Barrel Mixer

Motor power:3 kw
input :rubber granules (powder),pigment. output :mixture of all input
capacity:50L/batch
Feature:4 barrel can used to mix different colours.

3. Rubber Tiles Vulcanizing Machine

Model:XLB 550*550*4

Total pressure:0.50(50 tons)mn

Hot plate size:550*550*60 mm

Plate clearance:150 mm

Working layer:4 layer

Hot plate quantity:5 piece

Piston quantity: 1 set

Structure mode: 4 columns

Operation system: manual operation

Working pressure:1.65 (16.5kg/cm*cm)

Motor power:2.2 kw

Production Capacity (Pieces/8 hours): other, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 800 pcs/8hours

Making brick size:400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 200*200*60 mm, 150*150*100 mm, Other

(We can make non-standard machine according to customer's requirement. )

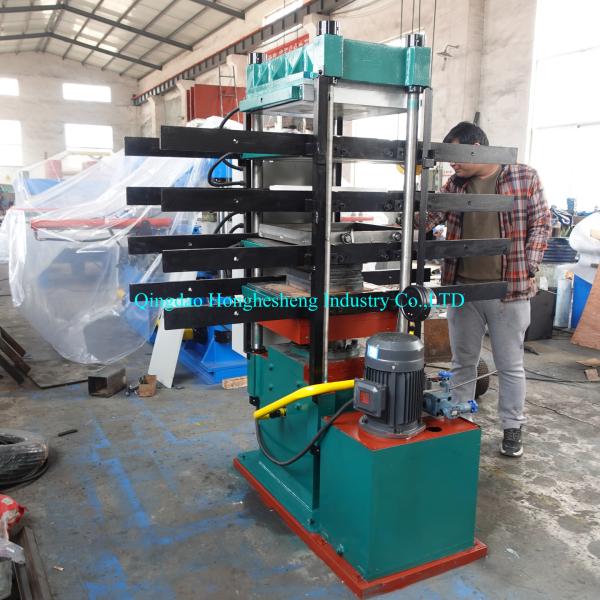

50T Vulacanizing Machine Pictures

Note:

1--The vulcanizing machine is mainly used to produce rubber tile,each working layer equipped with two sets molds,it can take turn vulcanization.Thereby improve production efficiency.

2--the machine has automatic fill pressure,alarm and curing time ETC.

3--production capacity:it will make about 32-40SQM of rubber tiles in 8 hours

4.Rubber Tile Molds

Overall size:550*550*55 mm

Working size:200*160*25 mm;6 caves

Quantity:4 sets

Note:each set mold including one top mold and two below molds.

XLB-550*550*4/50t
