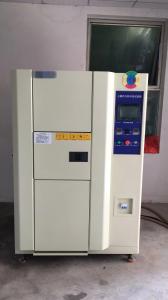

27 Liters Small Size Thermal Shock Test Chamber -40C~+150C Three Zone Type

27 Liters Small Size Thermal Shock Test Chamber -40C~-150C Three Zone Type

Working principle

The high temperature box and the low temperature box can be set to more extreme temperature conditions than the test temperature in the ready state. During the low temperature box test, the low temperature box door is opened and the test box forms a test work space for low temperature test. When switching to the high temperature test, the low temperature box door is closed. , the high temperature box is opened and the test box forms a new test working space. The mechanical action of the conversion can be completed in less than 10s, and the temperature can be stabilized quickly without human intervention.

Product Advantages

The small temperature shock test chamber is no different from conventional equipment in function and performance. However, It is smaller in size, lower in power consumption, lower in use cost ,more cost-effective in maintenance , and more favorable in purchase price. Those are all advantages that conventional equipment (with standard volume 100~1000L) don't have.

Equipment size

Effective volume: 27L
Inner box size: W300mm*H300mm*D300mm (width*height*depth)
Outer box size:W960mm*H1560mm*D1100mm (width*height*depth)

Technical performance:

Precooling box temperature: 0～-65℃
Preheating box temperature: +60～+180℃
Cooling rate of pre-cooling box: +20～-65℃ for about 70 minutes
Preheating box heating rate: +20～180℃ for about 50 minutes.
Test box temperature: -40～150℃
Temperature reset time: ≤±5min
Temperature conversion time: ≤10S
High and low temperature exposure time: 30min
Temperature fluctuation: ≤±0.5℃
Temperature deviation: ≤±2℃
Temperature uniformity: ≤±2℃
Overshoot of heating and cooling: ≤±3℃

Equipment weight: 560KG
Maximum power: 9KW

Meet the test Standards:

GB2423.1-2008 (IEC68-2-1) Test A: Low temperature test method
GB2423.2-2008 (IEC68-2-2) Test B: High Temperature Test Method
GB/T2423.22-2008 Test N: Test method for temperature change
GJB150.3A-2009 (MIL-STD-810D) high temperature test method
GJB150.4A-2009 (MIL-STD-810D) low temperature test method
GJB/150.5-2009 Temperature shock test
