Categories | Dimmable Motion Sensor |
---|---|
Brand Name: | Hynall |
Model Number: | HNS117RF |
Certification: | RED, FCC, RoHS, ETL |
Place of Origin: | Shenzhen, China |
MOQ: | 300pcs |
Price: | To be negotiated |
Payment Terms: | T/T |
Supply Ability: | 30,000pcs / month |
Delivery Time: | 3~4 weeks for bulk orders |
Packaging Details: | Bubble bag + carton. (color box or blister package also available on request) |
Input voltage: | Standard 12V DC, Customized version 24V DC |
RF frequency:: | Two options 915MHz / 868MHz |
RF transmission distance: | in open area max. 50m |
IP rating: | IP20 |
Usage: | car parking, hotel, corridor etc. |
Product name: | dimmable motion sensor |
Warranty: | 5 years |
Size: | 73.1*33*15.6mm |
Company Info. |
Hynall Intelligent Control Co. Ltd |
Verified Supplier |
View Contact Details |
Product List |
Model name: HNS117RF Low voltage dimmable motion sensor

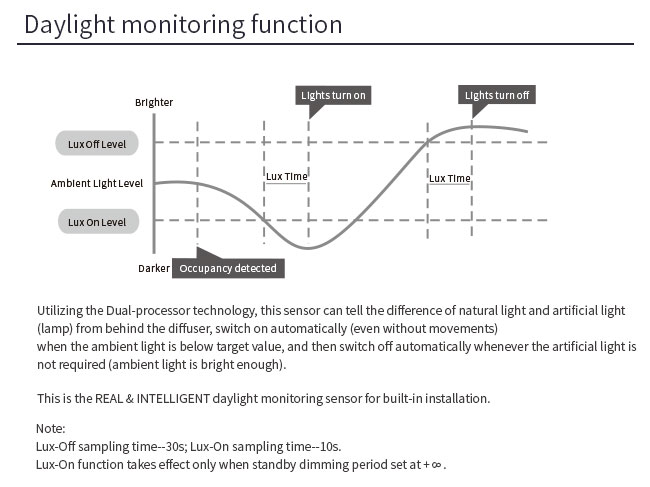

This model is a multiple-function sensor, and 3 in 1 including 5.8G microwave motion sensor, daylight sensor and tunable white CCT adjustment.
Advantage:
1. Tunable white, RF wireless grouping, 0-10v dimming and daylight
monitoring
2. RF wireless grouping setting: Easy setting by DIP switch;
Intelligent grouping by RC remote control
3. CCT adjustment: DIP switch setting, and warm, White, Cool three
options
4. Customized service: Yes

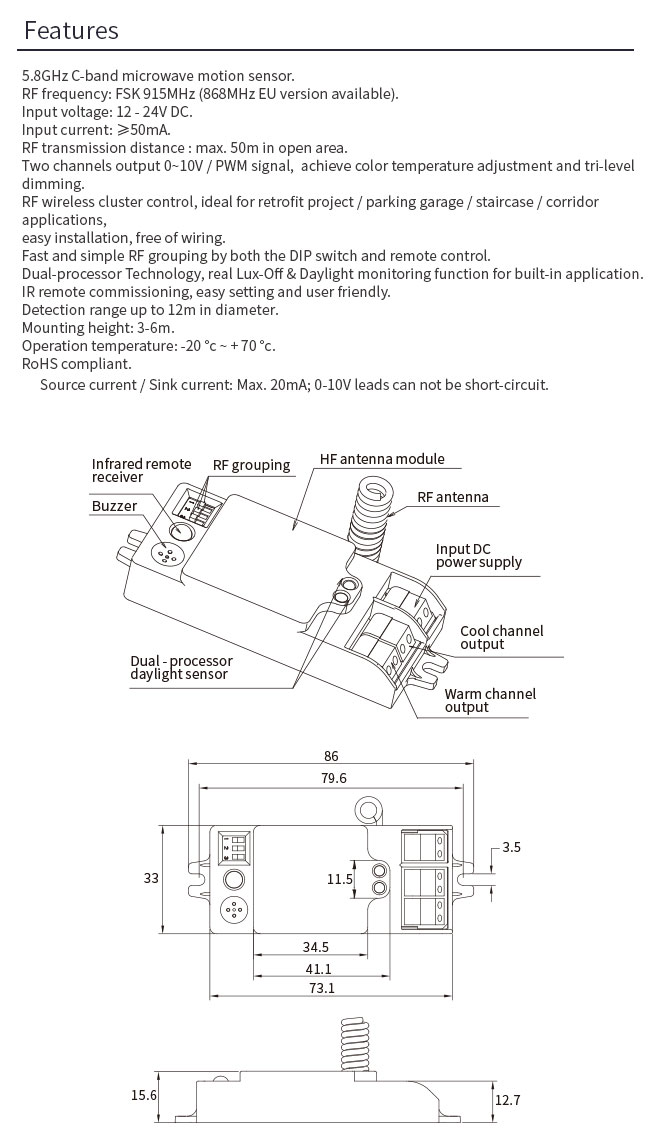

Product information:
Input voltage:12V DC ; Input current: more than 50mA |

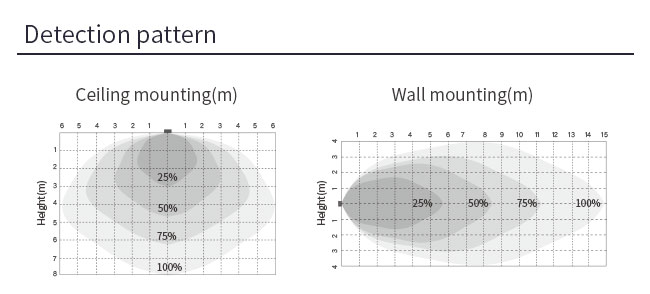

Detection range for ceiling mounting: max. 12m in diameter; Mounting height: Up to 6m |
RF transmission distance : in open area max. 50m; Output: 0-10v dimming |

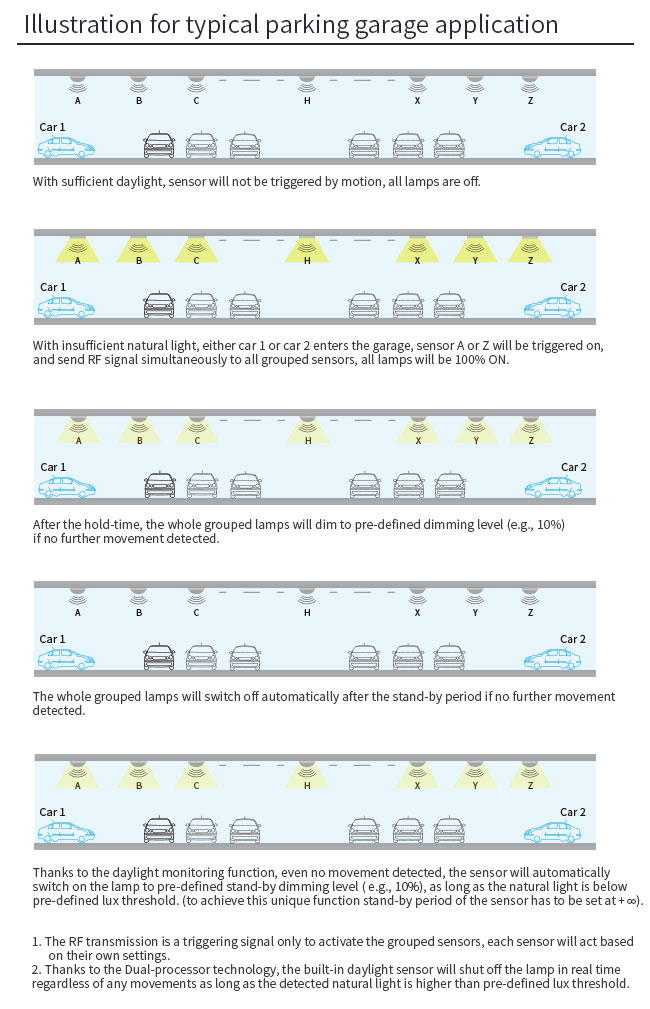

Ideal for retrofit project / parking garage / staircase / corridor applications |
Color temperature adjustment: Warm, White, Cool by DIP switch setting |
IP rating: IP20 |
Application:
Company:
![]() |
