3000m3/h Hot Sale High Efficiency Desiccant Dehumidifier Industrial Air Dryer

Categories Food Industry Desiccant Dehumidifier
Brand Name: FOUDANCE
Model Number: ZCS-3000
Certification: CE,ISO
Place of Origin: China
MOQ: 1 set
Payment Terms: L/C, T/T
Supply Ability: 10000sets/year
Delivery Time: 45-60working days
Packaging Details: Wooden Case
Voltage: 380V/50Hz/3Phase
Condition: New
Warranty: 1 Year
Function: Dehumidification
Application: Industrial Air Drying
Product name: Desiccant Dehumidifier
Packing: Standard export package
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

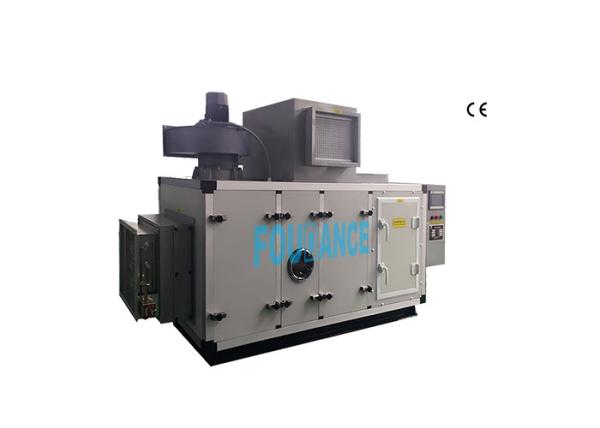

3000m3/h Hot Sale High Efficiency Desiccant Dehumidifier Industrial Air Dryer

3000m3/h Small Hot Sale High Efficiency Desiccant Dehumidifier Industrial Air Dryer


ZCS Series Desiccant Dehumidifier is used to remove water vapor from air thereby lowering the humidity of the air. It helps you to control the humidity in certain place by the dehumidification of a desiccant rotor.

Main Parameters:

ModelZCS-3000
Process Airflow(m3/h)3000
Reactivation Airflow(m3/h)1000
Rated Dehumidification Capacity(kg/h)23.8
Reactivation Heating Power(kw)21
Process Fan Power(kw)2.2
Reactivation Fan Power(kw)1.1
Driving Motor Power(kw)0.09
Installed Power(kw)24.39
Overall Dimension(mm)2600*940*1590
Weight (kg)550
Power Supply380V/3P/50Hz

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.


Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

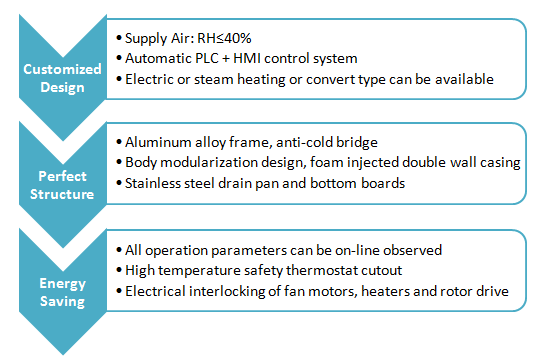

Features:

Our Advantages:

User Friendly Human-Interface:


Our customers:
