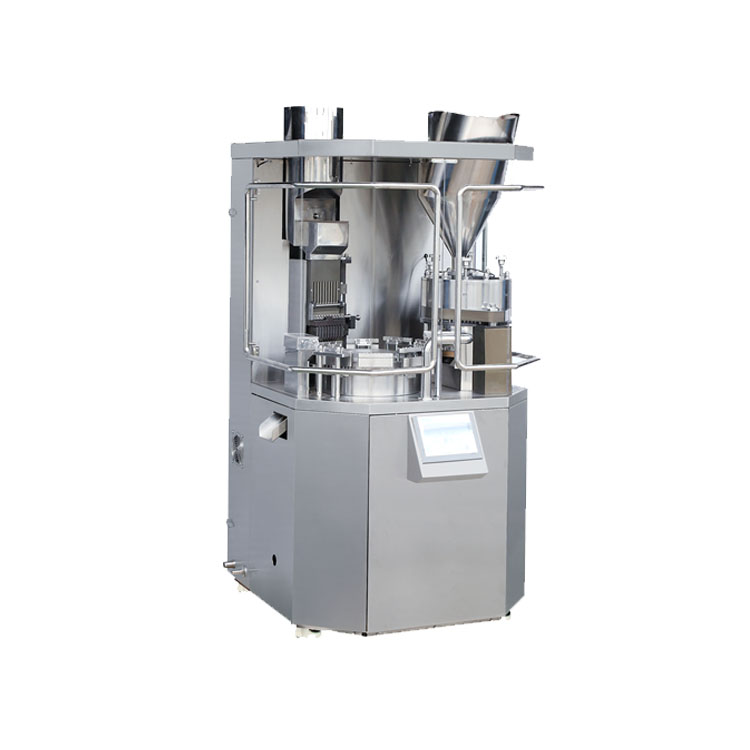

PLC Control Fully Automatic Capsule Filling Machine

PLC Control Fully Automatic Capsule Filling Machine

Products Description of Capsule Filling Machine

The machine has the closed rotating disc with ten stations, with feature of high precision and low noise. It can be continuously running and adopts frequency control, includes the whole capsule filling process such as capsule feeding, separating, powder

and granules filling, waste capsules rejecting, capsule locking and finished capsule outputting. The machine main parts of the bearing and electrical equipment from international famous brand, has a stable performance and can be run at a high speed.

Detailed Parameters of Capsule Filling Machine

Working Principle of Capsule Filling Machine

The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:

1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering

disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug are used to make the capsule cap upward and

the capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.

2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it

enters into the capsule rejection, capsule locking, finished capsule discharge, and module cleaning stations in turn, and then enters a new round of station cycle, and the cycle begins again and again.

Feature of Capsule Filling Machine

1. The automatic capsule filling machine has beautiful appearance, fine craftsmanship, simple operation and convenient use;

2. The filling seat and the metering disc are integrated, so that the metering disc and the filling rod will not be offset, avoiding the friction between the filling rod and the metering disc, improving the filling accuracy and prolonging the service life;

3. The fully automatic capsule filling function can automatically remove defective capsules, recover the drugs in defective capsules, and reuse them to improve economic benefits;

4. The automatic capsule filling machine is simple and convenient to disassemble and clean, and can exchange various types of molds, and various molds can be exchanged and used on the same machine to meet the requirements of different production capacities;

5. The vacuuming, vacuuming habits and exhaust pipe are designed inside the body to avoid the phenomenon of hardening, breaking and air leakage of the trachea, which is convenient for the work surface to be clear and meets the requirements of GMP;

6. The filling rod nut is made of stainless steel instead of the original plastic nut to avoid cracking; the working table has fewer screws and nuts, which is easy to clean and makes the whole machine more beautiful.

Products Show of Capsule Filling Machine

Application of Capsule Filling Machine
