Huawei 24 Port Ethernet 4 10G SFP+ Standard Gigabit Access S5731-S24P4X Switch

Categories Huawei Network Switches
Brand Name: Huawei
Model Number: S5731-S24P4X
Certification: CE FCC
Place of Origin: China
Product Part Number: 02352SVD
Description: 24*10/100/1000BASE-T ports 4*10GE SFP+ ports
Subtype: 100 Gigabit Ethernet
Communication Mode: Full-Duplex & Half-Duplex
Transmission Rate: 10/100/1000Mbps
Device Type: Switch - 24 Ports - Managed
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Huawei 24 Port Ethernet 4 10G SFP+ Standard Gigabit Access S5731-S24P4X Switch

Huawei 24 Port Ethernet 4 10G SFP+ Standard Gigabit Access S5731-S24P4X Switch

Technical specifications

Item

Description

Memory (RAM)2 GB
Flash1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)57.21 years
Mean time to repair (MTTR)2 hours
Availability> 0.99999
Service port surge protectionCommon mode: ±6 kV
Power supply surge protection
  • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)8.6 kg (18.96 lb)
Stack ports10GE SFP+ ports on the front panel
RTCSupported
RPSNot supported
PoESupported
Rated voltage range
  • AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz
  • High-Voltage DC input: 240 V DC
  • DC input: -48 V DC to -60 V DC
Maximum voltage range
  • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
  • High-Voltage DC input: 190 V DC to 290 V DC
  • DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)
  • Not providing the PoE function: 121 W
  • 100% PoE loads: 977 W (PoE: 720 W)
Typical power consumption (30% of traffic load, tested according to ATIS standard)95 W
Operating temperature
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

Storage temperature-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)< 62.3 dB(A)
Relative humidity5% to 95%, noncondensing
Operating altitude0-5000 m (0-16404 ft.)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
Part number

02353AHX

02353AHX-001

02353AHX-002

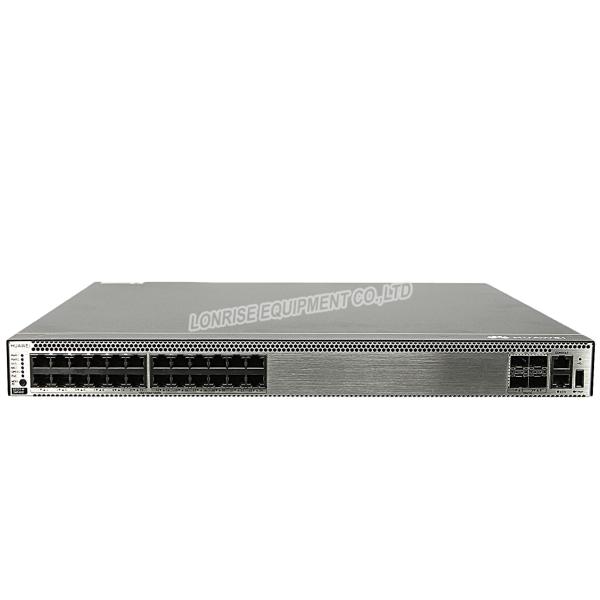

S5731-S24P4X (02353AHX-001 or 02353AHX-002) appearance
